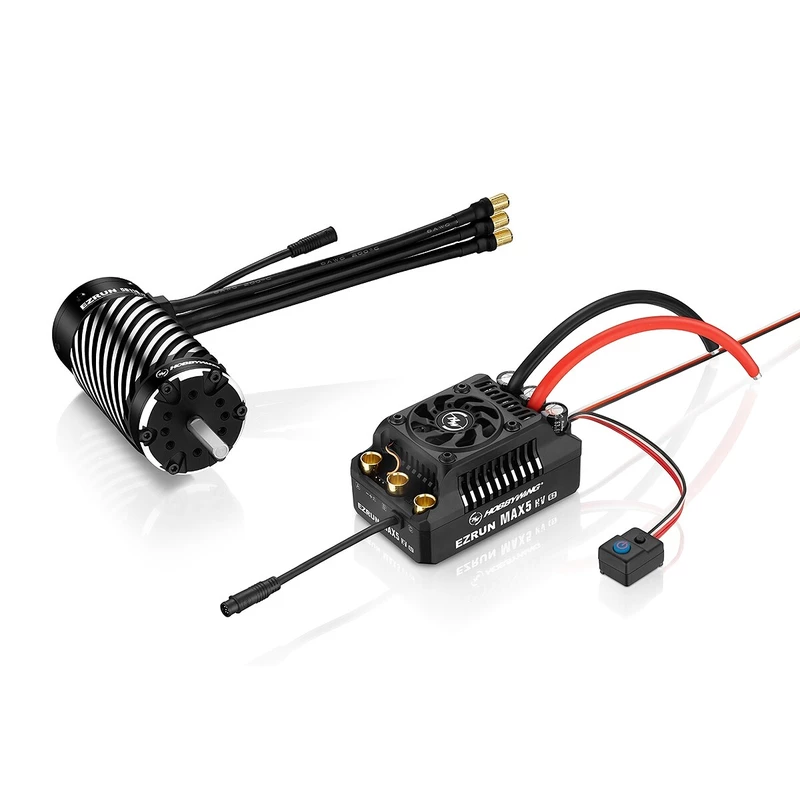

COMBO MAX5 HV G2 with EZRUN 56118SD 800Kv - black

EZRUN MAX5 HV G2 250A controller

The EZRUN MAX5 HV G2 250A ESC offers everything you need to fully exploit the potential of your 1:5 off-road RC car with a brushless motor - whether it's a buggy or a truck. It allows the use of a brushless motor with sensors (sensored) or without sensors (sensorless) and offers a wide range of 12 programmable parameters (including Turbo Timing) for perfect adaptation of the motor, chassis and track. So, if you take driving your pumped-up "fifth" seriously, the EZRUN MAX5 HV G2 ESC from Hobbywing is the right one for you!

Function

• Specially developed for 1:5 RC cars: off road buggies and trucks powered by 8-12 S LiPo
• For motors size 56118 with and without sensors (8S LiPo motor limit: KV?1200, 12S LiPo: ?800 for motor size 56118)
• Compact dimensions, low weight, patented cooling system with high efficiency
• Waterproof and dustproof design, waterproof sensor cable
• Ideal in combination with Hobbywing EZRUN 56118SD G2 motors
• 12 programmable parameters including Turbo timing (up to 32°) increasing performance by up to 25%
• Powerful switching BEC stabilizer up to 8 A with selectable voltage of 6.0 V, 7.4 V or 8.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming using the LED programming box, the multifunctional LCD programming box V2 (separately or with a PC program) or the Bluetooth OTA module (with a mobile application)
• Firmware updatable using the multifunction LCD programming box V2 or Bluetooth OTA module (sold separately)
• In combination with Hobbywing EZRUN 56118SD G2 motors, it offers motor thermal protection.

Programmable parameters

• General: Driving mode, Number of LiPo cells, Voltage protection, BEC voltage, Motor rotation direction
• Throttle control: Initial throttle value, Start-up, Max. power reverse
• Brake control: Resistance brake intensity, Max. braking effect
• Timing: Turbo Timing, Delayed Turbo Timing

Electric motor EZRUN 56118SD G2

The high-performance four-pole sensored AC electric motors of the EZRUN 56118SD G2 series are ideal for tuning RC cars such as 1:5 off-road buggies and trucks. Compared to conventional motors of this size, they offer higher power and efficiency, automatic optimization and additional functions such as motor thermal protection when used with the HOBBYWING EZRUN MAX5 HV G2 controller; they are waterproof and dustproof and, thanks to their modular design, allow for easy maintenance and repair. If you want to give your model a more powerful motor with a longer lifespan and greater adjustment options in cooperation with an intelligent controller, the EZRUN 56118SD G2 series electric motors are the right choice for you!

• The built-in chip is optimized to work with the HOBBYWING EZRUN MAX5 HV G2 controller; the controller automatically identifies the motor and creates a drive system operating in full sensor mode with excellent performance and precise control.
• Compared to the previous generation of EZ RUN motors, it uses a waterproof sensor cable and a new sensor system with better linearity and faster response.
• Highly stable power and torque curve across the entire operating speed range.
• The motor uses patented Hall sensor technology; the high-speed, high-precision encoder always provides a clean signal indicating the rotor position, which effectively suppresses possible sensor signal interference and makes the motor run more reliably.
• CNC machined aluminum alloy housing, high purity copper wire winding, advanced rotor design, 0.2mm silicon steel sheets, high quality stainless steel shaft, Kevlar wrapped rotor, precision ball bearings for high durability and smooth operation.
• Waterproof and dustproof design (meets IP67 standard): The new sensor interface design and rubber bearing caps offer better protection against water and dust than traditional sensor motors.
• Modular design for easy maintenance and repair/replacement of parts.

Combo set includes: EZRUN 56118SD G2 800KV motor, EZRUN MAX5 HV G2 controller, instructions.
