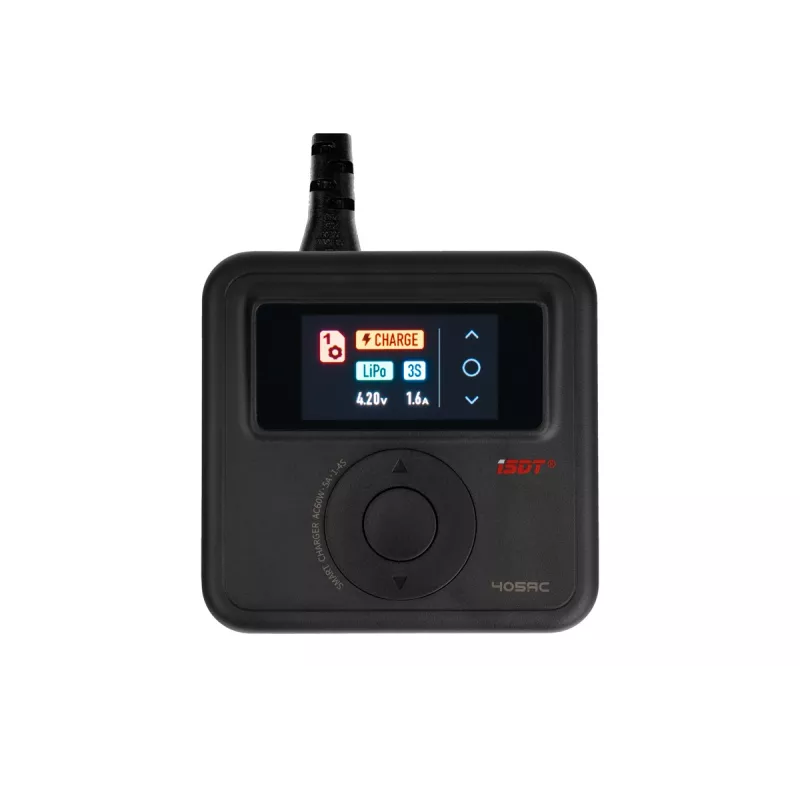

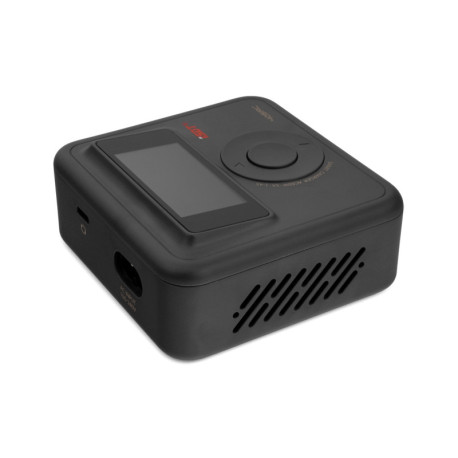

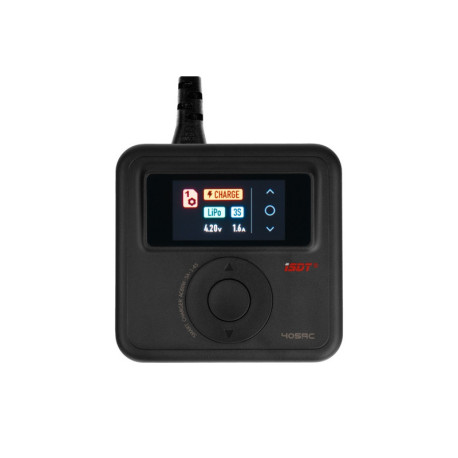

iSDT charger 405AC

The miniature charger ISDT 405AC 60W is an intelligent charger with mains power supply and very simple and clear operation. The 405AC allows you to charge and discharge common types of cells (NiMH, LiPo, LiHV/ULiHV, LiFe, Li-ion, Pb), and is also equipped with a built-in four-channel balancer that ensures safe charging of lithium batteries. The charger is equipped with a color LCD display and three programming buttons that provide you with the possibility of comfortable and clear parameter settings, control and monitoring of the charging process.

In addition to the miniature dimensions and intuitive operation, it is worth special mention:

• program for new types of "high-voltage" lithium batteries LiHV with a final charging voltage of up to 4.35 V and ULiHV with a final voltage of 4.45 V (final voltage adjustable in the range of 4.25–4.50 V)
• adjustable final charging voltage for lithium batteries (allows for gentler charging, which pilots like, or, conversely, brutal overcharging, which "car enthusiasts" love) -adjustable final charging voltage for lead-acid batteries (2.30–2.45 V/cell; allows charging of all types of lead-acid batteries)
• possibility of setting up, starting and monitoring charging via Bluetooth in the ISD Link mobile application (Android and iOS)

• Mains power supply 100-240 V/50-60 Hz
• For charging 2–12 NiMH cells, 1–4 LiPo/LiFe/Li-ion/LiHV/ULiHV cells or 2–14V lead-acid batteries
• Adjustable charging current 0.1-5.0 A (max. 60 W)
• Adjustable discharge current 0.1–1.0 A (max. 5 W)
• Ending charging using delta-peak automatics for NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method
• Three operating modes: charging, discharging (with and without balancer for lithium batteries), storage charging
• Adjustable delta-peak detection sensitivity for NiMH batteries
• Adjustable end-of-charge voltage for lithium and lead-acid batteries
• Easy firmware update via USB-C port
• Backlit color LCD display with simple and clear menu and display of parameters during charging
• Programming buttons for easy and clear settings and control of the charger
• A number of warning messages (incorrect battery type/voltage, supply voltage drop, etc.) contribute to safe operation. -Fan for forced cooling.-Compact plastic case, miniature dimensions

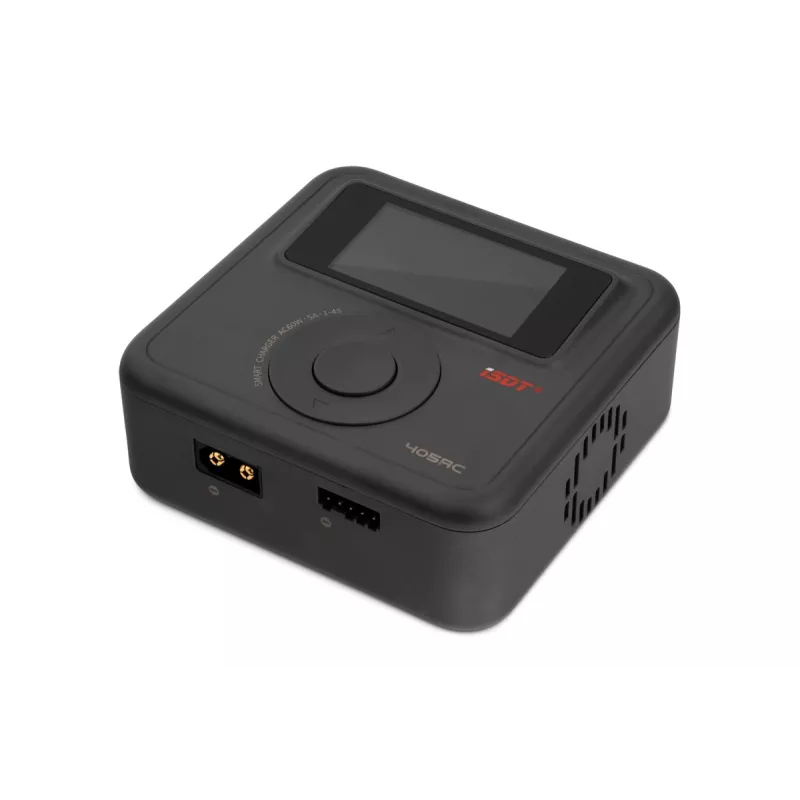

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors, allowing you to directly connect the battery power cables and JST-XH service connectors of 1-4S kits - if you use kits with XT60 and JST-XH connectors, you can do without charging cables and adapters.

The charger kit includes: ISDT 405AC charger, instructions.
