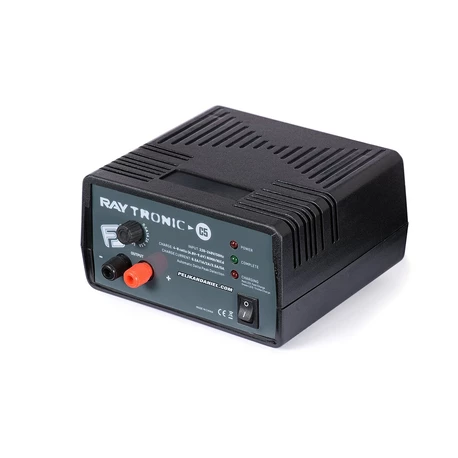

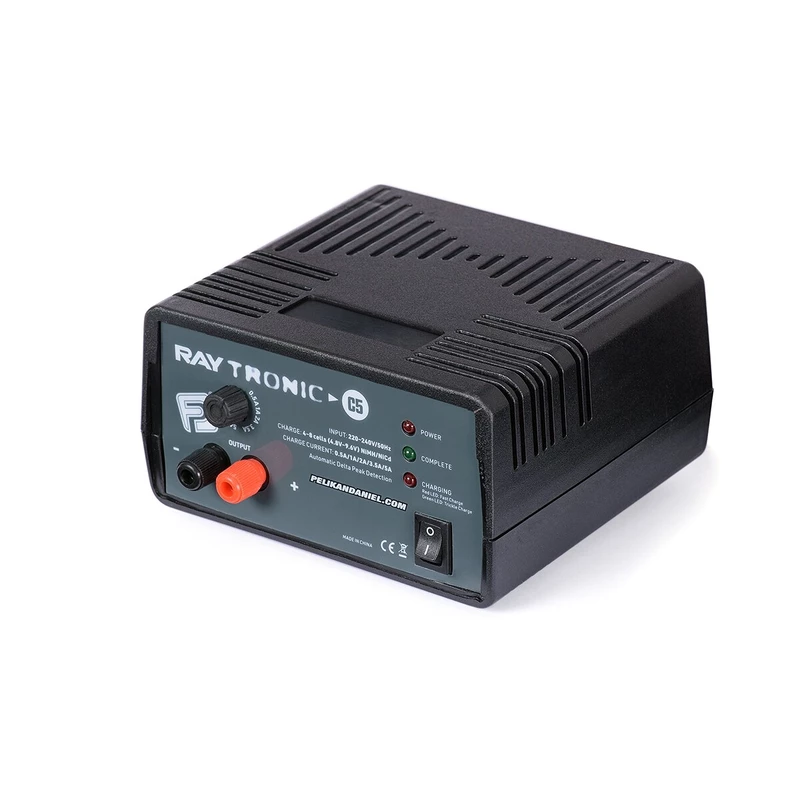

RAYTRONIC C5 NiMH / NiCd charger 5A

The Raytronic C5 charger is a very simple charger for recreational riders and pilots for charging 4-8 cells. Mains-powered NiMH batteries. It is a more powerful replacement for the "box" chargers usually supplied in RC sets of cars and boats, allowing you to charge up to 5A - if you need to. It allows easy charging without complicated settings at home as well as at the airport or by the water, if a mains socket is available. You can set the charging current to 0.5, 1, 2, 3.5 or 5 A. The operation of the charger is signaled by three LED diodes, charging is controlled automatically with delta-peak detection of the end of charging. When charging is complete, the charger switches to trickle charge with low current.

The rechargeable battery is connected using power cables connected to the charger output with standard 4 mm banana sockets, for which you can purchase a wide range of charging cables in model shops.

Basic functions

• Mains supply 230 V / 50 Hz
• For charging 4-8 NiMH cells
• Charging current switchable 0.5, 1, 2, 3.5 or 5 A
• Delta-peak end of charge detection
• Trickle charging
• The operating states of the charger are indicated by LEDs
• Output - banana sockets 4 mm
• Compact plastic case, small dimensions

The charger set contains: Raytronic C5 charger with connected mains power cable, instructions.
