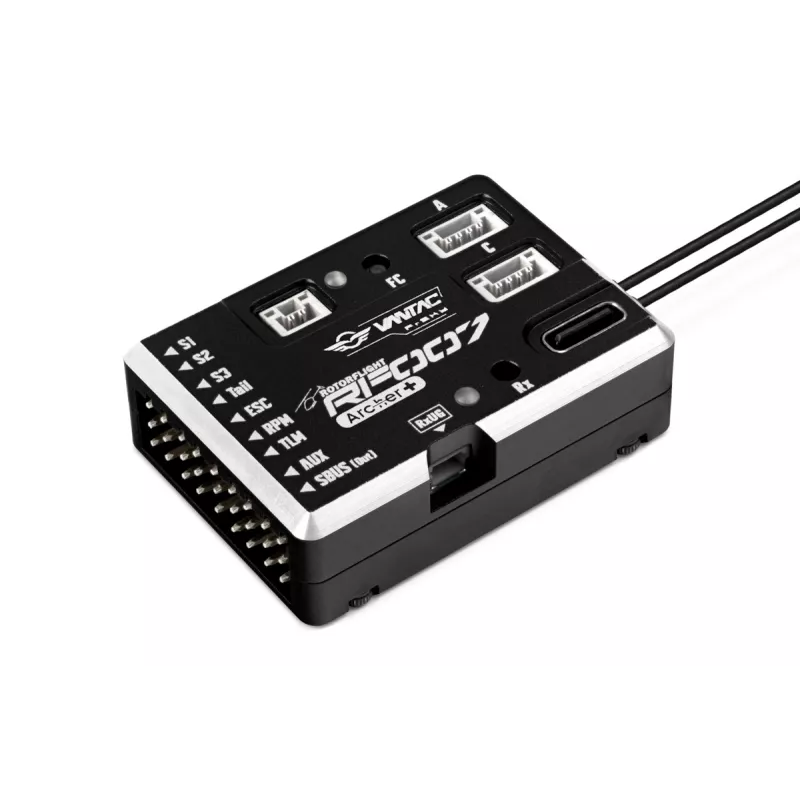

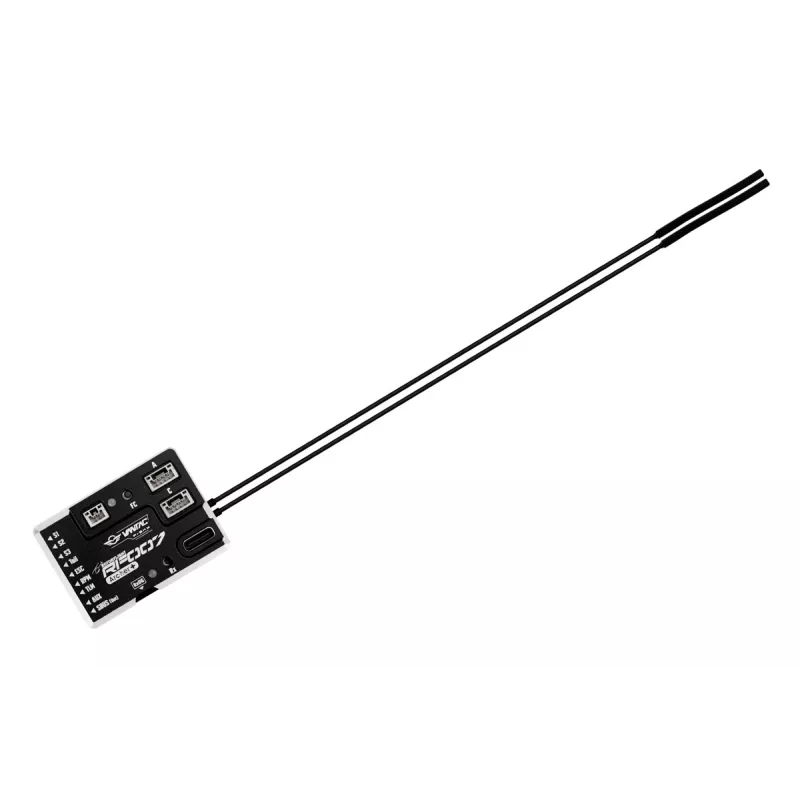

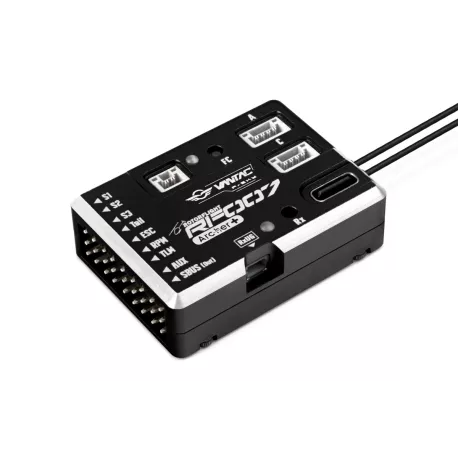

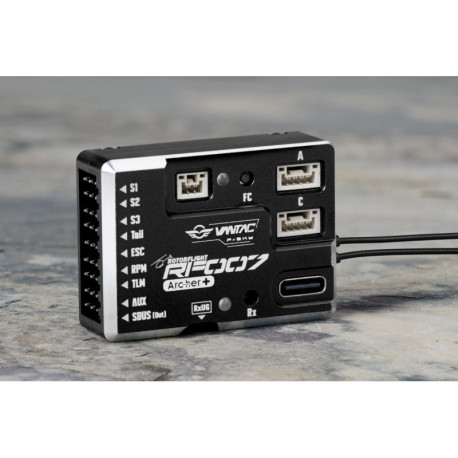

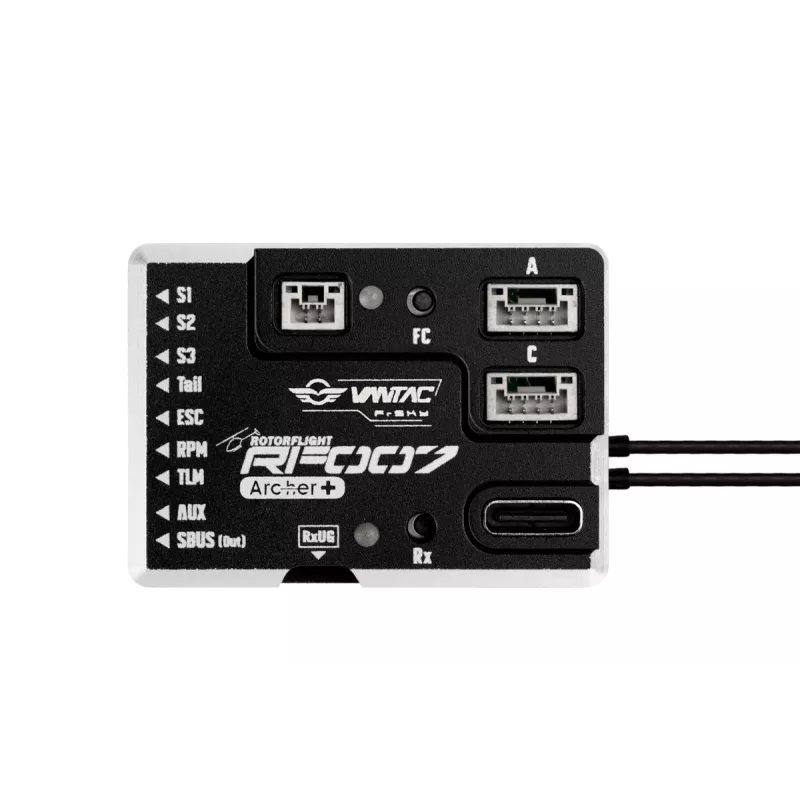

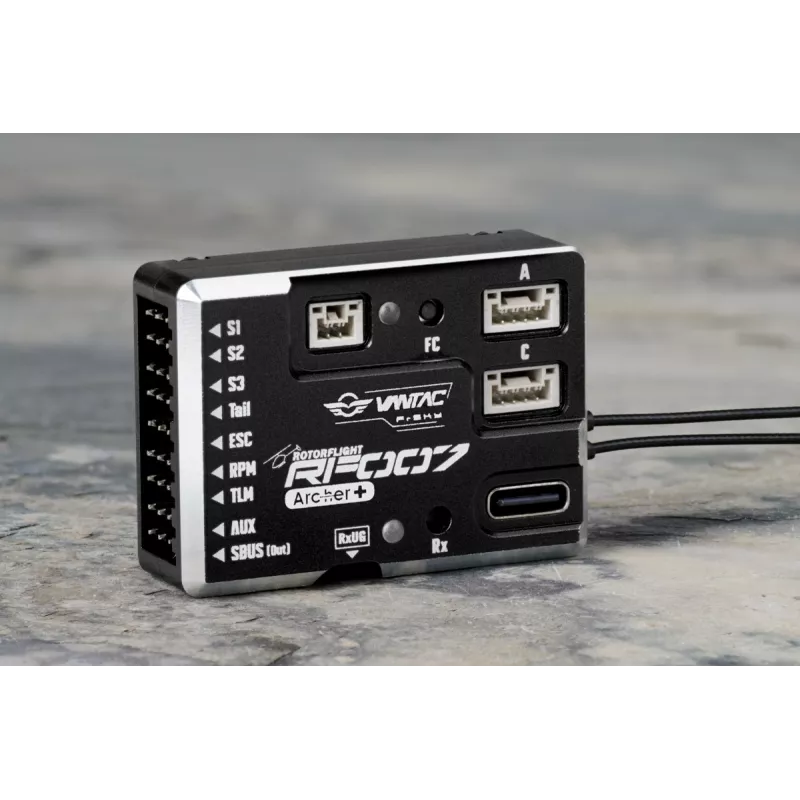

FrSky RF007 Archer FBL unit

The FrSky VANTAC RF007 is a high-end flybarless (FBL) unit that utilizes the latest Rotorflight 2.X technology. With a built-in Access 2.4GHz RS receiver, the RF007 provides a wide range of features while allowing for intuitive configuration , seamless setup , and real-time tuning via the ETHOS radio interface.

Rotorflight technology and comprehensive capabilities
The RF007 is powered by an STM32F722 MCU, supported by a 3-axis gyroscope, 3-axis accelerometer and barometer. Together, these components ensure accuracy and stability, giving pilots maximum confidence and trust in their machine. In addition, the controller supports flight data recording via a large 128MB black box, providing users with a wealth of data for debugging and troubleshooting.

Integrated FrSky receiver and external receiver support
The RF007 is equipped with a built-in FrSky Access 2.4 GHz RS receiver that pairs directly with KAVAN or FrSky transmitters, eliminating the need for an external receiver. The internal receiver is connected via a UART bus communicating on the FBUS protocol. For users with other requirements, the receiver can also be connected via the mainboard or one of the expansion ports. Rotorflight supports a wide range of receiver signal transmission protocols. For a full list of supported protocols, see the Rotorflight Configurator tool or visit https://rotorflight.org .

Runtime programming/debugging with ETHOS Lua
Thanks to telemetry connectivity, Rotorflight offers integrated and highly intuitive Lua-based configuration tools that you can run directly on ETHOS transmitters. These tools allow you to quickly and easily tune and change PID settings, trims, offsets, mixes/geometry, filter settings and most other Rotorflight parameters directly from the radio screen. Supported speed controllers can also be configured using the configuration tool.

Function

• Rotorflight open-source software for helicopter control.
• Built-in FrSky RS receiver (Access 2.4GHz) with FBUS support.
• Robust CNC aluminum case, functional heat sink for MCU.
• STM32F722 microprocessor for performance and versatility.
• Accurate barometer, 3-axis gyroscope and 3-axis accelerometer.
• 128MB black box for debugging and troubleshooting.
• 9 primary mainboard outlets for flexibility and power management.
• Multiple JST-GH expansion ports for UART/I2C devices.
• JST-GH port for VBAT measurement input up to 80 V.
• Multiple ESC protocols available (PWM, Dshot, Oneshot, Multishot).
• Multiple receiver and telemetry protocols available.
• Supports a balance rotor motor or controller.
• Supports integrated configuration and setup using Lua scripts.

Specifications

• Firmware: Rotorflight 2.X
• Dimensions: 43.5×31.2×13.7mm
• Weight: 25.2g
• Receiver: built-in Access 2.4GHz RS receiver.
• Operating voltage: 5-16V
• Operating current: 125 mA at 5 V
• Operating frequency: 2.400–2.4835 GHz
• Max. radiated power: < 20 dBm
• Voltage measurement range via AIN (external device): 0–80 V
