Climate rocket engine B2-4 EL (6pcs)

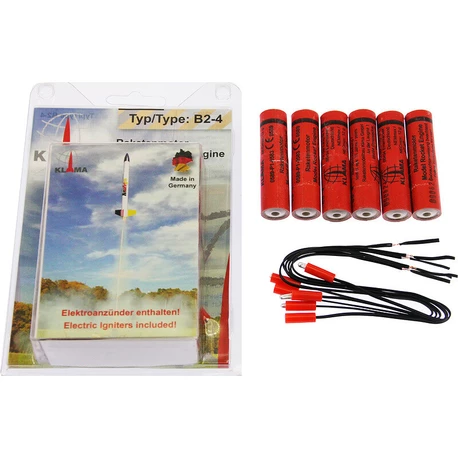

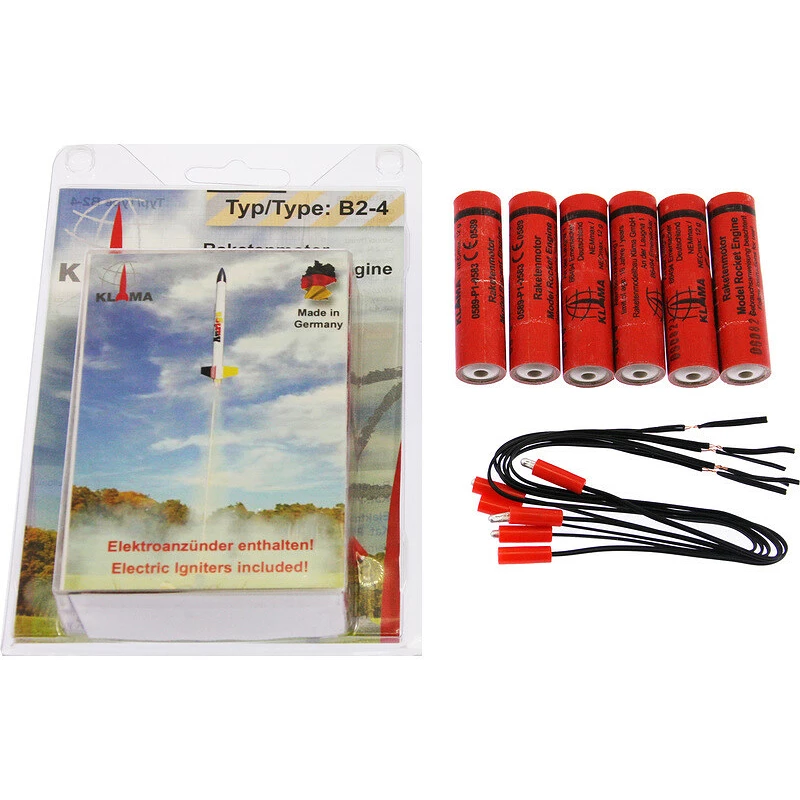

Rocket engine B2-4 EL Klima for rocket models. The package is 6 rocket motors B2-4 EL including el. igniters. Size o18 x 70 mm, impulse 5N · s, thrust approx. 2N, burning time 2,5s. Category P1, sale to persons over 18 years! By the purchase you confirm the fulfillment of the stated age limit (the delivery will be checked by the carrier).

Further information and marking

• CE mark 0589
• Age limit for the Czech Republic and Slovakia 18+
• Categories of pyrotechnics P1
• It must be sold only in the complete package indicated
• Engines are supplied with fuses, which can be ignited in a conventional way (matches, lighter)
• Instructions for use are included in the package
• Optionally, electric igniters (part number KL-7001) can be purchased, so that Klima rocket engines can also be ignited by electric current.
• Use only outdoors. Safety distance: 5 m
• The expiration date is indicated on the engines
• The net weight of explosive substances is indicated on the packaging
• Warning: Risk of fire or explosion. Extinguish the fire by standard means from a reasonable distance.

Instructions for igniting the engine with an optional electric igniter

Insert the starter into the engine so that the ignition mixture on the igniter touches the inner wall of the fuel mixture. It is recommended to bend the igniter wires so that the ignition mixture on the igniter is springed to the inner wall of the propellant. Secure the igniter and the wires in the motor by sealing the motor.

Detailed overview of rocket engines including explanations can be found here.

Use high quality alkaline batteries to power the starter. Conventional zinc chloride is not able to provide sufficient current to reliably ignite the igniter. To ignite the firing pin, a current of approx. 2 A is required!
