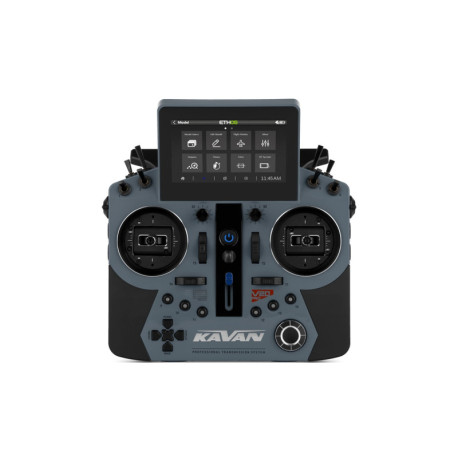

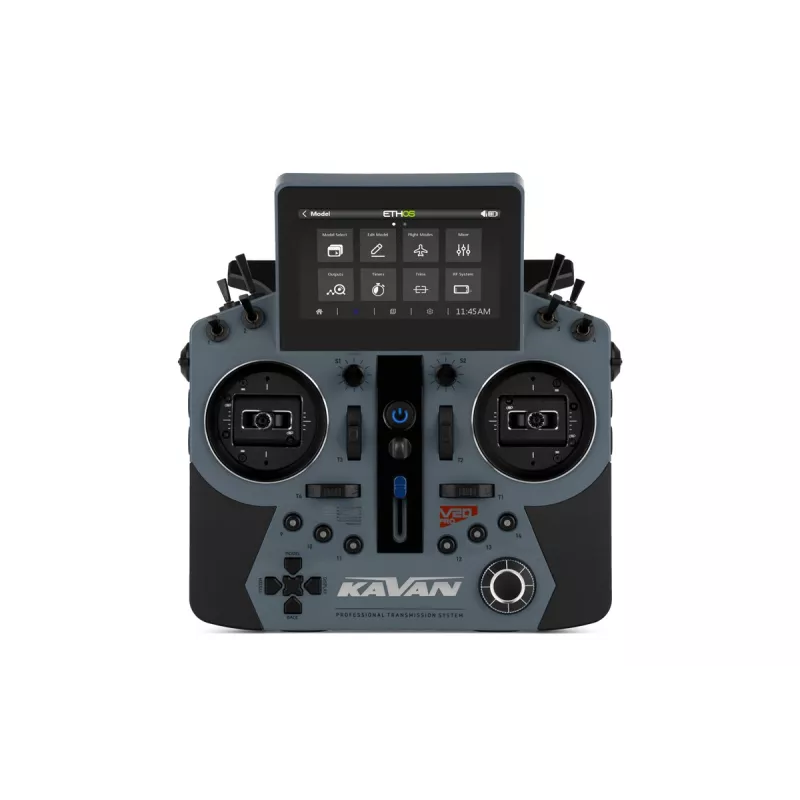

KAVAN V20 Pro transmitter - gray

KAVAN V20 Pro is a top 24-channel RC kit for the most demanding modelers with a brand new three-band TD Pro transmission system with full telemetry support. It boasts top-notch response time of up to 4 ms, and at a distance of up to tens of kilometers. You can also choose TW/TD/ACCESS/ACCESS R9/ACCST D16 transmission systems, also with telemetry. The V20 Pro can therefore be paired with a whole range of KAVAN or FrSky receivers, whether telemetric or not, with classic PWM and S.BUS outputs.

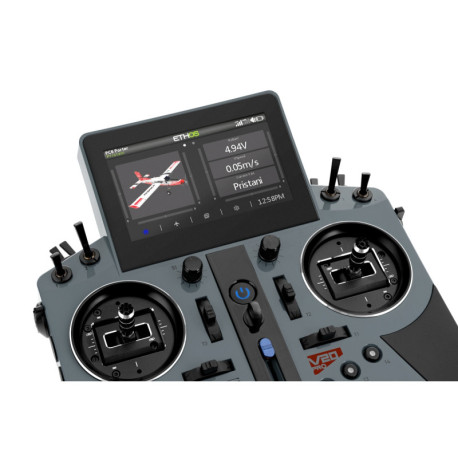

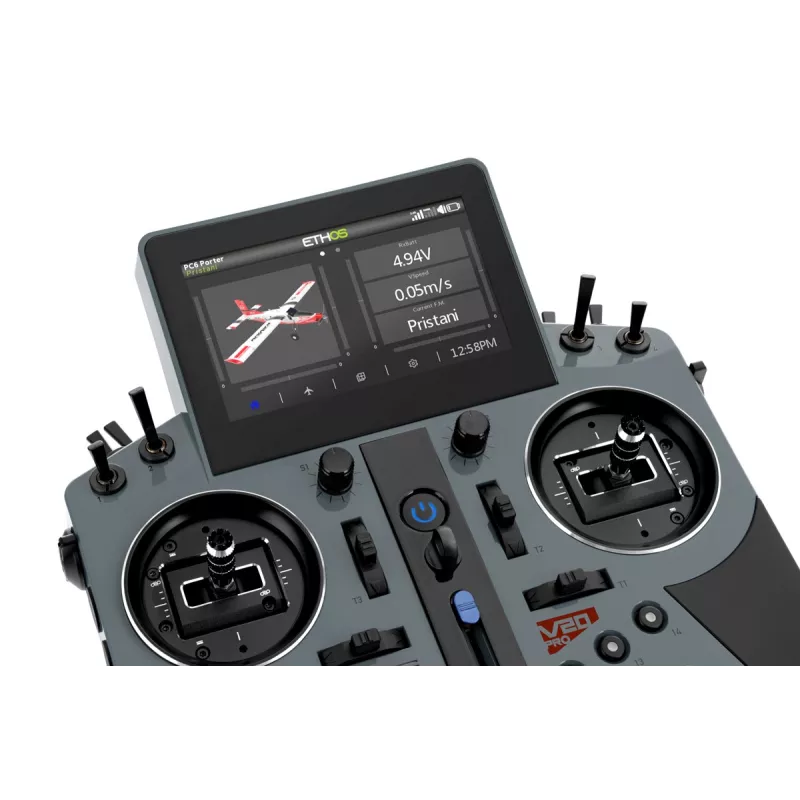

The V20 Pro is suitable for advanced and sport pilots. It will be excellent for controlling various aircraft models or helicopters/multicopters. You can easily set it up for ships or land models, for example. To do this, you can use a wide range of functions and mixes available in the ETHOS™ operating system. You can conveniently adjust them according to your preferences on the large, high-brightness touch color display.

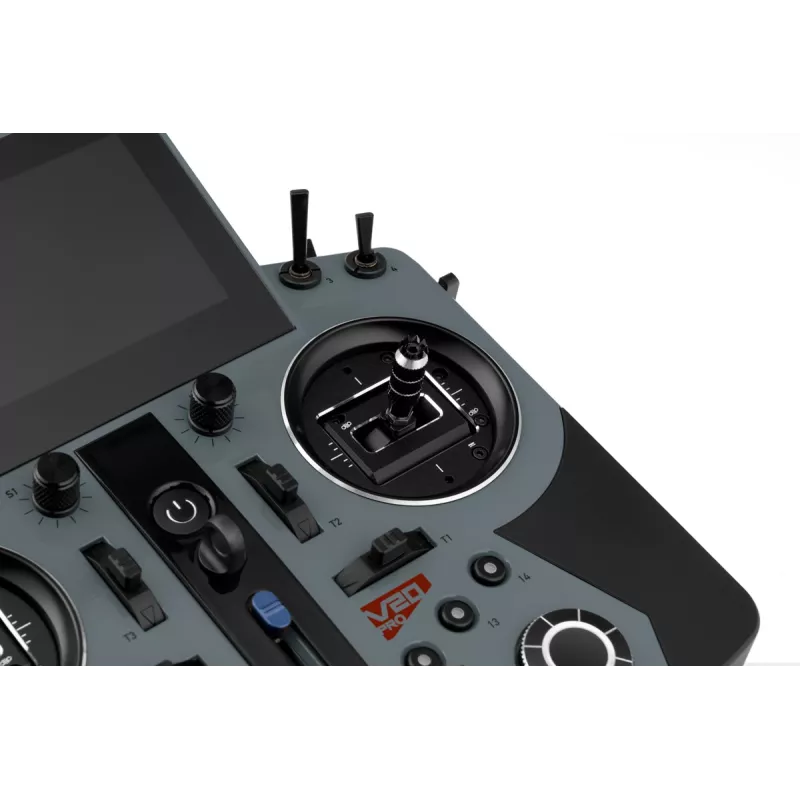

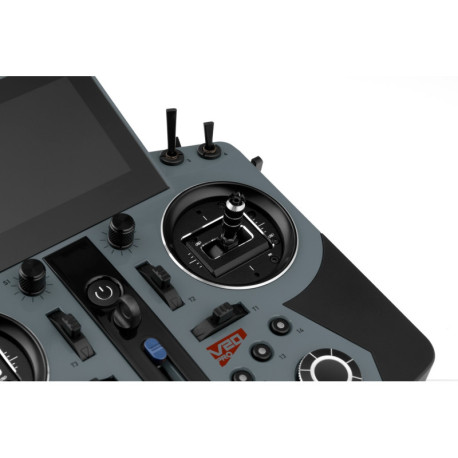

You have a pair of highly precise cross controllers with independent vibration feedback, mounted on 10 ball bearings. This guarantees perfectly smooth movement of the levers in every direction. Their position is detected by high-quality Hall sensors. Compared to potentiometers, they have higher resolution and are not subject to mechanical wear (most often around the center position), and are better resistant to moisture and dust. The control is therefore more precise and more reliable. You can rotate the cross controls by up to 8° and limit their range of motion to 45–60°. Of course, there is also the option of adjusting the force of the neutralization springs and locking, without the need to disassemble the transmitter. You can conveniently adjust all the response of the cross controls using the screws on the front panel.  To change the mode, simply select the desired mode in the settings menu and set the throttle lever lock within a few moments.

Other functions are controlled by 6 three-position switches, 2 two-position (1 momentary) switches, 2 side rotary controls, 6 user-programmable buttons (front) and two momentary buttons (rear). The built-in 6-axis gyroscopic sensor can be set to control the throttle channel, control the mixer deflections and also serves to wake up the display. The trim levers and knobs are all-metal, precisely machined on CNC. The design of the control layout and ergonomics of the body is the result of several dozen hours of testing and tuning by the KAVAN team.

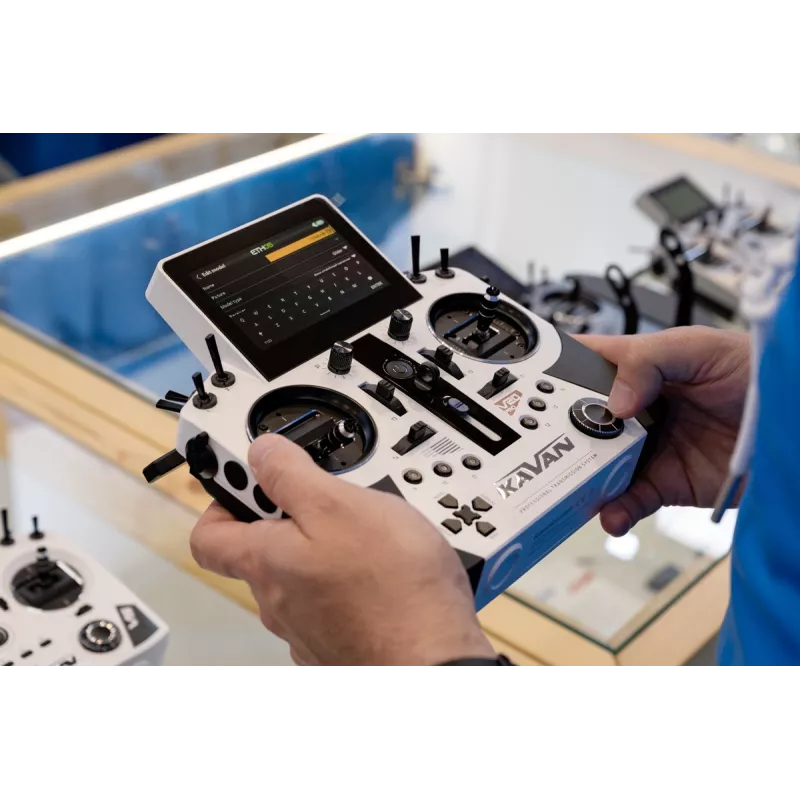

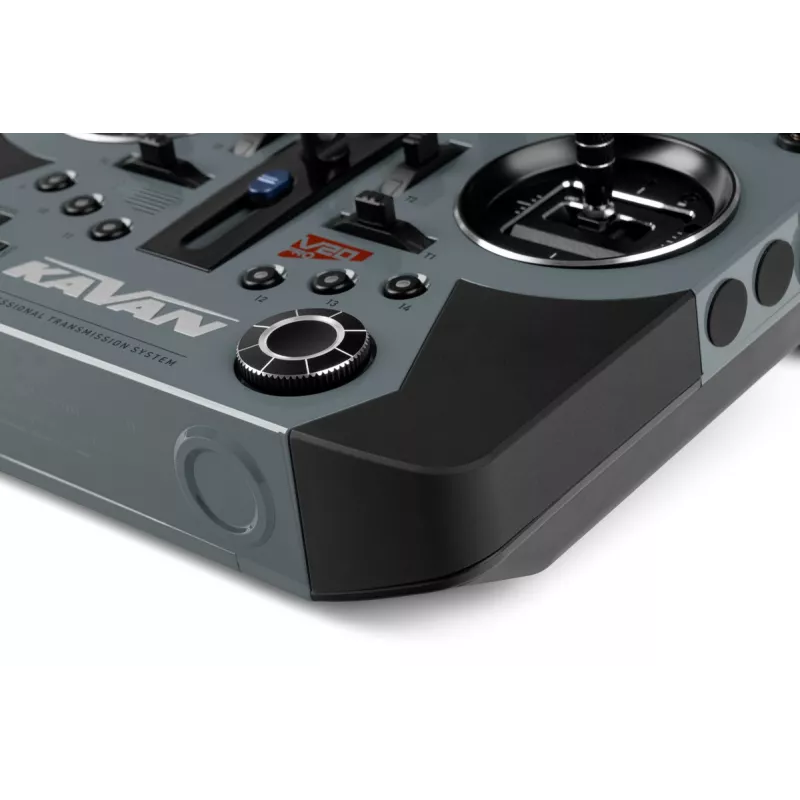

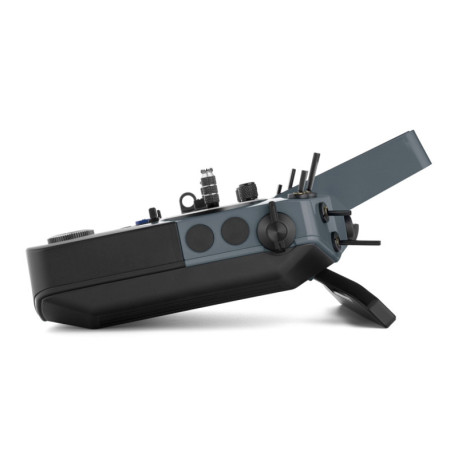

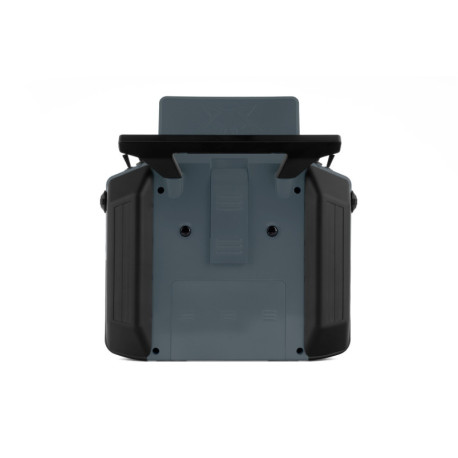

The transmitter body is robust and fits perfectly in the hand. The rubberized grips on the sides and back of the transmitter provide a firm, comfortable and secure grip. From here, you can easily reach all the controls. The gimbals are located close to the edges of the transmitter. So you don't even need a desk to hold the transmitter comfortably. For maximum ergonomics, you can also purchase long tuning levers with switches.

The V20 Pro has a memory for up to 64 models expandable using a microSD card. In addition to displaying telemetry data on the display, voice output and vibration feedback are also available. Telemetry is fully wireless. Built-in Text-To-Speech (TTS) function. The teacher-student mode is also wireless.

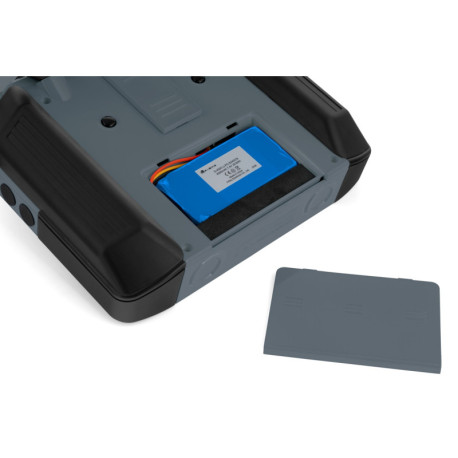

It is powered by a 2S LiPo battery with a capacity of 4000 mAh, which you can charge directly via USB-C. The transmitter is equipped with a balancer (±50 mV) for 2S LiPo batteries, and charges with a current of 2 A at 5 V.

All KAVAN transmitters are covered by an extended three-year warranty.

Features

• Color backlit touchscreen LCD with high brightness with a diagonal of 4.3” and a resolution of 800×480 px
• Up to 20 flight modes for perfect control of your model in all conditions
• Full telemetry with data transfer from a wide range of sensors with the possibility of writing to an SD card
• Memory for 64 models expandable via SD card
• Wireless voice telemetry output
• Upgradable software
• 6 3-position switches, 2 2-position (1 momentary) switches
• 2 side rotary controls, 2 momentary buttons on the rear
• 6 user-programmable buttons (front)
• 6-axis gyro sensor
• Precision D-pads mounted on 10 ball bearings
• Teacher-student mode wirelessly
• F.BUS socket for servo programming
• Model names with 15 characters
• Subtrims
• Reversal of servo deflections
• Setting end points and deflection limits
• Servo speed adjustment
• Reset data
• Fail-safe emergency deflections
• Double deflections
• Setting the deflection course according to 2 exponential curves or 21-point curves.
• Freely programmable mixes
• Motor shutdown
• Safe idling
• Logically linked switches
• Clear user menu with customizable widgets
• Servo monitor and servo tester
• Three timers (stopwatch or timer)
• Model operating time
• Transmitter operating time
• Signaling of preset control positions when the transmitter is started
• Adjustable display backlight intensity
• Cross-controller calibration
• Audible warning signal and vibration
• Range control
• Setting the operating mode with 3 receivers
• Audio feedback and built-in Text-To-Speech
• USB-C connection to RC simulator
• Option to install tuning long sticks

Technical specifications:

• Transmission systems: TD Pro, TW, TD, ACCESS, ACCESS R9, ACCST D16
• Antennas: 4 built-in LoRa + FSK antennas (2.4GHz + 868 MHz)
• Dimensions: 221.5×214.5×94 mm (W×H×D)
• Weight: 1125 g (including battery)
• Operating system: ETHOS™
• Internal RF module: TD-ISRM Pro
• Number of channels: up to 24
• Operating voltage range: 6.5–8.4 V (2S LiPo battery)
• Operating temperature: (-10)–60 °C
• Operating current: 240 mA at 7.4V
• Charging current: ?1 A ± 200 mA
• USB adapter voltage: 5 V + 0.2 V
• USB adapter current: >2.0 A
• Display: Backlit high-brightness touch LCD with 800×480 resolution on 4.3" diagonal

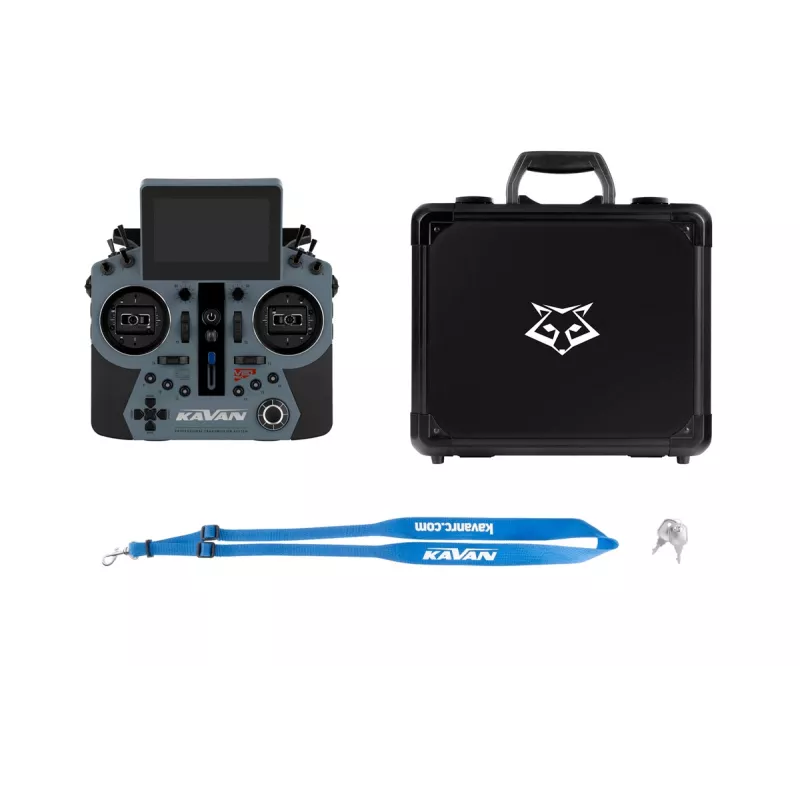

Package contents:

• KAVAN V20 Pro transmitter gray

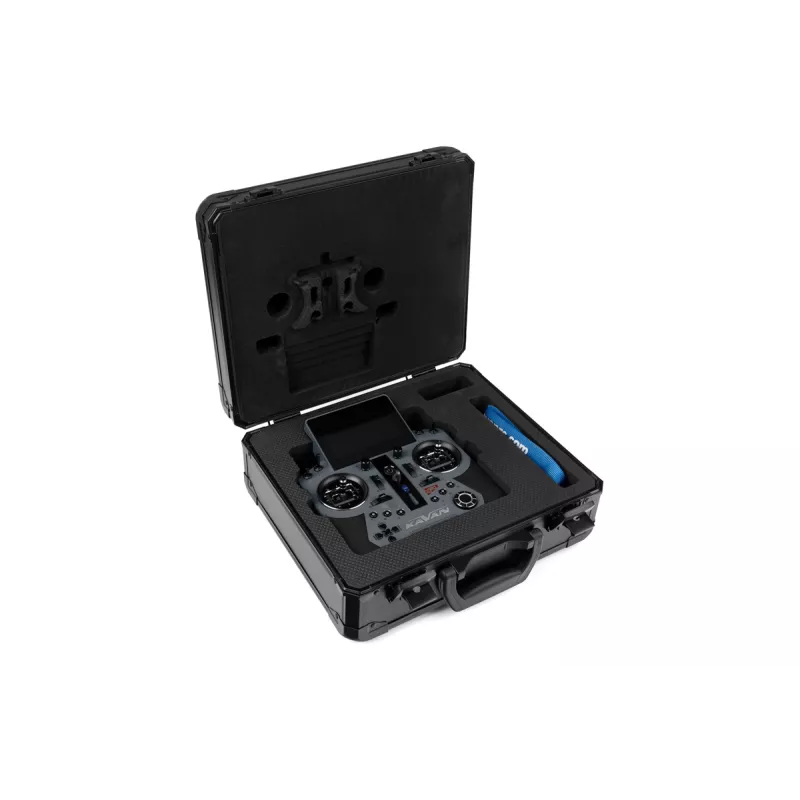

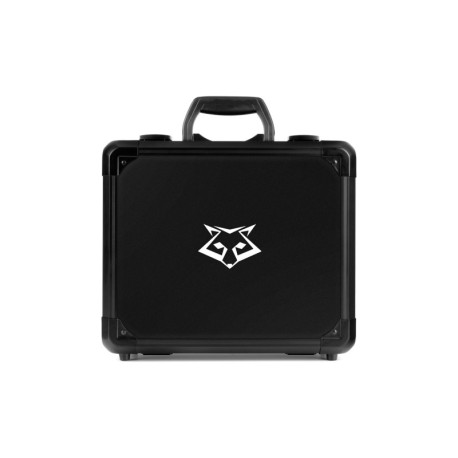

• Hardened lockable carrying case

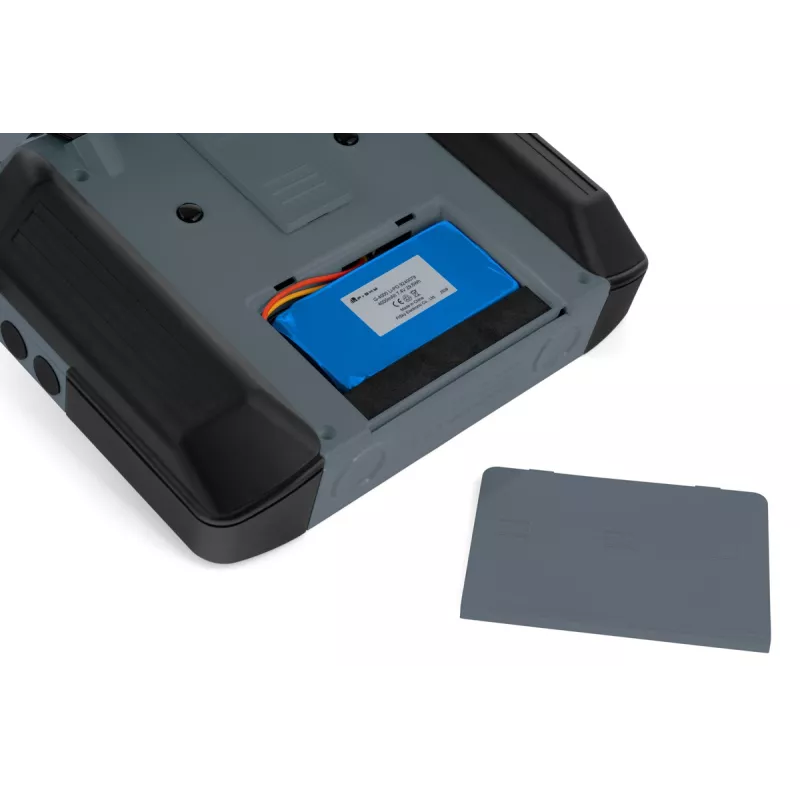

• Transmitter battery 2S LiPo 4000 mAh
• Neck strap
• Quick start guide
