Futaba 10J, R3008SB receiver (mode 1)

Futaba 10-channel RC set using T-FHSS Air-2.4GHz telemetry transmission system for advanced recreational and sport modellers. The transmitter can also be switched to S-FHSS transmission mode to use the full range of S-FHSS receivers (without telemetry) from the miniature 6-channel R2106GF to the 8-channel R2008SB. With the R3008SB receiver included in the kit, you have 8 PWM channels for classic servos or a full 10 channels via S.BUS and S.BUS2, and telemetric data on the receiver's power supply voltage, additional external (eg propulsion) battery voltage, and signal strength picked up by the receiver . Additional telemetry data can be obtained from additional telemetry sensors connected to S.BUS2.

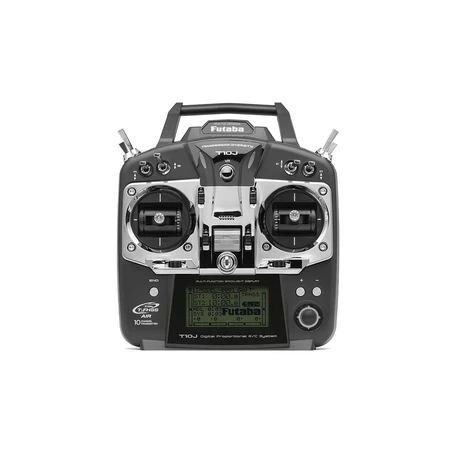

Perfectly fitting in your hand, the T10J is equipped with precision lock / neutral cross controllers, 8 switches, 6 digital trimers and a proportional rotary control. For programming, use three buttons and a multi-purpose joystick; Easy to navigate in the intuitive menu is provided by the large backlit LCD display. The T10J has memory for 30 models and a wide range of mixer functions for aerobatic aircraft, gliders, helicopters and multicopters. In addition to displaying telemetry data on the display, a telemetry voice output is available in the handset socket (not included). The T10J is also equipped with a teacher-student socket and also allows you to program and set up S.BUS servos.

To operate the transmitter, you will need 4 AA alkaline batteries or NiMH batteries stored in the holder supplied with the transmitter or. 4-5-cell NiMH or 2S LiFe battery pack.

FUNCTION

• T-FHSS Air-2.4GHz transmission system with telemetry, S-FHSS 2.4GHz without telemetry
• 10 proportional channels
• Precision Cross Controls (Transmitters available in Mode 1 or 2, subject to change)
• Rotary proportional control
• 5 two-position switches (including one torque switch)
• 2 three-position switches
• 4 + 2 digital trims
• Assignable mixer switches, freely assignable controls for channels 5-10
• Programs for aerobatic models of aircraft, gliders, helicopters and multicopters
• Upgradable software (requires CIU-3 USB interface)
• SB programming socket US serv
• Multi-purpose joystick and three buttons for easy programming
• Telemetry voice output on handset socket (3.5mm jack)
• Vibration signaling of low voltage and other warnings
• Backlit LCD display 128x64 dots
• Memory for 30 models
• Gas off function
• Servotester and servo monitor with graphical representation of servo deviations

Program menu for aerobatic aircraft

• Adjustment of magnitude and sense of deflections, double and exponential deflections
• 6 freely programmable mixes
• 9 pre-programmed mixes
• Flaperons with adjustable differentiation
• Trim flaps
• Differentiation of aileron deflections
• Gyro profit management
• 5-point gas curve
• 5-point angle of attack (for adjustable propellers)
• Gas delay
• Engine stalls and Safe idling

Program menu for gliders

• 5 types of wings (1-2 wings, 1-4 flaps)
• Adjustment of magnitude and sense of deflections, double and exponential deflections
• 6 freely programmable mixes
• 2 flight modes
• 16 pre-programmed mixes
• Flaperony
• Differentiation of aileron deflections
• Mix butterfly
• Mix camber (curvature of trailing edge)
• Mix Motor (motor control by switch with adjustable acceleration and deceleration)
• Gyro profit management

Program menu for helicopters

• 8 swashplate types
• Adjustment of magnitude and sense of deflections, double and exponential deflections
• 6 freely programmable mixes
• 10 pre-programmed mixes
• 5 flight modes with adjustable delay
• 5-point gas curves
• 5-point collective curves
• Autorotation
• Gyro profit management
• Revomix
• Gas delay
• Set the swings and corrections for the swashplate
• Cycle control deflection limit

Program menu for multicopters

• Adjustment of magnitude and sense of deflections, double and exponential deflections
• 6 freely programmable mixes
• Gyro profit management
• Gas controller position indication

RC SET CONTAINS

• Futaba 10J Transmitter 2.4 GHz in mode 1

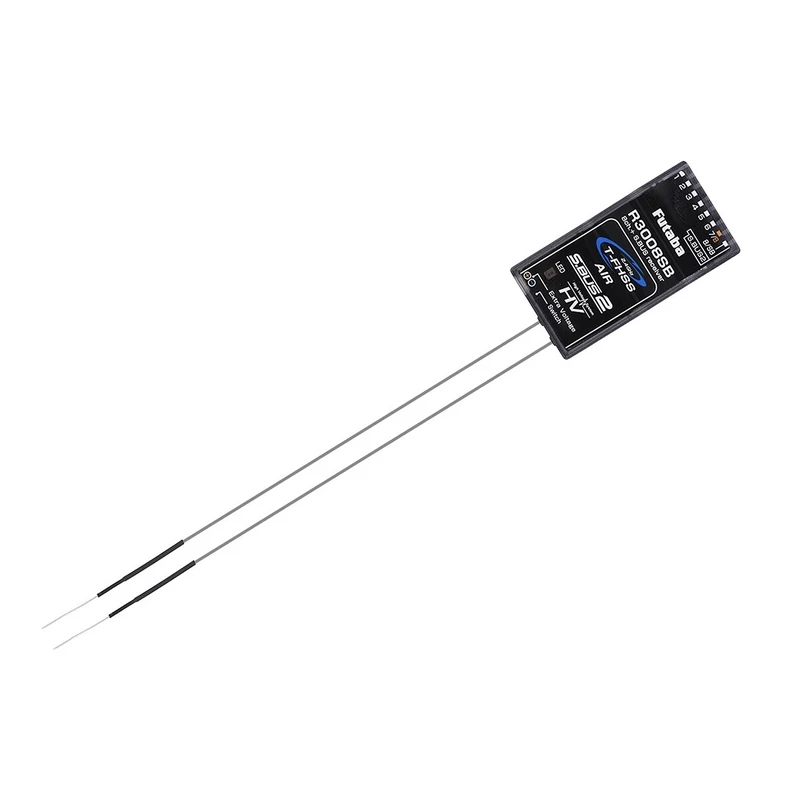

• Receiver R3008SB
• Switch with charging cable
• Plastic screwdriver
• Operating Instructions
