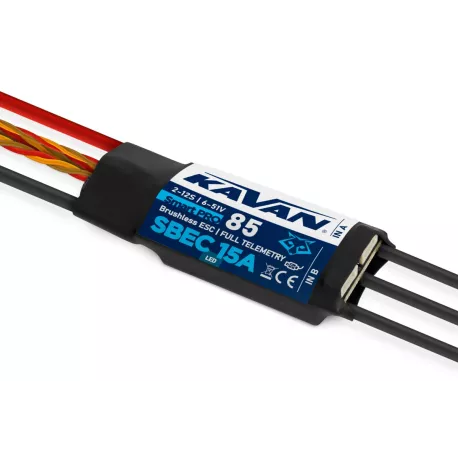

KAVAN Smart PRO-85HV SBEC

Powerful regulator of BLDC motors with a continuous current of up to 80A at a voltage of up to 51V (12S LiPo). It is suitable for models with limited installation space - typically electric wind turbines. It offers a high-quality stabilized voltage output (BEC) with a continuous current of up to 15A and the possibility of connecting an external safety switch.

The KAVAN Smart series represents advanced speed controllers for use primarily in radio-controlled model aircraft. Thanks to integrated telemetry and various options for user-selectable configuration, the controllers offer high efficiency, low weight and precise motor control. Regulators offer many types of protection.

Properties

• Small dimensions combined with high-performance motor control.
• A powerful switched BEC that offers a continuous current of 15A (30A max). BEC circuit protection against overcurrent and overheating is included.
• BEC voltage setting 5.5-8.4 V in steps of 0.1V.
• Protection against overvoltage and undervoltage, protection against overheating, protection against motor jamming.
• Adjustable current limiter.
• Safety shutdown in case of loss of impulse.
• Configurable acceleration, timing, electromagnetic brake, etc.
• Low acoustic noise thanks to high-frequency switching.
• Automatic telemetry detection: KAVAN V20, Duplex EX, Hott, MSB, S.Bus2. Special firmware with SRXL2 support.
• Telemetry (depending on the RC system): voltage, current, power, capacitance, temperature, revolutions, energy.
• Minimum/maximum telemetry values are recorded.
• Configuration via transmitter or external terminal (JETIBOX/SMART-BOX).
• Firmware update via KAVAN Smart or MAV Sense USB interface and MAV Manager program.
• Languages: CZ/DE/EN/FR/IT

other functions

• The possibility of activating synchronous switching (Active Freewheeling) for more accurate engine response and less heating of the controller during acrobatics.
• Optional use of external switch / button / Hall-sensor / RC switch / Touch Switch (sold separately).
• Trouble-free operation with powerful multi-pole motors and the vast majority of all other motors.
• Optional connection of backup battery without additional reductions.
• Propeller positioning using Hall sensor (sold separately).
• Optional external motor identification linked to temperature sensor (sold separately).

The package includes: Speed controller, instructions.
