KAVAN PRO motors are high-performance brushless fourteen or multi-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and top-quality manufacturing. Shafts made of hardened steel and high-quality bearings ensure a long service life, quality materials used for the manufacture of the stator and rotor also guarantee excellent performance parameters with high efficiency. They are low-speed, high-torque engines that handle large-diameter propellers and climbs without the need for a gearbox.
| Engine marking system: PRO xxYY-zzzz |
| PRO - AC motor with a rotating casing ("outrunner", "circulator") |
| xx - motor diameter in mm |
| YY - motor length in mm |
| zzzz - number of revolutions per volt (rpm per V), "KV" |

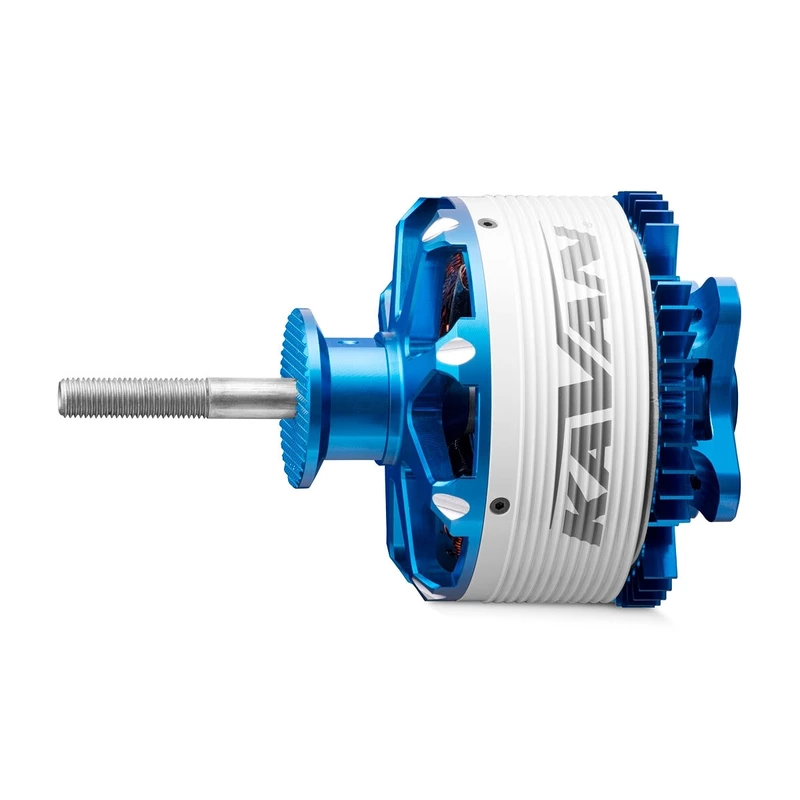

CAVAN FOR 8055-190
KAVAN PRO 8055-190 is a 22-pole AC motor designed to drive models with a flight weight of up to 15 kg with power from a 10-12-cell LiPo battery. It is perfectly suited for models in which you would otherwise fit a 40 cc two-stroke petrol engine.
Motor mounting: KAVAN PRO 8055-190 is designed for rear mounting. Use four M4 steel screws for fixing; engine bulkhead should be 8-10mm aircraft grade plywood.
Controller: When choosing a controller, be especially careful that it is a type designed to work with multi-pole motors (common controllers designed for 2-14 pole motors may not work correctly).

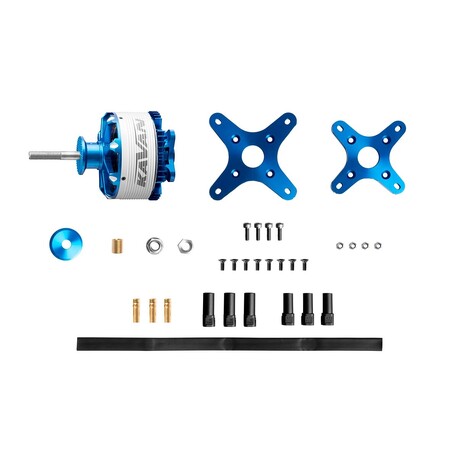

Motor kit includes: KAVAN PRO 8055-190 AC motor with cables with soldered 6 mm gold-plated connectors, rear mounting kit with two mounting crosses (O71/75 and O87/90 mm). You can download the complete manual for the motor here: AC motors KAVAN PRO 5050+ - Instruction manual
Note: Alternative designation according to the dimensions of the stator 7025-190.
| LiXX cell power supply | 10 - 12 |
| Revolutions per volt [rpm/V] | 190 |
| Max. power (30 s) [W] | 5150 |
| Internal resistance [mOhm] | 14 |
| Open circuit current (at 10 V) [A] | 1.8 |
| Max. peak current (30 s) [A] | 135 |
| Diameter [mm] | 79.5 |
| Length [mm] | 55 |
| Total length [mm] | 138.5 |
| Shaft diameter [mm] | 8 |
| Weight [g] | 832 |
| Number of poles | 22 |
| Timing [°] | 15 - 25 |
| Regulator [A] | 150 - 160 |
| Glider up to weight [g] | 15000 |
| Weight trainer [g] | 10000 |
| Acrobat to weight [g] | 7000 |
| 3D to weight [g] | 5500 |
| Recommended propeller (12S) | 21x10”-22x10” |
