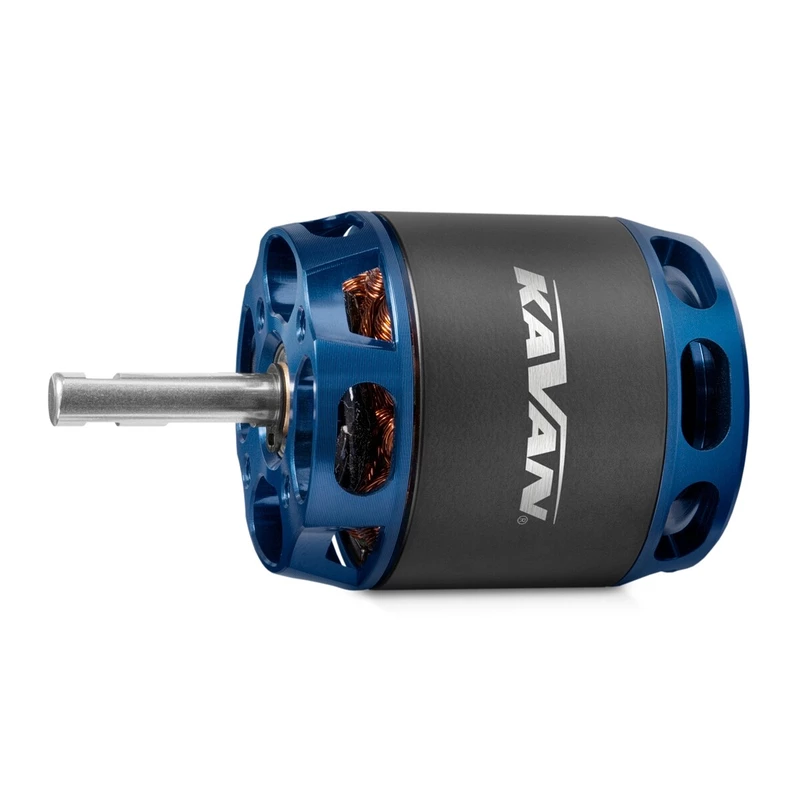

KAVAN Brushless Motor PRO 4345-880

KAVAN PRO motors are high-performance commutatorless ("brushless") fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and top-quality manufacturing. Shafts made of hardened steel and high-quality bearings ensure a long service life, and the quality materials used for the manufacture of the stator and rotor also guarantee excellent performance parameters with high efficiency. They are low-speed, high-torque engines that handle large-diameter propellers and climbs without the need for a gearbox.

CAVAN FOR 4345-880

KAVAN PRO 4345-880 is an AC motor designed to drive models with a flight weight of up to 3000 g with power from a three- to four-cell LiPo battery. Perfectly suited for models such as FMS EPO "Warbirds" and aerobatic models with a span of 1300-1400 mm etc.

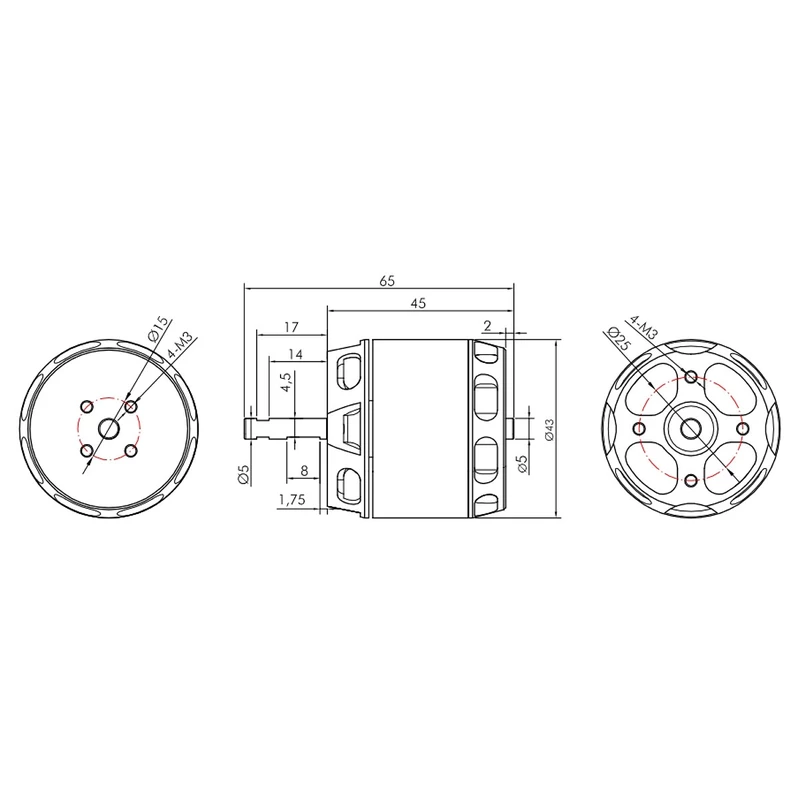

Engine Mounting: The KAVAN PRO 4345-880 is designed for both front and rear mounting. For front mounting behind the engine face, use four M3 screws that extend 4-5mm into the engine face. The engine bulkhead should be 5-6mm aircraft grade plywood. The rear mounting kit (mounting cross, rear mounting propeller carrier) is supplied with the engine.

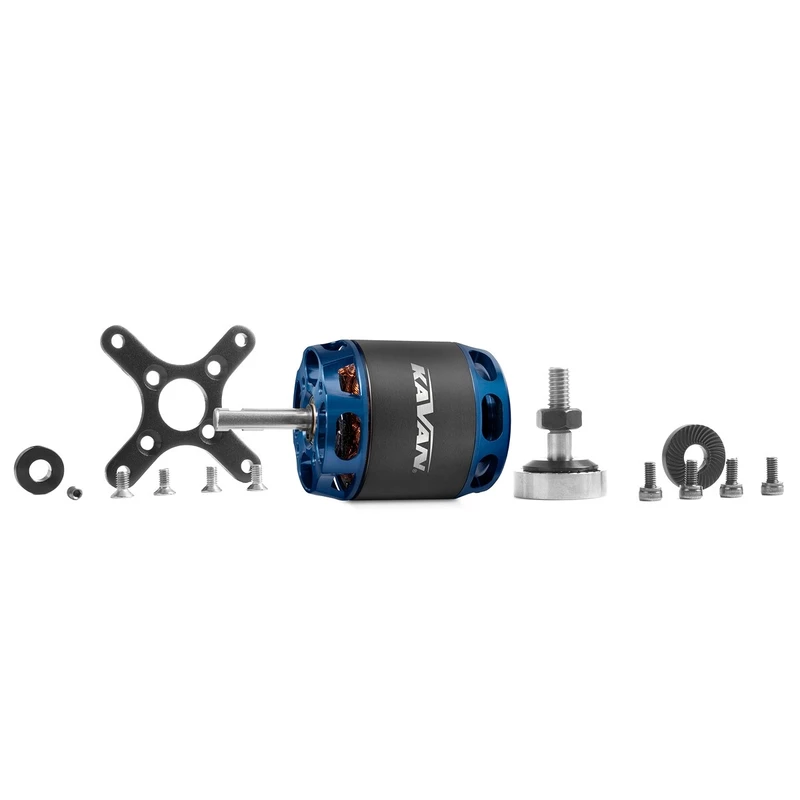

Motor kit includes: KAVAN PRO 4345-880 AC motor with cables with soldered 4mm gold-plated connectors, rear mounting kit, instructions.

Note: Alternative designation according to stator dimensions 3520-880.
