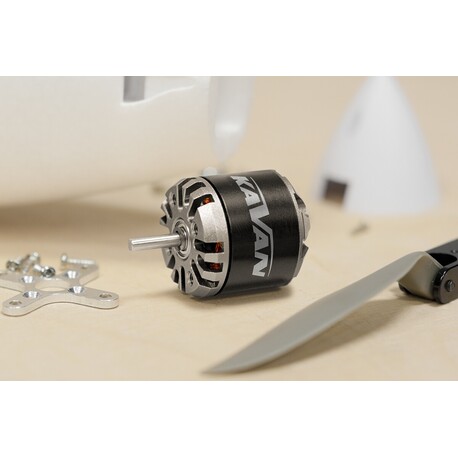

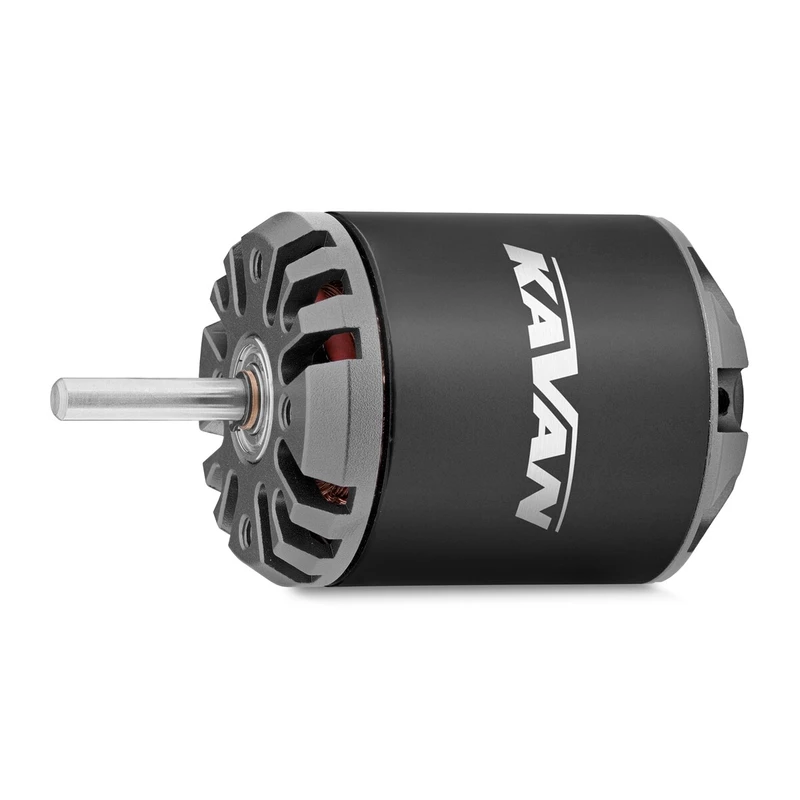

KAVAN Brushless engine C3548-800

KAVAN C motors are powerful brushless fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and excellent production processing. They represent a very good choice for driving your recreational sports models with excellent performance parameters, good efficiency and a favorable price. They are low-speed, high-torque engines that can handle large-diameter propellers and climb without the need for a gearbox.

KAVAN C3548-800 is an AC motor designed to drive models with a flight weight of up to 2700 g and powered by a three- to five-cell Li-poly battery. Great for models such as EPP "Warbirds" and acrobatic models with a range of 1300-1400 mm, Spitfire EP or Mustang EP from Phoenix, etc.

Engine mounting: KAVAN C3548-800 is designed for front and rear mounting. When front mounting behind the front of the engine, use four M3 bolts that extend into the front of the engine by 4-5 mm. The pairs of holes for the fastening screws at the front of the engine are regularly spaced 180 ° on circles with a diameter of 25 and 19 mm. The engine bulkhead should be made of 5 mm plywood. The rear mounting kit (mounting cross, propeller carrier for rear assembly) is supplied with the engine.

Engine set includes: C3548-800 motor with cables with soldered 3.5 mm gold-plated connectors, rear mounting kit, instructions.
