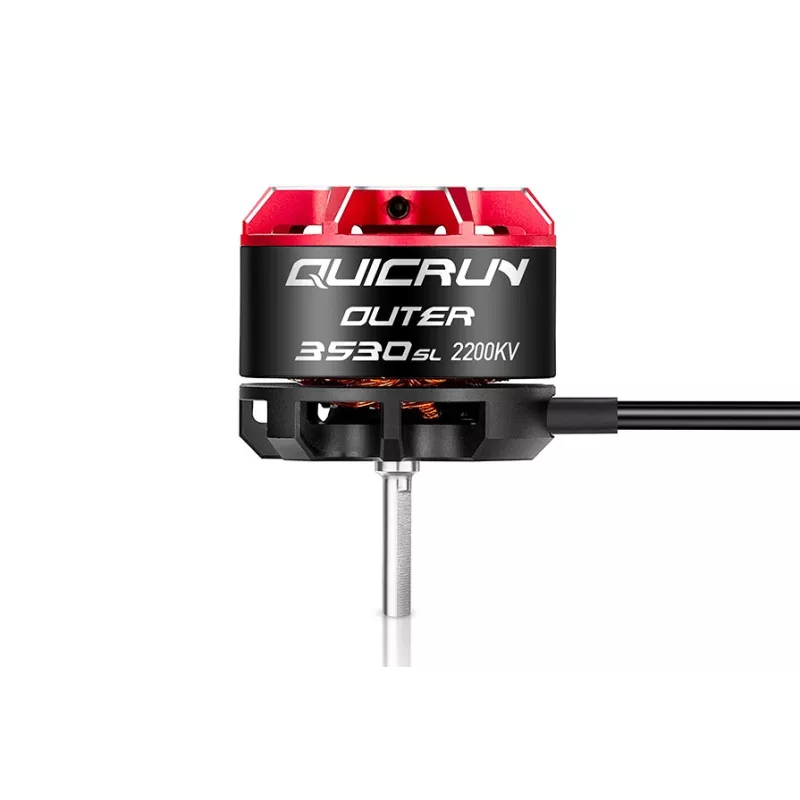

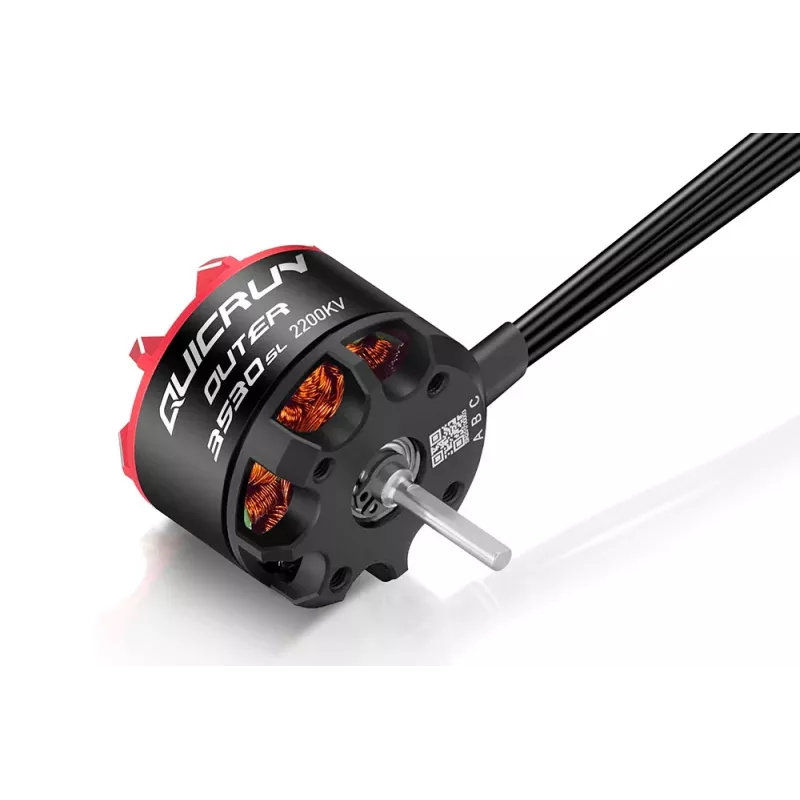

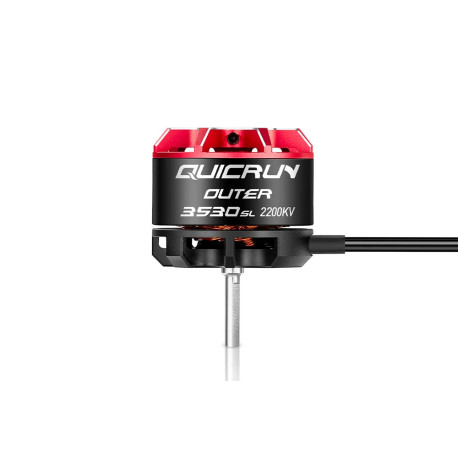

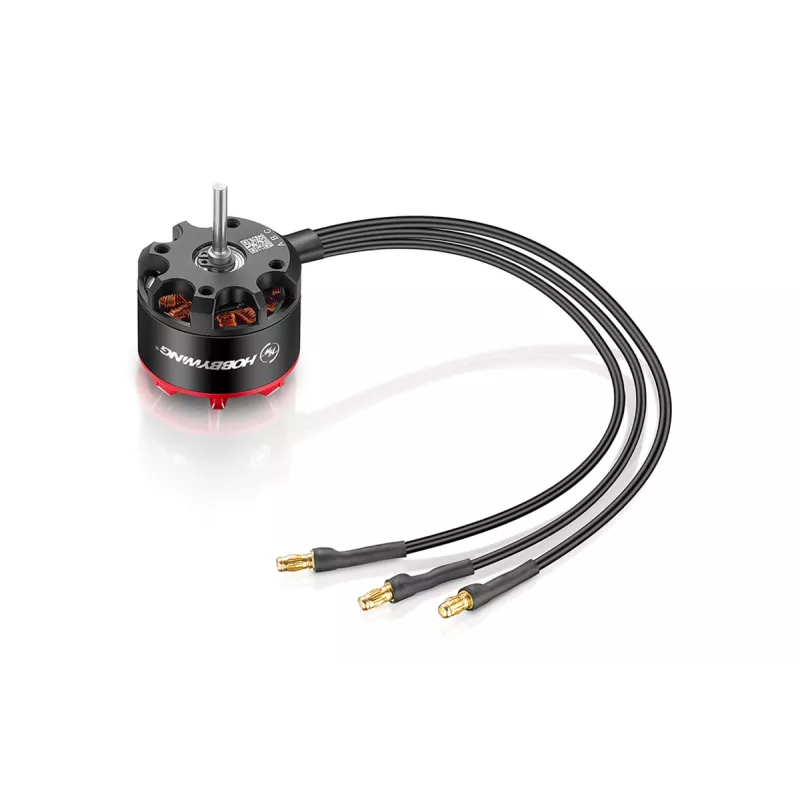

QuicRun Outer 3530SL 2200kv

HW30404852
HOBBYWING
Powerful AC sensorless twelve-pole motor with rotating casing from the QuicRun series, an excellent replacement for a DC motor with much higher power and efficiency in 1:10 or 1:12 RC crawlers. Power supply 2-4S LiPo, KV2200 rpm at V. Ideal with the Quicrun co
More info
In stock - main warehouse: 8 pcs
Dates of delivery
Your price with VAT
(DPH SK 23%)
37.22 €
Price without VAT
30.26 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee

    Recommended for you

    Obrázek Obrázek 2
    Hobby

    EZRUN 56118SL-1600KV G2

    HOBBYWING
    HW30402905
    High-performance brushless sensorless motor from the EZRUN series, designed for extremely fast 1:7 and 1:8 RC cars. Power supply 6-12S LiPo, KV1600 rpm at V. Ideal in combination with the EZRUN MAX 5 HV Plus G2 controller.
    In stock - main warehouse
    239.97 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Hobby

    SEAKING 54113SL 800kV

    HOBBYWING
    HW30419002
    Electronic bidirectional 25A QuicRun controller for DC motors, waterproof, dustproof, with built-in BEC, suitable for 1/16, 1/18 Touring Car/Buggy/Monster Trucks.
    In stock - main warehouse
    199.91 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Hobby

    EZRUN 5690SL 2400KV G2

    HOBBYWING
    HW30402904
    High-performance brushless sensorless motor from the EZRUN series, designed for extremely fast 1:7 and 1:8 RC cars. Power supply 6-8S LiPo, KV2400 rpm at V. Ideal in combination with the EZRUN MAX 5 HV Plus G2 controller.
    In stock at the store
    183.89 €
    In stock at the store
    Obrázek Obrázek 2
    Last items in stock
    Hobby

    SEAKING 4685SL 1500kV

    HOBBYWING
    HW30419001
    High-performance brushless four-pole sensorless motor of the SEAKING series designed for large speedboats (up to 1400 mm) and large fast models. Power supply 6-8S LiPo, KV1500 rpm at V. Ideal in combination with the SEAKING 200A HV V4 controller.
    In stock - main warehouse
    143.82 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Hobby

    SEAKING 4685SL 900kV

    HOBBYWING
    HW30419000
    High-performance brushless four-pole sensorless motor of the SEAKING series designed for large speedboats (up to 1400 mm) and large fast models. Power supply 6-14S LiPo, KV900 rpm at V. Ideal in combination with the SEAKING 200A HV V4 controller.
    In stock - main warehouse
    143.82 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Hobby

    EZRUN 4278SD 2250KV G2R

    HOBBYWING
    HW30402141
    High-performance four-pole brushless sensored motor from the EZRUN series, designed for 1/8 trucks and monster trucks. Power supply 3-6S LiPo, KV2250 rpm at V. Ideal in combination with the EZRUN MAX8 G2S controller.
    In stock - main warehouse
    107.77 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Hobby

    Quicrun Outer 3530SL 1700kv

    HOBBYWING
    HW30404851
    Powerful AC sensorless twelve-pole motor with rotating casing from the QuicRun series, an excellent replacement for a DC motor with much higher power and efficiency in 1:10 or 1:12 RC crawlers. Power supply 2-4S LiPo, KV1700 rpm at V. Ideal with the...
    In stock - main warehouse
    37.22 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Hobby

    QUICRUN 2850SL 3400kV

    HOBBYWING
    HW30404804
    Powerful four-pole AC sensorless motor from the QuicRun series, ideal as a replacement for a DC motor with much higher power and efficiency in road and off-road cars in 1:12/1:14 scale. Power supply 2-3S LiPo, KV3400 rpm at V.
    In stock - main warehouse
    37.22 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Hobby

    QUICRUN 2850SL 4700kV

    HOBBYWING
    HW30404805
    Powerful four-pole AC sensorless motor from the QuicRun series, ideal as a replacement for a DC motor with much higher power and efficiency in road and off-road cars in 1:12/1:14 scale. Power supply 2S LiPo, KV4700 rpm at V.
    In stock - main warehouse
    37.22 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Hobby

    QUICRUN-2030SL-6500KV-BLACK-G2

    HOBBYWING
    HW30404801
    A powerful 2-pole AC sensorless motor from the QuicRun series, ideal as a DC motor replacement with much higher power and efficiency in 1:18 scale on-road and off-road vehicles. Power supply 2S LiPo, KV6500 rpm on V.
    In stock - main warehouse
    26.00 €
    In stock - main warehouse


    The high-performance fourteen-pole sensorless AC electric motor QUICRUN Outer 3530SL is ideal for tuning RC cars such as crawlers in 1:10 or 1:12 scale. Compared to the DC motors common in these models, it offers much higher power and efficiency. If you want to give your model a more powerful motor with a longer service life and greater adjustment options in cooperation with the QUICRUN WP 10BL80 Crawler controller, the QUICRUN Outer 3530SL electric motor is the right one for you!

    • Dynamically balanced to minimize vibrations and reduce the associated power losses.
    • Highly stable power and torque throughout the entire operating speed range.
    • Smooth start-up without stutter, excellent linear response at low speeds.
    • Four mounting holes with M3 threads with 25 mm spacing.
    • CNC machined aluminum alloy housing, copper wire winding with high insulation temperature resistance, precision ball bearings for long service life and smooth operation.
    • Modular design for easy maintenance and repair/replacement of parts.

    The set includes: QUICRUN Outer 3530SL motor, instructions.
    Motor typeAC
    Revolutions per volt [rpm/V]2200
    Li-Po [cell]2 - 4
    No-load current [A]5
    Max. power [W]520
    Diameter [mm]35
    Motor housing length [mm]30
    Shaft diameter [mm]3.175
    Free shaft length [mm]12
    Weight [g]102
    Number of poles14
    Timing [°]0
    Hall sensorNo
    Počet pólů
    14
    Typ motoru
    Střídavý
    Hmotnost [g]
    102
    Li-Po [čl.]
    2 - 4
    Průměr [mm]
    35
    Otáčky na volt [ot./min/V]
    2200
    Proud naprázdno [A]
    5
    Max. výkon [W]
    520
    Průměr hřídele [mm]
    3.175
    Časování [°]
    0
    Délka skříně motoru [mm]
    30
    Délka volné hřídele [mm]
    12
    Hallova sonda
    Ne
