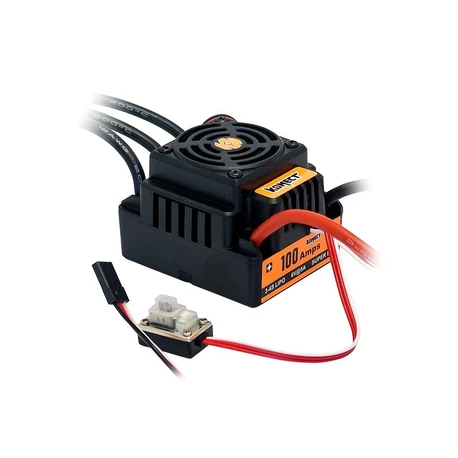

KONECT waterproof AC 100A regulator

AC controller for 1/8 and 1/10 road & off-road chassis, Drif, Rally, Buggy, Truggy, Short Course, Monster Truck

Konect & HobbyWing are your reliable partner for the maximum performance of your RC CHASSIS.

The controller with 100A permanent load is waterproof and has a switched BEC, which provides 6V with 5A power supply. This means that Hi-Volt servos with high torque and high current can also be operated without problems.

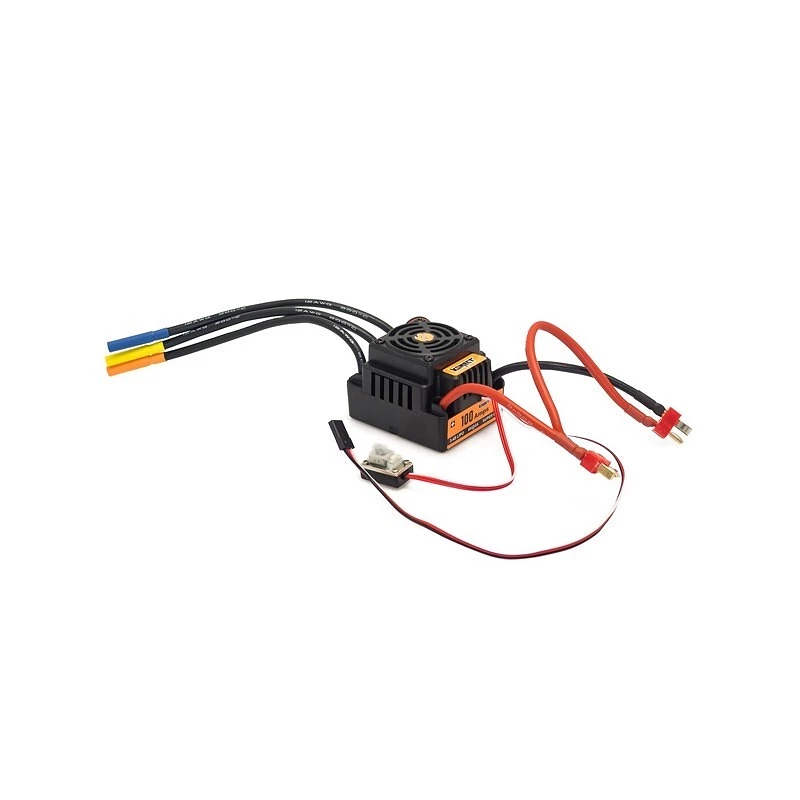

Equipped with two DEAN / T connectors, two batteries can be connected to the AC controller without additional adapters. High-quality 4mm / G4 gold connectors are also ready for the Motor and can be connected immediately. This means that the system is immediately ready for use without further soldering work, ie Plug & Play.

The Konect 100A WP can be easily programmed with a separate programming connection and programming card (optional) without having to disconnect the existing connection in the vehicle in advance. In this way, the numerous functions of the AC controller can be adapted to your own needs in an instant and without major complications. Alternatively, of course, it can also be programmed using the built-in setting button on the switch.
Last but not least, the controller also has a number of safety systems to protect the electronics, such as LiPo batteries, RC kit, controls and servos, from damage due to, for example, polarity reversal, overheating, short circuit or undervoltage.

FEATURES

This electronic AC speed controller is ideal for 1/8 scale vehicles when it comes to off-road or other events. Whether it's a Buggy, Short Course, Stadium Truck or Truggy with the Konect 100A WP controller (manufactured by HobbyWing market leader), you'll have maximum driving fun, Mega performance and zero problems. This controller is also the first choice for larger and heavier 1/10 vehicles, such as the 4WD Monster Trucks or Short Course with all-wheel drive, provided that an engine with an outside diameter of 42 mm can be installed. br />

• Waterproof and dustproof regulator
• Powerful 6V BEC with 5A
• Dual port for connecting a fan or programming card
• Power switch including a separate button for setting
• Proportional brake with 9 different programs for max. Braking force and brake brake (automatic braking force in idle / neutral position)
• The maximum braking force can be set in 5 different modes from 25% to 100% or switched off completely.
• 9 adjustable acceleration / punsh curves from soft to Mega aggressive acceleration
• Reverse can be deactivated
• In LiPo mode, the lower voltage limit can be set almost continuously from 2.6 V / cell to 3.4 V / cell. This can also be completely deactivated if necessary
• completely ready for connection for battery and motor (Plug & Play) soldering is not necessary

Technical data of the controller

• Constant current: 100A
• Peak current: 650A
• Input voltage: 2-4S LiPo battery, 6-12 NiMH / NiCd battery
• BEC output power: 6V / 5A
• Internal resistance: 0.001 Ohm
• Engine limits: 2S LiPo / 6Article NiMH = up to 6000Kv, 3S LiPo / 9cell. = up to 4000Kv and 4S LiPo / 12cl. up to 2600Kv.
• Type: Sensorless system
• Connector system:
• Battery side: 2x T / DYN for connecting two LiPo
• Regulator / Motor: 4mm / G4 gold connectors
• Receiver: JR / Graupner connector
• Dimensions approx .: 59.5 x 48 x 22 mm with fan
• Weight: approx. 173 g

Suitable for models

• 1/8 Buggy
• 1/8 Short Course
• 1/8 Truggy
• 1/8 Monster
• 1/10 Monster
• 1/10 Truggy & Trucks
• 1/10 Short Course
