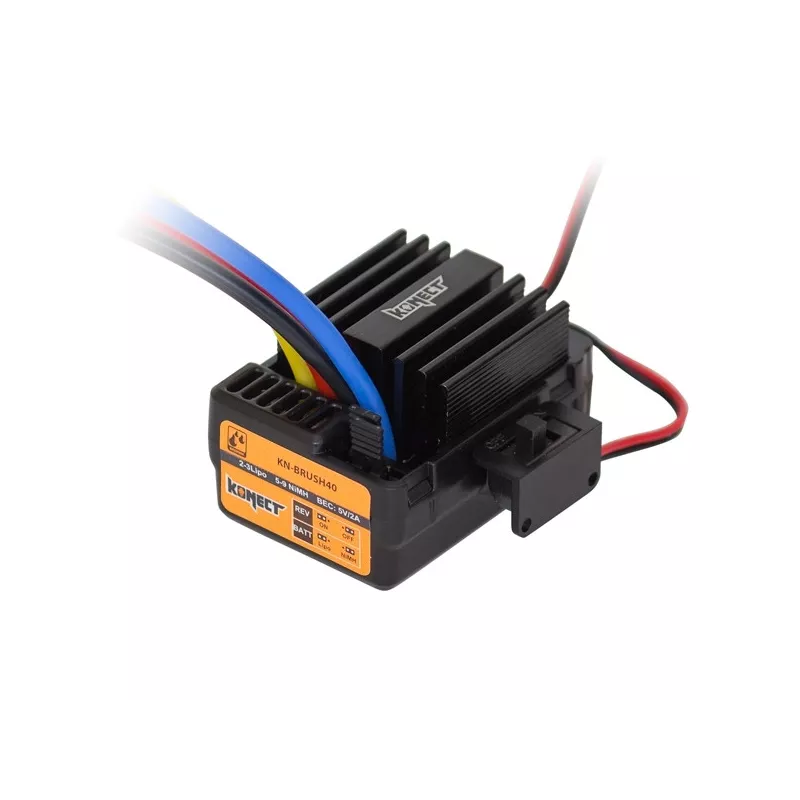

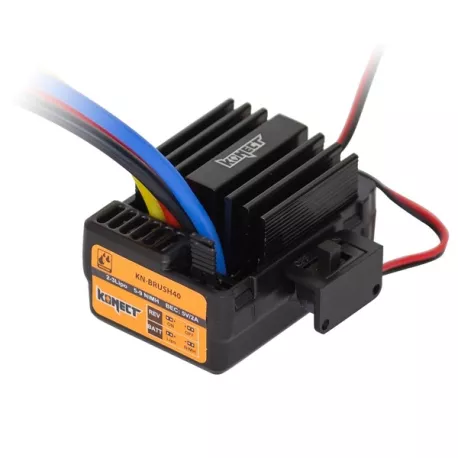

DC controller for 1/10 On and Off-Road, Drift, Rally, Buggy, Truggy, Short Course, Monster Truck
Find your reliable partner in terms of maximum performance of your RC chassis.
The controller with a permanent load of 40A is waterproof and has a BEC, which provides 5V with a power supply of 2A, and is therefore sufficient for all areas of use common in this scale. Using a jumper, you can easily switch between LiPo and NiMH operation, no time-consuming programming is required. Reversing can also be easily deactivated if required, which can be an advantage, especially when racing.
Last but not least, the controller also has a number of safety systems to protect the electronics, such as the battery and the LiPo controller, from damage, such as overheating or undervoltage.
FUNCTION:
The ideal controller for almost all vehicles in 1/10 scale, whether off-road or on asphalt, whether it is touring cars, buggies, Drift, Rally, Short Course, Monster truck, Stadium Truck and Truggy. With the Konect 40A WP electronic DC controller, you will have maximum driving pleasure, mega performance and zero problems.
- Waterproof and dustproof regulator
- Powerful 5V BEC with 2A
- Aluminum heatsink for optimal cooling during operation
- Switch
- Proportional accelerator and brake for sensitive driving behavior
- Reverse can be deactivated
- Suitable for LiPo batteries
- complete Ready to connect for battery and motor (plug & play) no soldering is required anymore
TECHNICAL PARAMETERS:
- Constant current: 40A
- Peak current: 180A
- Input voltage: 2-3S LiPo batteries, 5-9-cell NiMH / NiCd batteries
- BEC output power: 5V / 2A
- Internal resistance: 0.002 Ohm
- Engine limitation: 2S LiPo / 6čl. NiMH = more than 12 revolutions, motor speeds of sizes 550 and 540 less than 30,000 at 7.2 V, 3S LiPo / 9 cells. NiMH = more than 18 rpm, engine speeds 550 and 540 rpm less than 20,000 at 7.2 V.
- Type: brush motors (without AC)
- Connector system: Battery side: Tamiya connector, Regulator / Motor: 4mm gold contact sockets
- Receiver: JR / Graupner
- Dimensions approx .: 46.5 x 34 x 28.5 mm
- Weight: approx. 65 g
RECOMMENDED USE
- 1/10 Monster
- 1/10 Truggy & Trucks
- 1/10 2 and 4WD Buggy
- 1/10 Short Course
- 1/10 Desert Truck
- 1/10 Rally and Drift
- 1/10 On-Road
