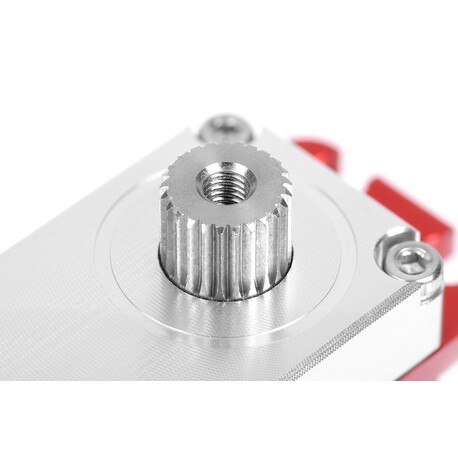

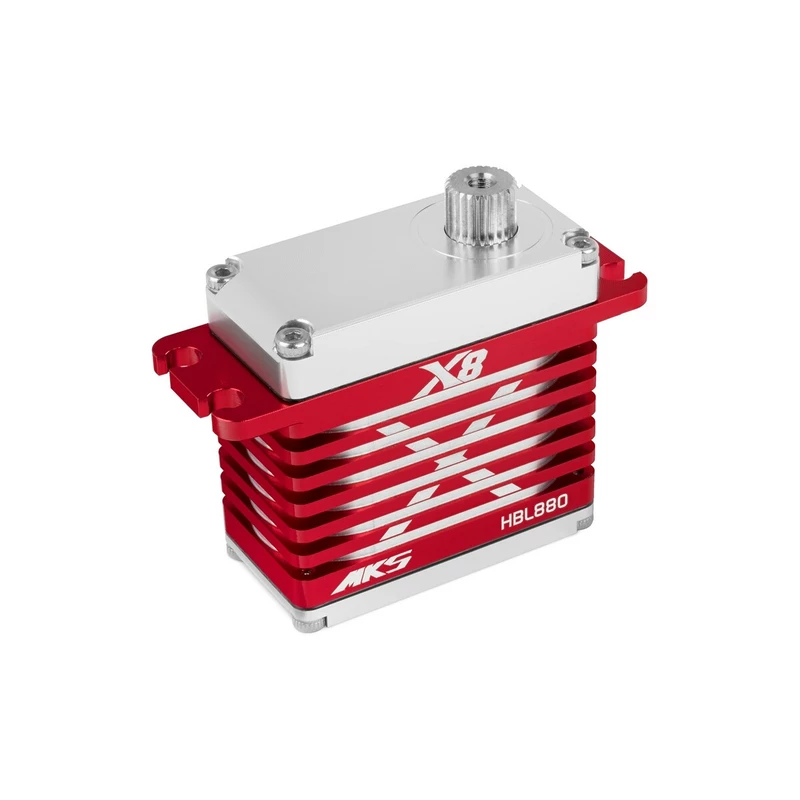

Powerful and ultra-fast narrowband (760µs) digital standard servo with AC motor, metal gears and output shaft mounted on two ball bearings. Ideal for 700-800 size helicopter trim rotors, compatible with most 760µs gyros and flybarless units. For perfect cooling even at very high loads, the servo is housed in an aluminum box with a ribbed middle part. The servo is not programmable.
Supply voltage 6.0-7.4 V (nominal).
| Servo size | Standard |
| Servo type | Digital |
| Programmable | No |
| Thrust at 6.0 V [kg•cm] | 8.2 |
| Thrust at 7.4 V [kg•cm] | 10.1 |
| Thrust at 8.2 V [kg•cm] | 11.19 |
| Speed at 6.0 V [s/60°] | 0.044 |
| Speed at 7.4 V [s/60°] | 0.036 |
| Speed at 8.2 V [s/60°] | 0.032 |
| Control pulse width in neutral [µs] | 760 |
| Repetition frequency [Hz] | 560 |
| Deadband [ms] | 0.0004 |
| Servo transmissions | Metal |
| Ball bearings | 2× |
| High voltage | Yes |
| Power supply [V] | 6 - 8.4 |

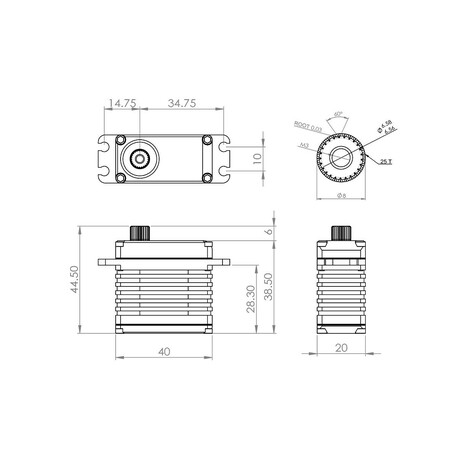

| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 38.5 |
| Weight [g] | 73.2 |
| Intended for | Helicopters |
