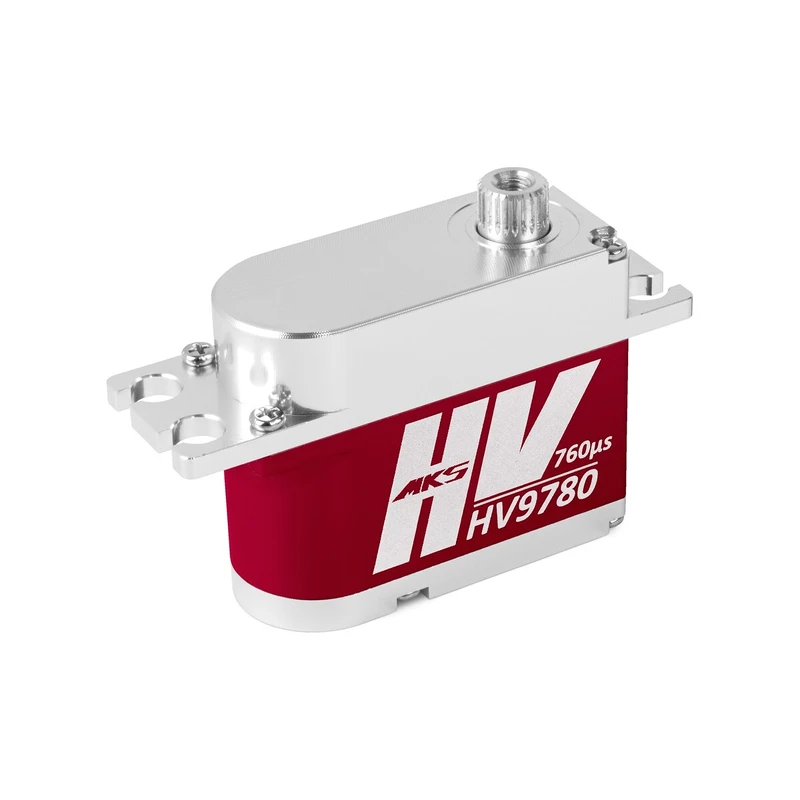

HV9780 (0.04s/60°, 4.5kg.cm)
MKS08005
MKS
Ultra fast digital narrowband (760µs) digital mini servo 38g with metal gears with supply voltage range 6.0-8.4V, 2xBB. Ideal for 500 size helicopter trim rotors, compatible with most 760µs gyros and flybarless units. Pull 3.3kg.
Express delivery
Large selection of carriers
Satisfaction guarantee
Ultra fast narrow band (760µs) digital mini servo with metal gears with output shaft mounted on two ball bearings. Ideal for 500 size helicopter trim rotors, compatible with most 760µs gyros and flybarless units. For perfect cooling even under heavy load, the servo is housed in an aluminum box. The servo is not programmable.
Supply voltage 6.0-7.4 V (nominal).
Servo size | Mini |
Servo type | Digital |
Programmable | No |
Thrust at 6.0 V [kg•cm] | 3.3 |
Thrust at 7.4 V [kg•cm] | 4 |
Thrust at 8.2 V [kg•cm] | 4.5 |
Speed at 6.0 V [s/60°] | 0.055 |
Speed at 7.4 V [s/60°] | 0.045 |
Speed at 8.2 V [s/60°] | 0.04 |
Control pulse width in neutral [µs] | 760 |
Repetition frequency [Hz] | 560 |
Deadband [ms] | 0.0005 |
Servo transmissions | Metal |
Ball bearings | 2× |
High voltage | Yes |
Power supply [V] | 6 - 8.4 |
Length [mm] | 35.5 |
Width [mm] | 15 |
Height [mm] | 28.55 |
Weight [g] | 38.01 |
Intended for | Helicopters |
