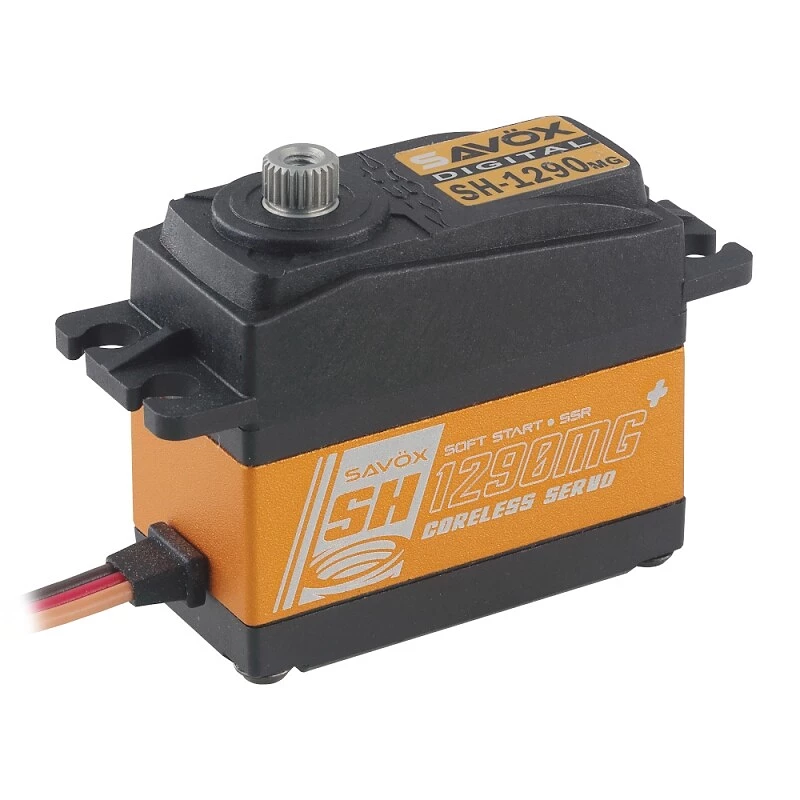

SH-1290MG+ Digital Servo (5kg-0.05s/60°)

This is a Savox SH-1290MG servo that combines top technology. The servo is fitted with a Coreless motor and metal gears.

Function:

• Extremely strong metal gears ensure long life and durability.
• Coreless motor for smooth operation and efficiency.
• Ideal for RC Heli (back propeller)

• Torque/force at 4.8V - 4.0kg
• Torque/force at 6.0V - 4.5kg
• Speed @ 4.8V - 0.06s/60 degrees
• Speed @ 6.0V - 0.05s/60 degrees
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Operating voltage 4.8 - 6.0V
• Weight: 56.4g

• Operating temperature: -10 ° - 50 °C
• Operating current (no load): 200 mA at 4.8 V, 250 mA at 6.0 V
• Continuous Current (Latching): 2400mA at 4.8V, 3000mA at 6.0V
• Quiescent current: 5mA @ 4.8V, 5mA @ 6.0V
• Wire length: 300 +/- 5 mm
• Output gear: 25 teeth
• Bearings: BB
• Operating range: 100° (1000 › 2000 µs)
• Neutral position: 1.520 µs
• Pulse width range: 800 › 2200 µs
• Maximum range: Appx 154 ° (800 › 2200 µs)
• Refresh rate: 333 Hz
• Engine type: Coreless engine
