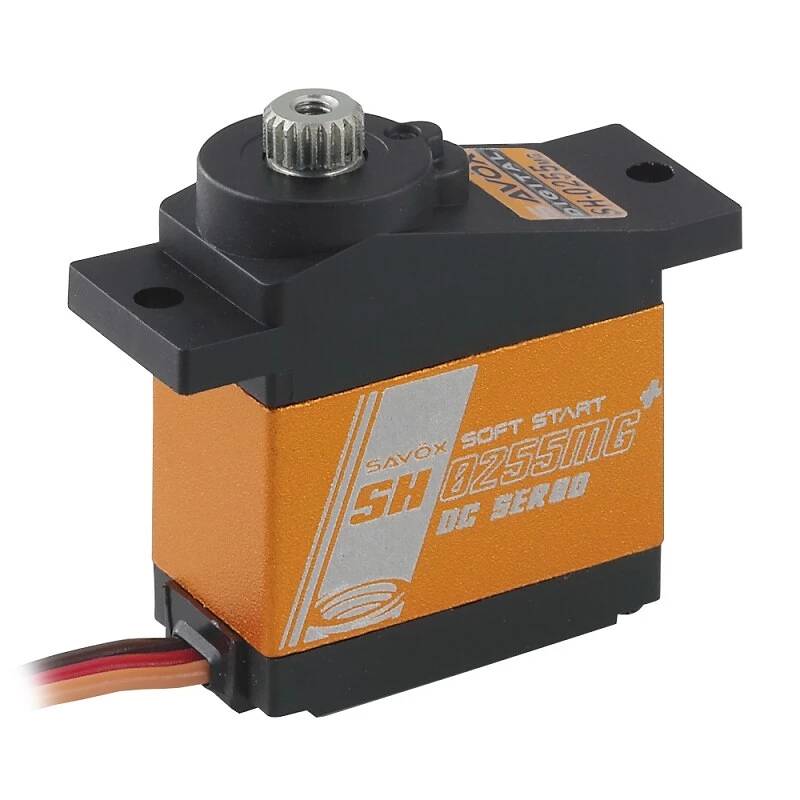

SH-0255MG+ Digital Servo (3.9kg-0.13s/60°)
SAVOX-SH0255MG
SAVOX
Digital micro servo with DC motor and metal gears, 1x ball bearing, 3.1/3.9kg at 4.8/6.0V and 0.16/0.13s at 4.8/6.0V, weight 15.8g, 22.8x12x29.4mm. Operating voltage 4.8 - 6.0V.
Express delivery
Large selection of carriers
Satisfaction guarantee
The best-selling and most universal digital branded micro servo
A completely redesigned servo with these features
- SOFT START : Soft start (protects the servo and the rudder control mechanism when the on-board electronics are turned on)
The Savox SH-0255MG+ Micro Digital Servo has enough torque to match much larger standard size servos and outperform other competing micro size servos.
Function:
- The metal transmission ensures durability and long life.
- Aluminum middle housing allows for cooler operating temperatures.
- Ideal for small aircraft and 450 size helicopters.
Specifications:
- Torque at 4.8 V - 3.1 kg
- Torque at 6 V - 3.9 kg
- Speed @ 4.8V - 0.16s / 60 degrees
- Speed @ 6v - 0.13s / 60 degrees
- Dimensions L x W x H (mm): 22.8 x 12.0 x 29.4
- Weight: 15.8 g
Specifications
- Operating temperature: -10 ° - 50 ° C
- Operating current (no load): 180mA @ 4.8V, 240mA @ 6.0V
- Continuous Current (Latch): 1200mA at 4.8V, 1400mA at 6.0V
- Quiescent current: 5mA @ 4.8V, 5mA @ 6.0V
- Wire length: 250 ± 5 mm
- Output gear: 21 teeth
- Bearings: 1BB
- Operating travel: 90 ° (1000 › 2000 µs)
- Neutral position: 1500 µs
- Pulse width range: 750 › 2250 µs
- Maximum travel: Appx 145 ° (750 › 2250 µs)
- Refresh rate: 240 Hz
- Motor type: DC
