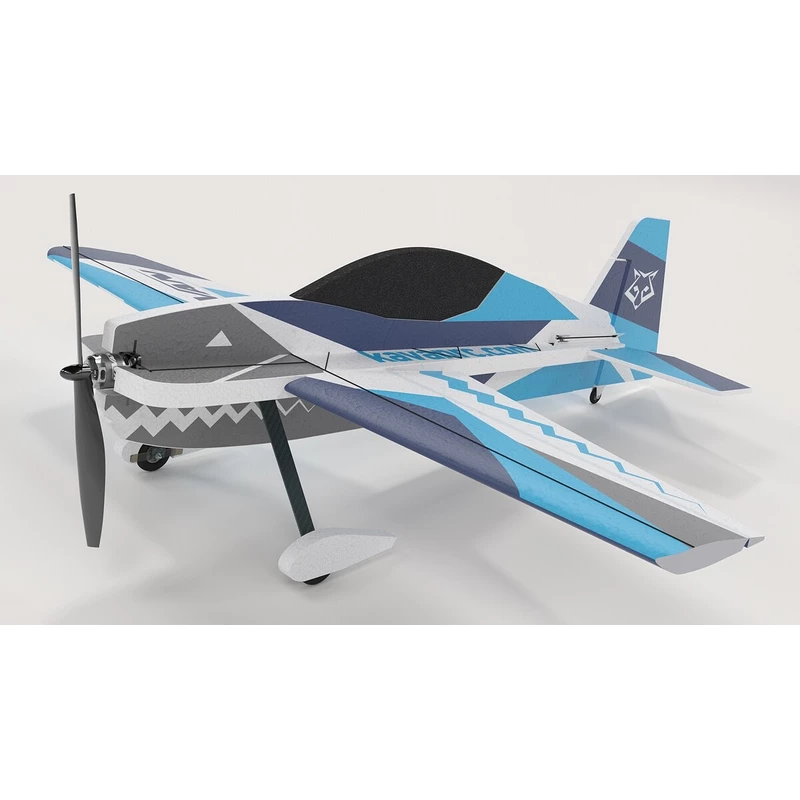

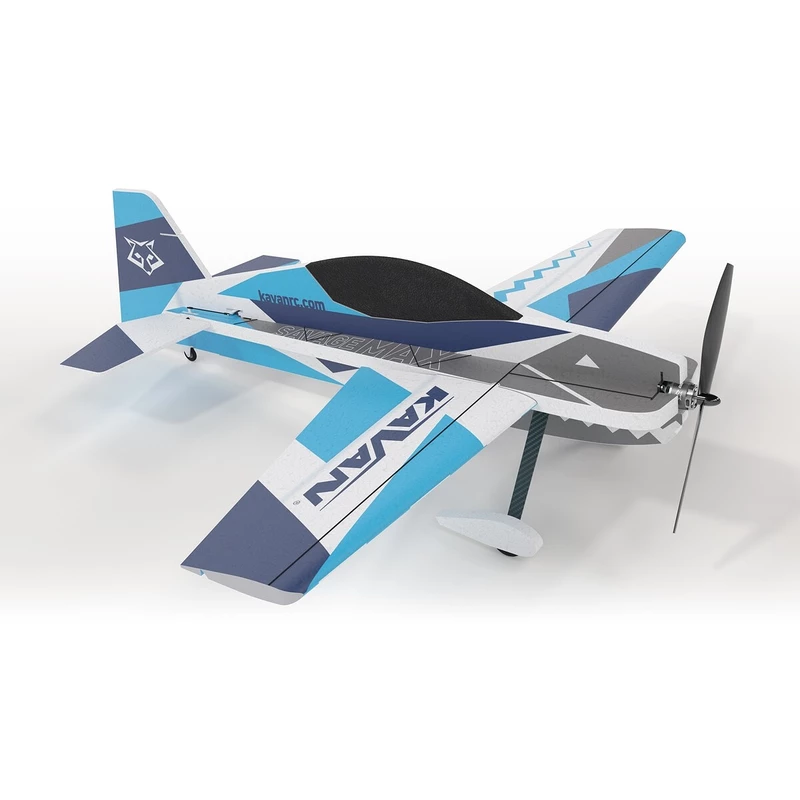

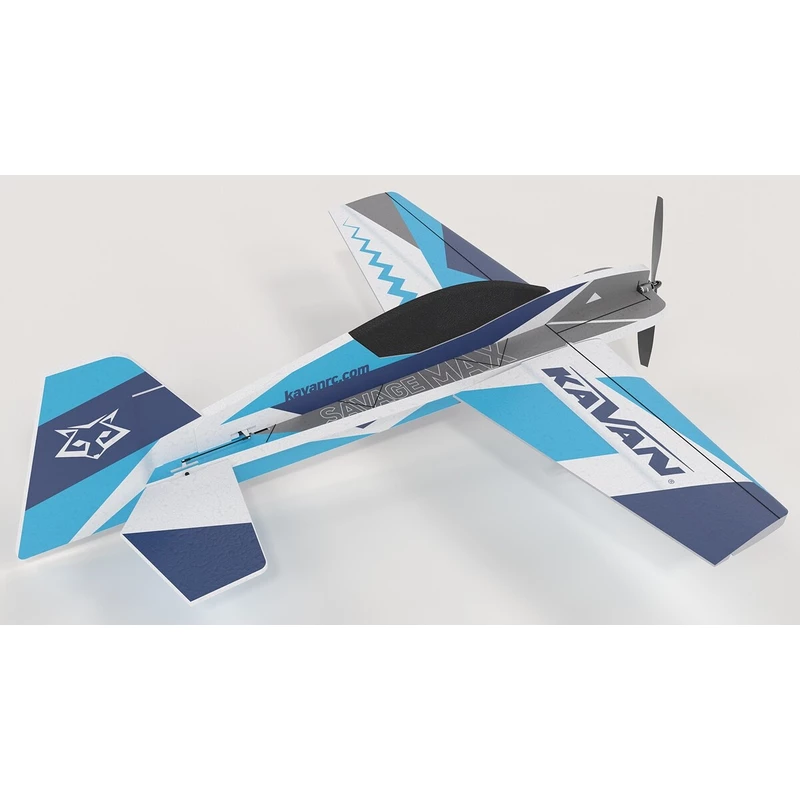

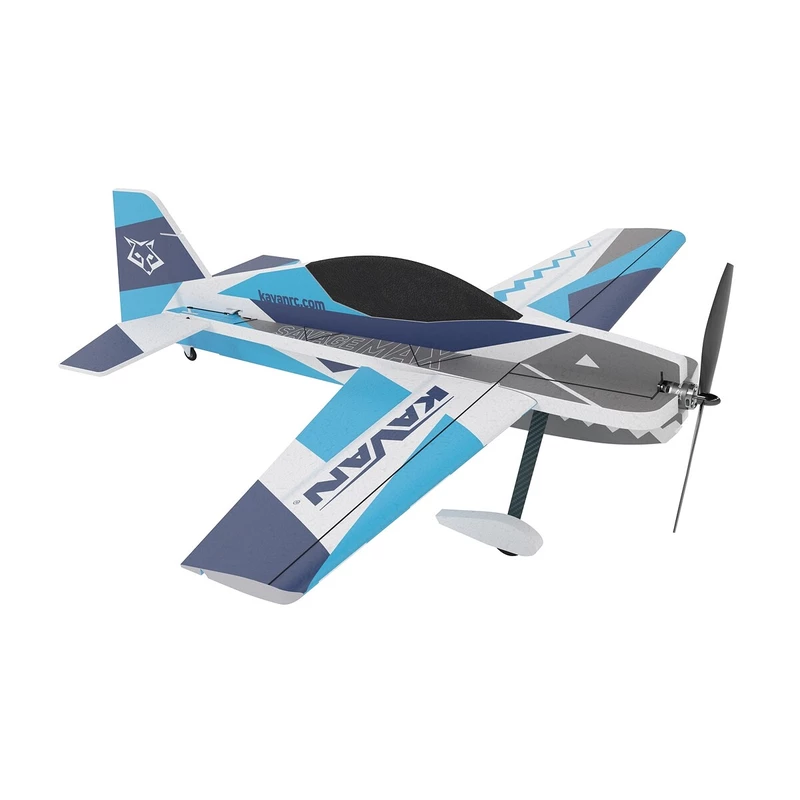

KAVAN Savage MAX 1080mm Kit - blue

SAVAGE MAX is a high-performance 3D park-fly aerobatic special made of foam EPP designed to be powered by 350-500 W AC electric motors. and perform all the other 3D pieces! It is also designed for less experienced pilots; anyone who already has at least some experience with acrobatics and is able to fly reliably with the previous model of toss, headland and twist can fly with it with smaller deviations. Thanks to the low weight of the model, a possible accident due to "hand entanglement" does not hurt much - and EPP parts are so easy to repair!

The one-piece wing with large ailerons has a symmetrical profile, strength is provided by carbon beams and, of course, there are prepared shafts for servos. The fuselage is profiled with a horizontal part thoroughly reinforced with carbon flanges and a vertical part with a large side surface for perfect behavior in knife flight. The well-thought-out construction includes plywood engine beds anchored to the fuselage using carbon flanges. Elevator servo shafts and rudders are ready in the fuselage. The tail surfaces are also made of EPP, half of the large floating elevator is mounted on a carbon tubular beam, which rotates in a 3D printed bearing in the fuselage. The ailerons, rudder and elevator are controlled by short straight carbon or steel rods. The main chassis is carbon with two light wheels and EPP covers; 4 screws are attached to the supporting laminate board anchored to the fuselage with 3D printed plastic brackets. The spur with a 3D printed console and a light foam wheel is coupled to the turn signal.

To control the model, you will need at least a four-channel RC kit, which should have at least the ability to set double and exponential deviations.

For undemanding recreational flying, a common analog microservo with metal gears such as KAVAN GO-13MG, Hitec HS-65MG, etc. is suitable. If you are serious about acrobatics, you should use strong and fast digital servos with metal gears such as KAVAN GO-1013MG, Hitec HS-5065MG etc.

For propulsion, we recommend the AC electric motor KAVAN PRO 3536-1000, FOXY 3536-1000, Model Motors AXI 2814/16 V2 or similar with an APC 11x4.7SF propeller when powered by a 3S LiPo battery or 10x4.7SF when using a 4S LiPo.

The speed controller should have a load capacity of at least 40 A, and especially if you use strong and fast digital servos, it should have a powerful switched BEC power stabilizer, such as KAVAN PRO-40SB or KAVAN R-50SB.

A three- or four-cell LiPo battery 1300-1800 mAh with a load capacity of at least 40C is suitable for power supply.

SAVAGE MAX was designed and manufactured in the Czech Republic.

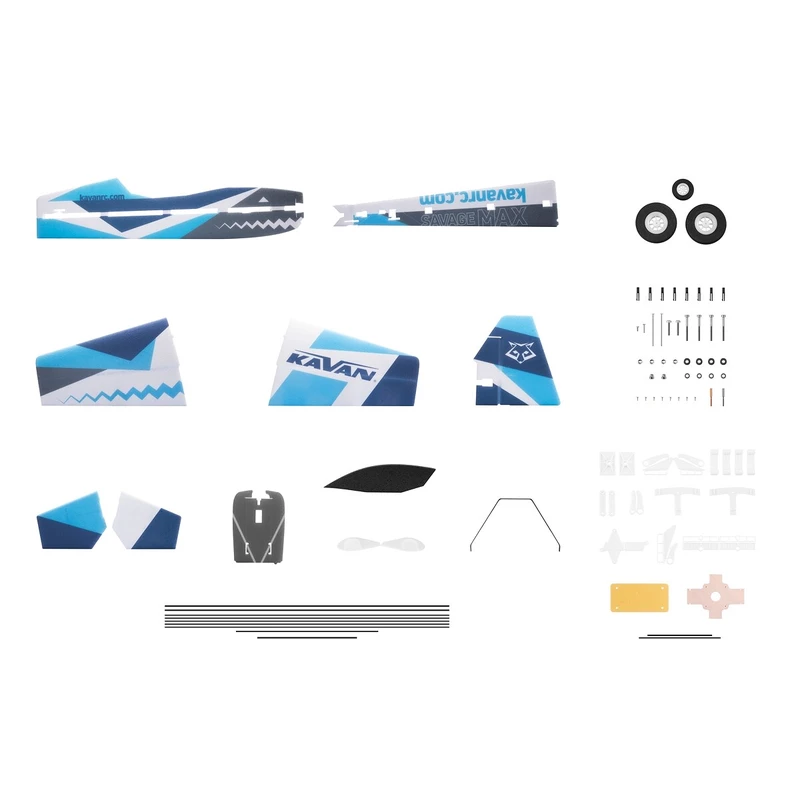

The kit contains: printed parts of the fuselage, wings, tail surfaces and chassis covers cut from EPP foam, plywood engine bed, 3D printed plastic parts, carbon reinforcements, levers, forks, drawbars and other small accessories, carbon chassis with light wheels, detailed picture instructions to the construction.

Notice

Pursuant to Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on drones and unmanned system operators from third countries and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for operations Unmanned aircraft operators and pilots of unmanned aerial vehicles (classic aircraft models, multicopters, drones) that weigh more than 250 g or carry a camera or other sensor capable of capturing personal data are obliged to register (in the Czech Republic with the Civil Aviation Authority) . More information can be found here: Registration of drone operators and pilots

Recommended drive and RC equipment:
