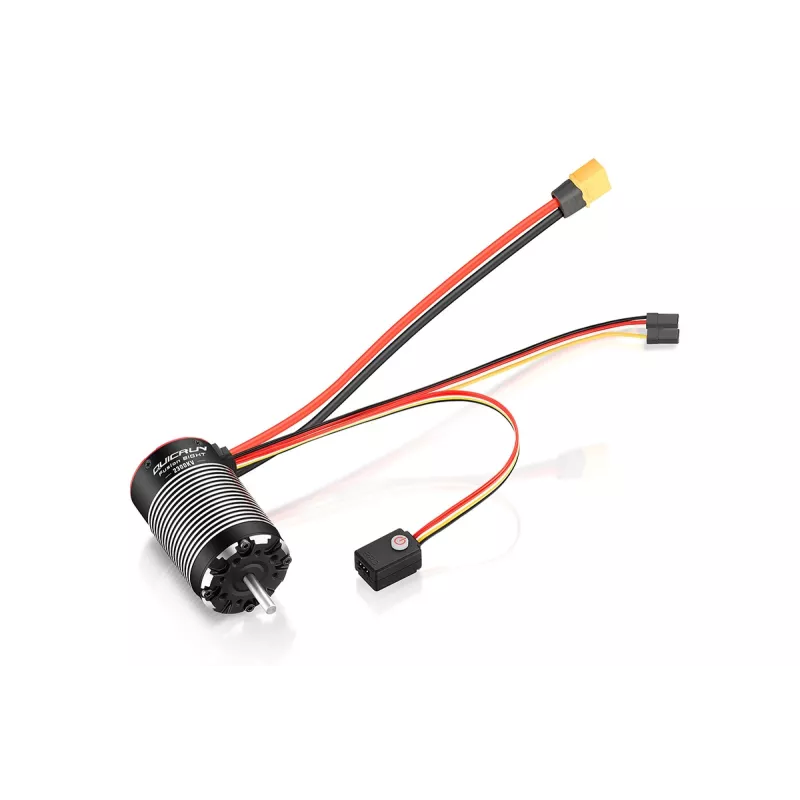

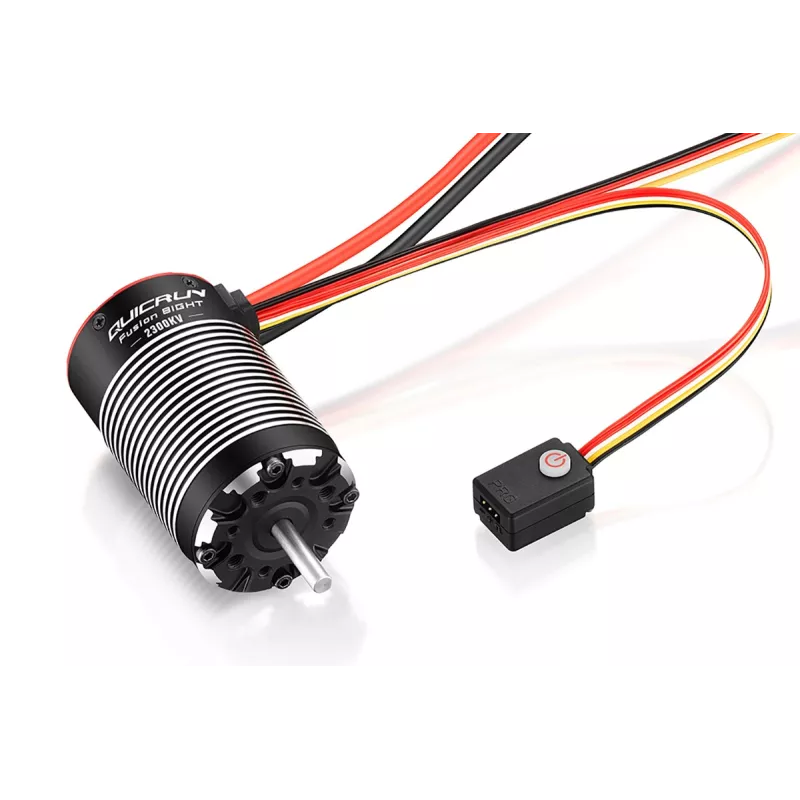

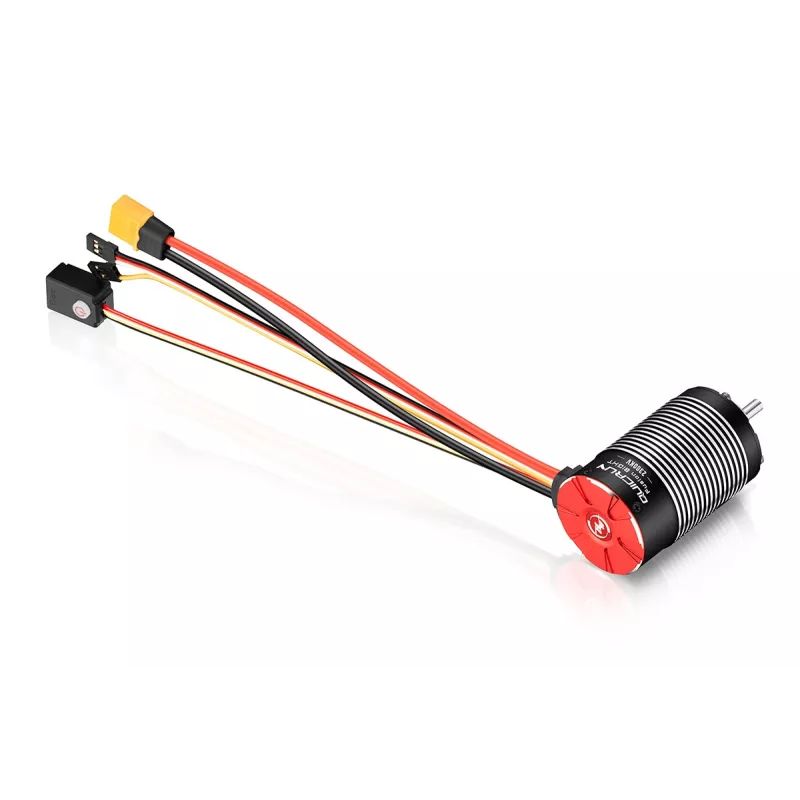

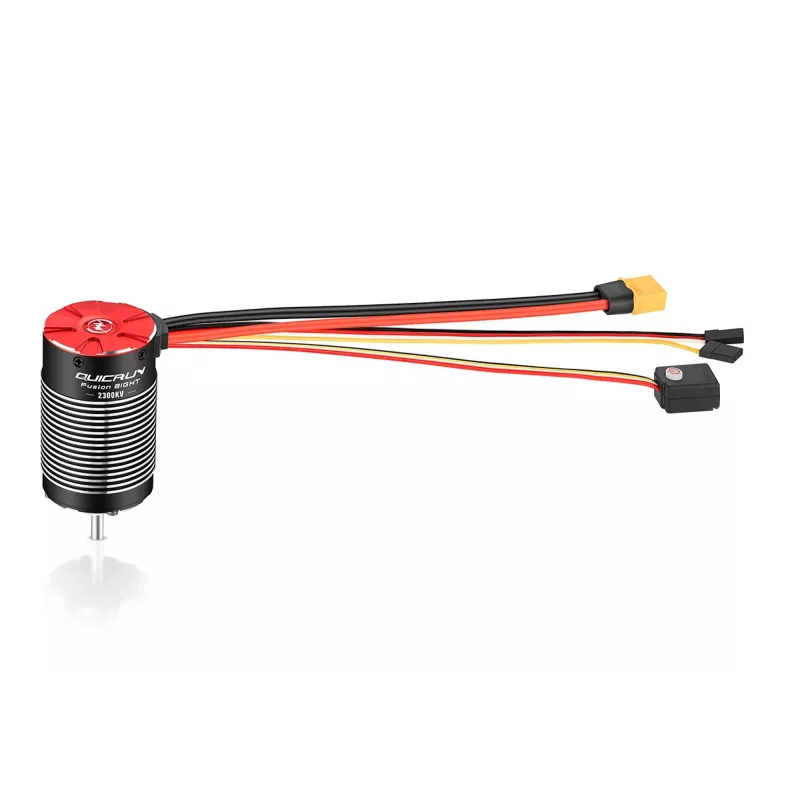

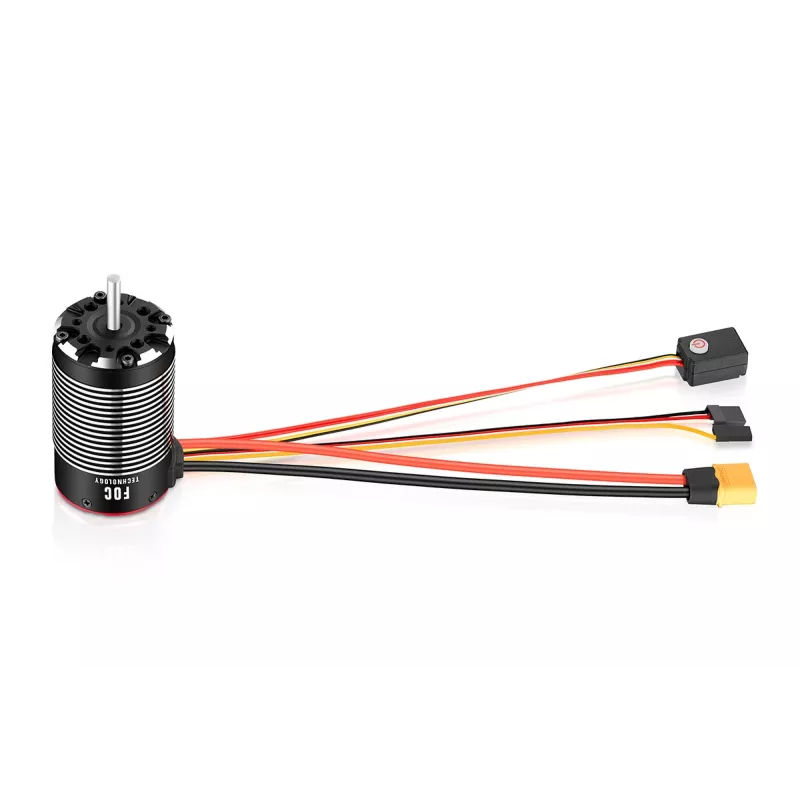

QuicRun Fusion 8IGHT 2300KV with integ. 80A regulator

A high-end sensored brushless motor with KV 2300 rpm per V with integrated 80A speed controller specially developed for 1:8 RC rock crawlers. The compact design saves weight and greatly simplifies on-board installation. The special FOC driving mode ensures high torque at low engine speeds; the waterproof and dustproof design ensures that no mud or water will stop you on your way. So, if you take driving your 1:8 crawler or expedition truck seriously, the compact QUICRUN Fusion 8IGHT from Hobbywing is the right one for you!

Function

• Specially developed for 1:8 rock crawlers
• 42 mm diameter four-pole sensor-controlled AC motor with integrated 80 A/240 A controller
• For powering 2-4S LiPo (6-12 cells NiMH), XT60 connector
• Compact dimensions (only 69 mm long), low weight
• Waterproof and dustproof design (meets IP67/IEC 60529 standard)
• Waterproof and dustproof electronic switch
• Special FOC driving mode ensures high torque at low engine speeds
• Wide programming options, precisely adjustable resistance brake for ideal behavior on steep slopes and when climbing over boulders with the possibility of adjustment while driving using the auxiliary channel on the transmitter
• Powerful BEC stabilizer up to 6 A with selectable voltage of 6.0 V, 7.4 V or 8.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Programming with the Hobbywing LED Programming Box or the LCD Programming Box PRO

• General: Driving modes (including constant speed mode), Number of LiPo cells, Voltage protection, Thermal protection, BEC voltage, Motor rotation direction
• Throttle control: Maximum reverse power, Launch, Throttle neutral range, Progressivity of rev reduction
• Brake control: Resistance brake intensity (adjustable in real time while riding via the auxiliary channel on the transmitter), Resistance brake progressivity, Maximum braking effect
