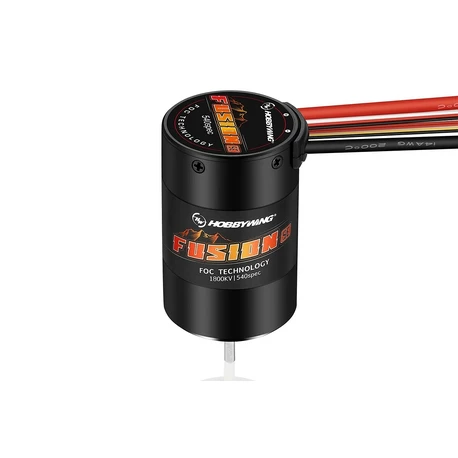

High-end 540 series sensor AC motor with KV 1800 rpm on V with integrated speed controller specially developed for 1:10 RC rock crawlers. The compact design saves weight and greatly simplifies on-board installation. The special FOC drive mode ensures high torque at low engine speeds; waterproof and dustproof construction ensures that no mud or water will stop you on your way. So, if you're serious about riding your crawler or expeditioner, Hobbywing's compact QUICRUN Fusion SE is for you!
Function
Programmable parameters

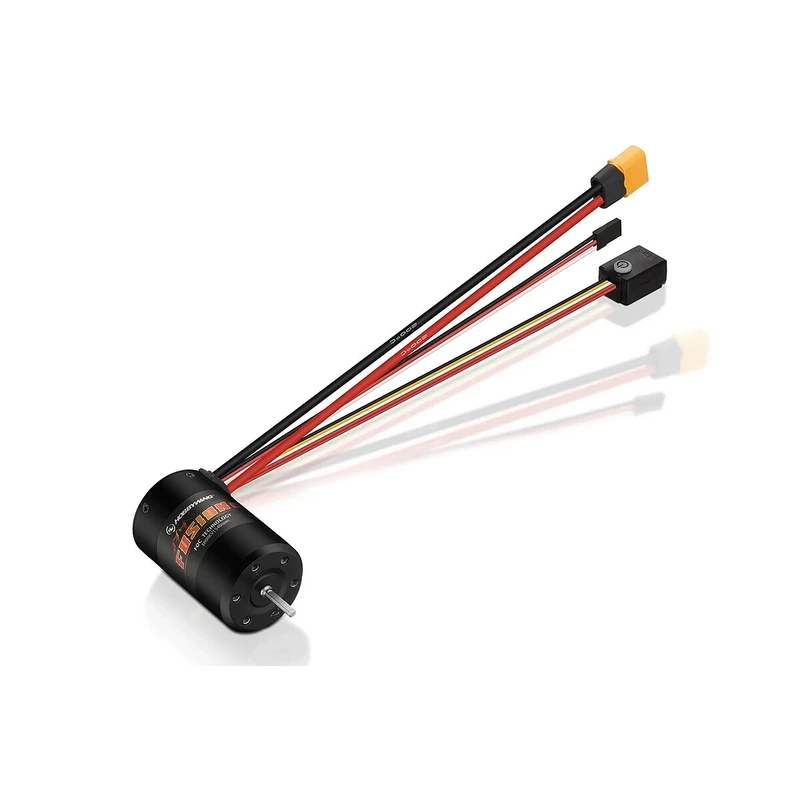

The regulator set includes: motor with integrated QUICRUN SE regulator with cables, operating instructions.
| Diameter [mm] | 36 |
| Length [mm] | 58.1 |
| Weight [g] | 201 |
| Shaft diameter [mm] | 3.175 |
| Revolutions per volt [rpm/V] | 1800 |
| Use | Car, Boat |
| Type | Alternate |
| Continuous current [A] | 40 |
| Max. peak current [A] | 160 |
| Li-Po [art.] | 2 - 3 |
| BEC voltage [V] | 6 - 7.4 |
| BEC current (max.) [A] | 4 |
| Regulation | Two-way |
| Programmable | Yes |
