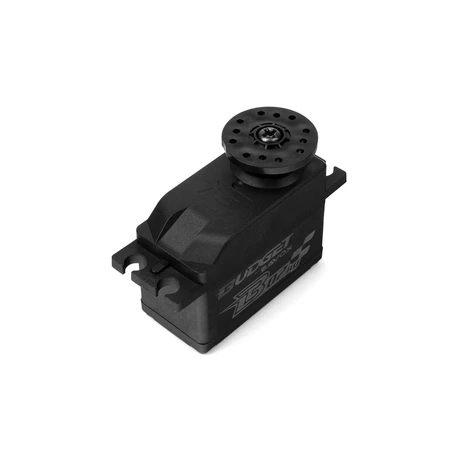

B-07MG ANALOG Low Profile servo (7kg-0.15s/60°)

SAVOX-B07MG
SAVOX
Standard LOW PROFILE servo with DC motor and metal gears, 2x ball bearing, 5.5/7.0kg at 4.8/6.0V and 0.19/0.15s at 4.8/6.0V, weight 46.0g , 40.8x20.2x31.7mm. Operating voltage 4.8 - 6.0V.
More info
In stock - main warehouse: > 10 pcs
Dates of delivery
Recommended retail price
18.48 €
Your price with VAT
()
15.28 €
Price without VAT
15.28 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    This is an ANALOG low-profile servo Savox B-07 MG LOW PROFILE" with metal gears and a DC motor.
    Function:

    • Super strong and precision made metal gear gears provide durability that will survive heavy use.
    • cheap but very high quality ANALOG servo with a pull of up to 7 kg !!!

    Specifications:
    • Torque/force at 4.8V - 5.5kg
    • Torque/force at 6.0V - 7.0kg
    • Speed @ 4.8V - 0.19s/60 degrees
    • Speed @ 6.0V - 0.15s/60 degrees
    • Dimensions L x W x H (mm): 40.8 x 20.2 x 31.7
    • Operating voltage 4.8 - 6.0V
    • Weight: 46g

    Specifications
    • Operating temperature: -10 ° - 50 °C
    • Operating current (no load): 220 mA at 4.8 V, 240 mA at 6.0 V
    • Continuous Current (Latching): 1300mA at 4.8V, 1600mA at 6.0V
    • Quiescent current: 6mA @ 4.8V, 5mA @ 6.0V
    • Wire length: 250 +/- 5 mm
    • Output gear: 25 teeth
    • Bearings: BB
    • Operating range: 90° (1000 › 2000 µs)
    • Neutral position: 1,500 µs
    • Pulse width range: 700 › 2100 µs
    • Maximum range: Appx 130 ° (700 › 2100 µs)
    • Refresh rate: 333 Hz
    • Motor type: DC motor
