SKY RC e4S charger

The SKY RC e4S charger with built-in balancer is a very simple "box" charger for recreational riders and flyers with mains power for charging 2-4S LiPo, LiFe, LiHV and 6-8cell NiMH batteries. It is an ideal addition to "set" kits allowing easy charging at home or an excellent companion on trips when you don't want to "drag" a large, heavy and expensive charger with you. The charger's 60 W power is similar to that of chargers with a Raytronic C15 class display; You can set the charging current to 1, 2, 3 or 5 A. And so that you can have an idea of the battery charge status even without a display, the LED indicator indicates the charge levels of 25%, 50%, 75% and 100% during charging.

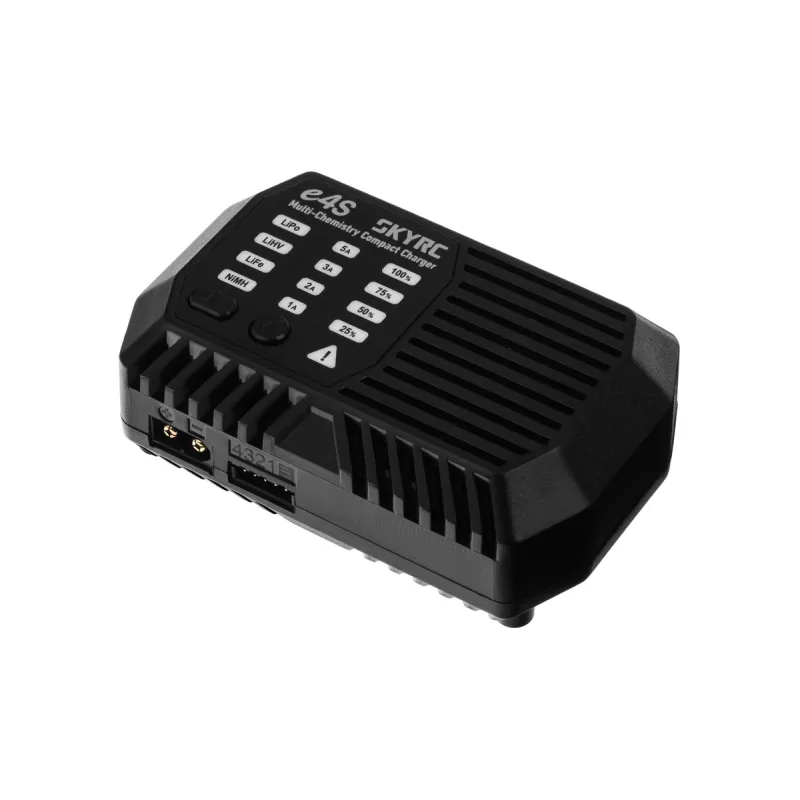

The battery to be charged is connected using power cables connected to the charger output (XT60 socket) and to the built-in balancer via a service connector; the charger is equipped with a universal balancer socket (2S, 3S, 4S) for JST-XH system connectors. To connect a set with a different service connector, you will need a corresponding adapter.

Basic functions

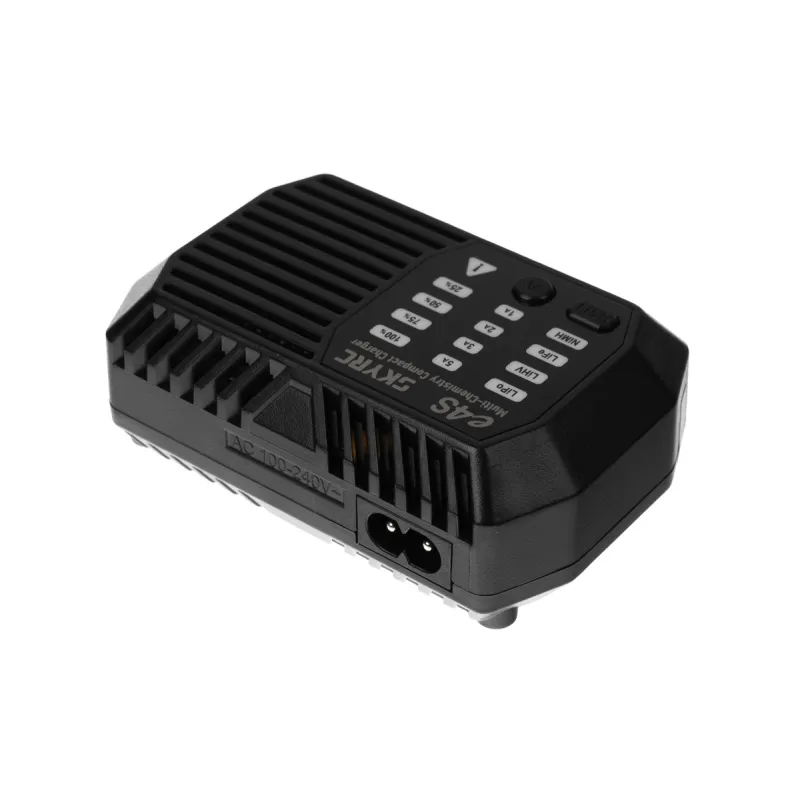

• Mains power supply 100-240 V/50-60 Hz
• For charging 2-4s LiPo/LiFe/LiHV cells or 6-8 NiMH cells
• Charging current switchable 1, 2, 3 or 5 A
• Max. charging power 60 W
• Charging using the "constant current/constant voltage" method for LiPo/LiFe/LiHV, delta-peak detection for NiMH

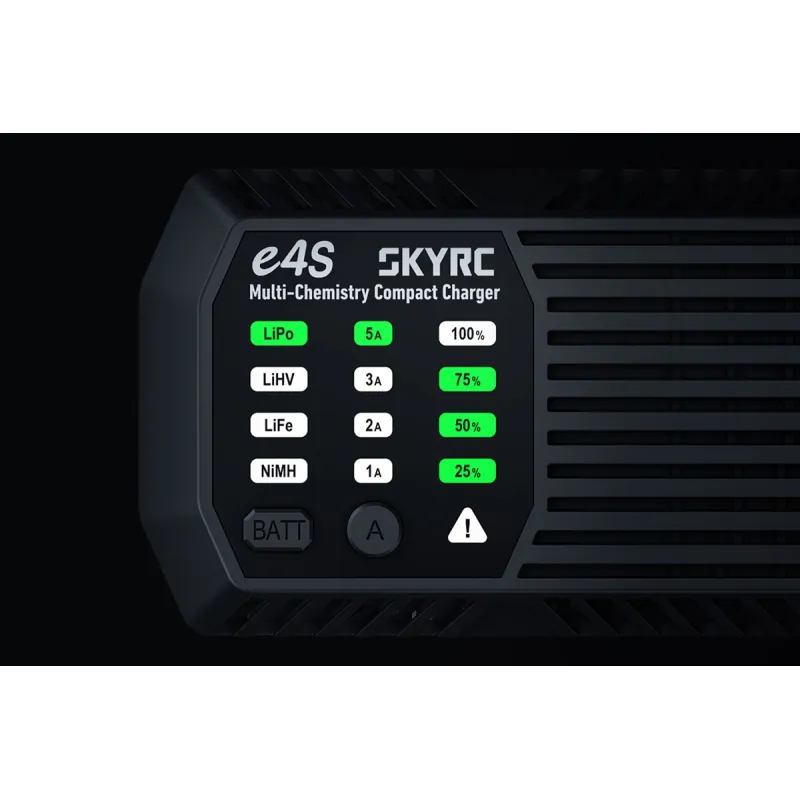

• Charger operating states signaled by LED diodes (charging current, charge status 25, 50, 75, 100%)
• Reports error states (incorrect connection, excessive voltage difference between individual cells, cable breaks)
• Universal JST-XH balancer socket (2S, 3S, 4S) for LiPo/LiFe/LiHV
• Compact plastic case, pocket-sized

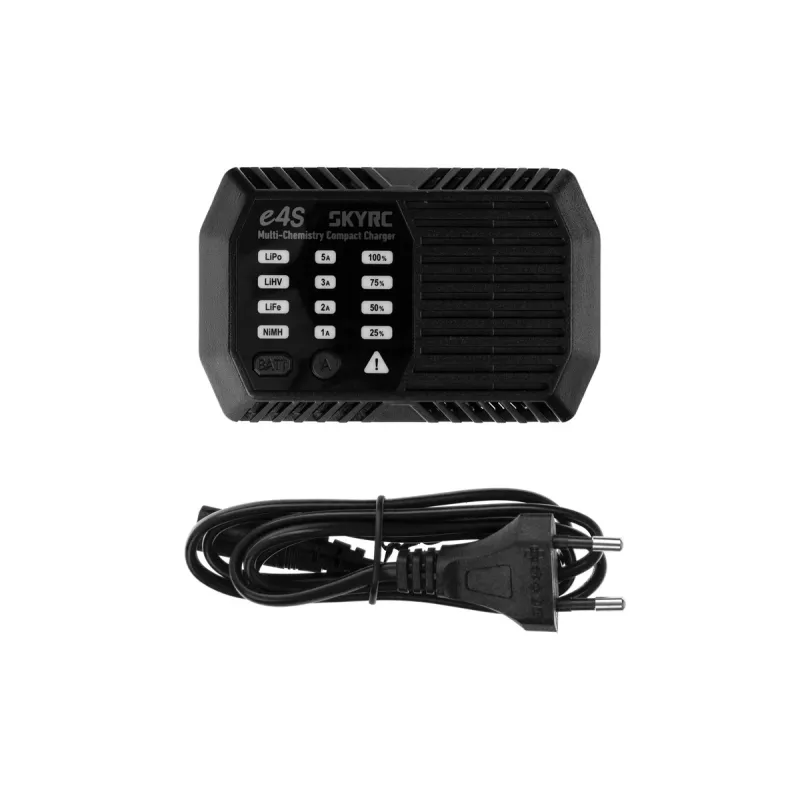

Charger set includes: SKY RC e4S charger, mains power cable, instructions.
