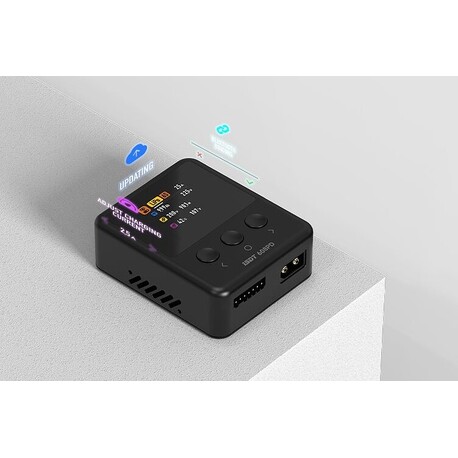

iSDT charger 608PD

The ISDT 608PD 240W miniature charger is a powerful intelligent charger with power supply from a car battery, a stabilized network source or a USB-C source with very simple and clear operation. The 608PD allows you to charge common types of cells (NiMH, Li–Po, LiHV/ULiHV, LiFe, Pb), in addition, it is equipped with a built-in six-channel balancer that ensures safe charging of lithium batteries. The charger is equipped with a color LCD display and three programming buttons, which will provide you with the possibility of comfortable and clear parameter setting, control and monitoring of the charging process.

In addition to miniature dimensions with high performance and intuitive operation, it is worth special mention:

• program for new types of "high-voltage" lithium batteries LiHV with a charging terminal voltage of up to 4.35 V and ULiHV with a terminal voltage of 4.45 V (terminal voltage adjustable in the range of 4.25-4.50 V)
• adjustable final charging voltage for lithium batteries (allows gentler charging, which aviators like, or, on the contrary, brutal overcharging, which is favored by "car enthusiasts")
• adjustable charging end voltage for lead-acid batteries (2.00-2.45 V/cell; allows charging of all types of lead-acid batteries)
• the ability to set up, start and monitor charging via Bluetooth in the ISD Link mobile app (Android and iOS)
• the possibility of functioning as a USB–C/PD2.0/3.0/3.1 charger for smartphones, tablets and similar devices

Overview of basic functions and parameters:

• 5-30V DC power supply via XT60 socket or USB-C (5-28V)
• For charging 1-16 NiMH cells, 1-6 Li–Po/Li–Fe/LiHV cells or 2–24 V lead-acid batteries
• Adjustable charging current 0.5 A–10.0 A (max. 240 W) - to fully utilize the power of the charger, the power source must have a voltage of at least 24 V
• Termination of charging using automatic delta-peak for NiMH accumulators
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiMH batteries
• Adjustable final charging voltage for lithium and lead-acid batteries
• The charger can work as a USB-C/PD2.0/PD3.0/PD3.1 charger for smartphones, tablets and similar devices when powered by a 5-30V model battery pack (with adjustable voltage limit to prevent deep discharge)
• Easy firmware update via USB-C port

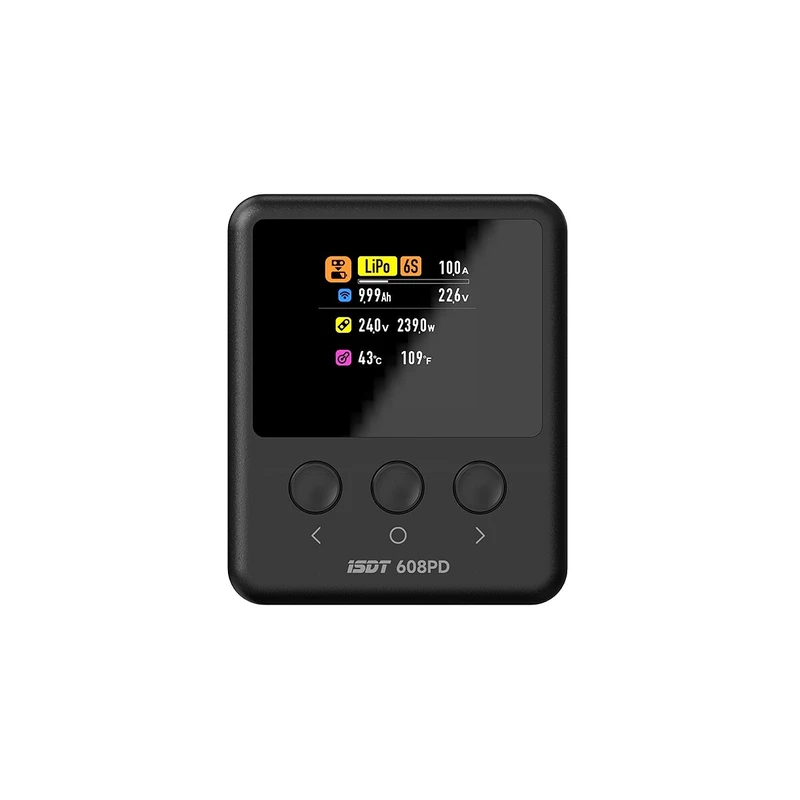

• Backlit color LCD display with a simple and clear menu and display of parameters during charging
• Programming buttons for easy and clear setting and control of the charger
• A number of warning messages contribute to safe operation (incorrect battery type/voltage, supply voltage drop, etc.)
• Fan for forced cooling
• Compact plastic box, miniature dimensions

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors, allowing direct connection of battery power cables and JST-XH service connectors of sets 2-6S - if you use sets with XT60 and JST-XH connectors, you can completely dispense with charging cables and adapters. You can use standard Sky RC or KAVAN adapters to connect the service connectors of other systems.

The charger set includes: ISDT 608PD charger, instructions.
