ASW 15b 2.3m Kit

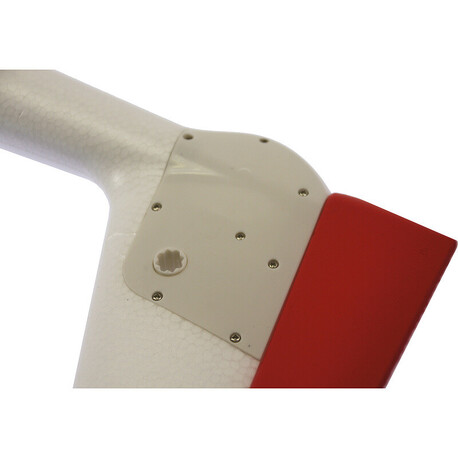

Floating elevator

The elevator and rudder servos are in a plastic box that is very easy to install. Extension cables from the servos to the receiver are routed in the fuselage. The axis of the floating elevator is part of this box and is internally grooved for the coupling of the two halves of the elevator.

Elevator installation

The end of the elevator clutch is equipped with a fuse, which is secured after insertion. During disassembly, just hold the plastic button on the elevator and both halves will be disconnected.

Folding propeller

The package includes a folding propeller with a cone and a driver on a shaft with a diameter of 4 mm. The cone is shaped and exactly corresponds to the molding of the front part of the fuselage.

Installation of the drive unit

An engine with a diameter of up to 36 mm can fit in the engine bed space, the regulator can be placed on the side of the hull using Velcro.

Assembly of the wing

The connection of the wing halves with the fuselage is solved very practically. Each part of the wing is equipped with a bracket with a hole into which a locking pin is inserted after sliding both parts into the fuselage.

Aileron servos

The aileron servos are inserted into the prepared pockets in the wing and covered with a cover. Then just install the tie rods on the rudder levers.

Recommended Spektrum transmitters

To pair the BNF version model, we recommend modern SPEKTRUM programmable transmitters:

•

• 6-channel DX Spektrum DX6e DSMX series transmitter with telemetry, 250 models in memory .

• NX Spektrum NX6 DSMX series 6-channel transmitter with the latest trends, Smart Technology compatibility, USB port and WiFi connection option .

• 8-channel transmitter of the NX Spektrum NX8 DSMX series with the latest trends, Smart Technology compatibility, USB port and WiFi connectivity .


Recommended batteries

We recommend a 3-cell (11.1 V) LiPol drive battery to power the model.

•

• Continuous flight LiPo battery Spektrum Smart LiPo 11.1V 2200mAh 30C IC3 with Smart technology

• Higher Quality 100C Spektrum Smart LiPo 11.1V 2200mAh 100C IC3 with Smart Technology

• New generation battery G2 Spektrum Smart G2 LiPo 11.1V 2200mAh 50C IC3 with Smart G2 technology


Spektrum batteries with Smart technology currently represent the most modern and safest way to maintain and charge batteries. The benefits of Spektrum Smart technology can be found here.

Recommended chargers for conventional LiPol and Smart batteries

If you decide to use modern Smart LiPo batteries in RC models of airplanes or helicopters, or to charge your batteries from other manufacturers, then we recommend the following chargers:

•

• Network charger Spektrum S155 with one output 1x 55W .

• Network charger Spektrum S1100 with one output 1x 100W .

• Network charger Spektrum S2100 with one output 2x 100W .

• Network charger Spektrum S2200 with two outputs 2x 200W .


Accessories for normal operation

For the normal operation of flying RC models, you need suitable adhesives, a set of tools and a storage case for LiPol batteries. From our assortment, we recommend a quality set of 1.5/2.0/2.5/3.0mm allen screwdrivers and Modelcraft Phillips screwdrivers (set of 6). Modelcraft mini pliers in a case (set) will certainly come in handy for assembly, and for cutting a Modelcraft cutting knife with an A6 pad.

For quick repair of model airplanes, we recommend the fast-curing 4-minute Epoxy glue. From our offer, we recommend Speed Epoxy 4 min. 71g

Protective covers for accumulators

Protective packaging is intended to limit the risk associated with the transport and charging of accumulators. LiPo accumulators, while maintaining small dimensions and low weight, can provide high discharge currents and have a large capacity. The LiPo battery is particularly susceptible to mechanical damage and therefore needs to be thoroughly protected.
