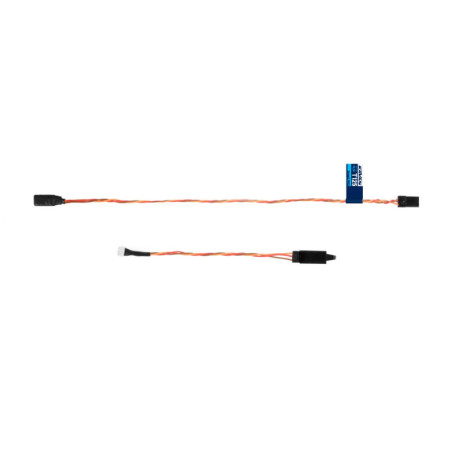

KAVAN Smart PRO Temp125SP Temperature sensor

KAV16.21530
Kavan
Miniature telemetric temperature sensor for measuring motor temperature for connection to KAVAN Smart PRO series speed controller. Compatible telemetry systems: KAVAN/FrSky FPort, Futaba S.BUS2, JETI Duplex EX, Multiplex MSB, Graupner HoTT, Powerbox P2Bus. Set
More info
In stock - main warehouse: 8 pcs
Delivery options
Recommended retail price
23.61 €
Your price with VAT
()
19.51 €
Price without VAT
19.51 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee

    Recommended for you

    Obrázek
    switches

    Three-position switch in stick, 1 piece

    GRAUPNER Modellbau
    GR33000.14
    Knipl with three-position switch (torque on both sides) intended for transmitters MC-32 Hott.
    In stock - main warehouse
    21.14 €
    In stock - main warehouse
    Obrázek
    switches

    R button in stick switch, 1 pc.

    GRAUPNER Modellbau
    33000.44
    Knipl with button for transmitters MC-32 Hott.
    In stock - main warehouse
    21.14 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    telemetry

    Telemetry spectrum - extension cable 60cm

    Spektrum
    SPMA9552
    Three-core extension cable for basic aeronautical telemetry sensors Spectrum 60 cm long.
    In stock at the store
    17.56 €
    In stock at the store
    Obrázek Obrázek 2
    telemetry

    PRM-01 Telemetry voltage module

    1RL0054
    Telemetry module for measuring the voltage of 1S to 6S powered lithium battery. For Radiolink R9DS and R12DS receivers. It is connected to the battery via a service connector (JST-XH).
    In stock - main warehouse
    16.26 €
    In stock - main warehouse
    Obrázek Obrázek 2
    telemetry

    KAVAN Smart PRO Temp125C Temperature sensor

    Kavan
    KAV16.21525
    Miniature telemetric temperature sensor for measuring motor temperature. Compatible telemetry systems: KAVAN/FrSky FPort, Futaba S.BUS2, JETI Duplex EX, Multiplex MSB, Graupner HoTT, Powerbox P2Bus. Setting via transmitter, Jetibox or PC USB interface K
    In stock - main warehouse
    15.60 €
    In stock - main warehouse
    Obrázek
    telemetry

    Futaba CA-RVIN-700 voltage sensor cable

    FUTABA
    FUT0141
    CA-RVIN-700 cable for measuring external voltage (eg drive battery) in the range 0 - 70V. Only for compatible telemetry receivers with special port (R3008SB, R7008SB, R7014SB, R7108SB).
    In stock - main warehouse
    14.30 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    telemetry

    Traxxas phone holder for TQi and Aton transmitters

    TRAXXAS
    TRA6532,TRX6532
    Do you want a perfect overview of transmitter settings and current model information? Traxxas has made a holder for smartphones that can be easily attached to Traxxas TQi transmitters or a transmitter
    In stock - main warehouse
    13.97 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    telemetry

    Telemetry spectrum - connecting Y-cable

    Spektrum
    SPMA9553
    The connecting Y-cable is used for simultaneous connection of the temperature and voltage sensor to the TM1000 or TM1100 module.
    In stock - main warehouse
    17.56 €
    In stock - main warehouse

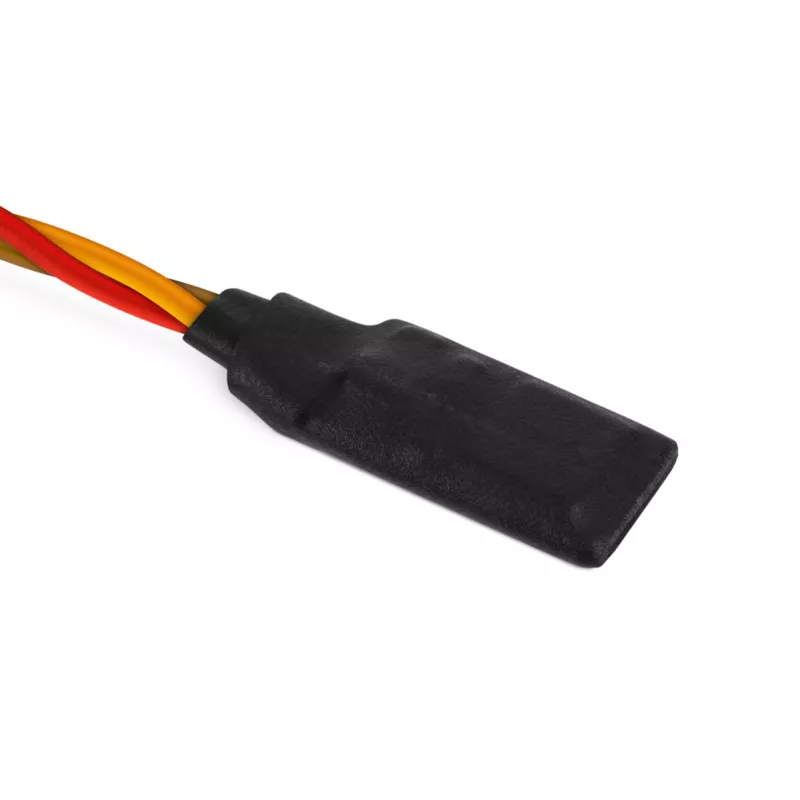

    Temp125SP is a miniature temperature sensor that supports several telemetry protocols. It can be used to measure the temperature of an electric motor in the range of -10 to +125 °C. Temp125SP can communicate with KAVAN Smart PRO controllers, sending the measured temperature directly to the controller. The sensor also contains a memory reserved for predefined motor parameters. In case you do not need to directly tune the settings of the KAVAN Smart PRO controller, use the Temp125SP sensor to save the motor parameters. As a result, the controller will load the motor settings and adjust its own behavior and preferences.

    • Small dimensions.
    • The sensor is connected directly to the KAVAN Smart PRO controller.
    • Minimum/maximum temperature values are recorded.
    • Automatic telemetry detection: KAVAN/FrSky FPort, Duplex EX, Hott, MSB, S.BUS2, P2Bus.
    • Adjustable high temperature alarms.
    • Configuration using the transmitter or the MAV Manager PC software.
    • Upgradable firmware.
    • Communication with KAVAN Smart PRO controllers.

    Package includes: Temp125SP temperature sensor, instructions.

    Online user manual: wiki.kavanrc.com

    Power supply [V] 3.5 - 12
    Length [mm] 21
    Width [mm] 10
    Height [mm] 4
    Weight [g] 1
    Délka [mm]
    21
    Hmotnost [g]
    1
    Šířka [mm]
    10
    Výška [mm]
    4
    Napájení [V]
    3.5 - 12
