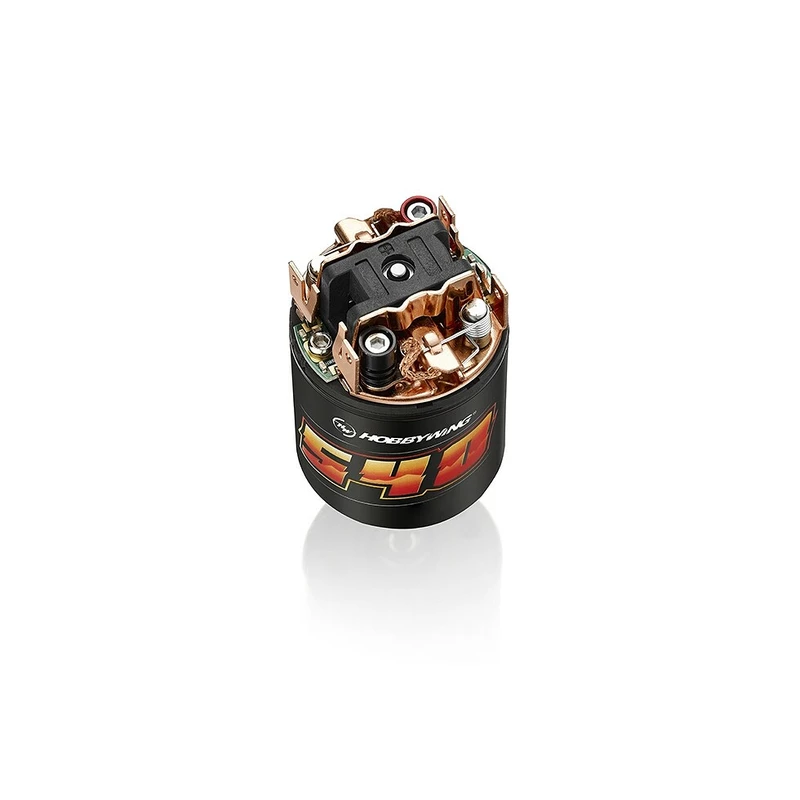

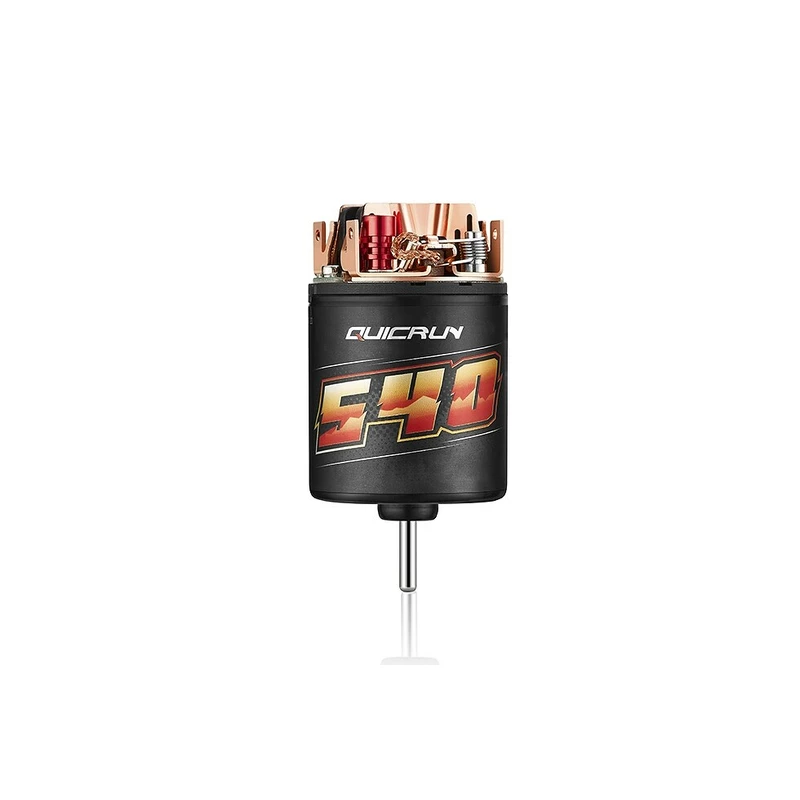

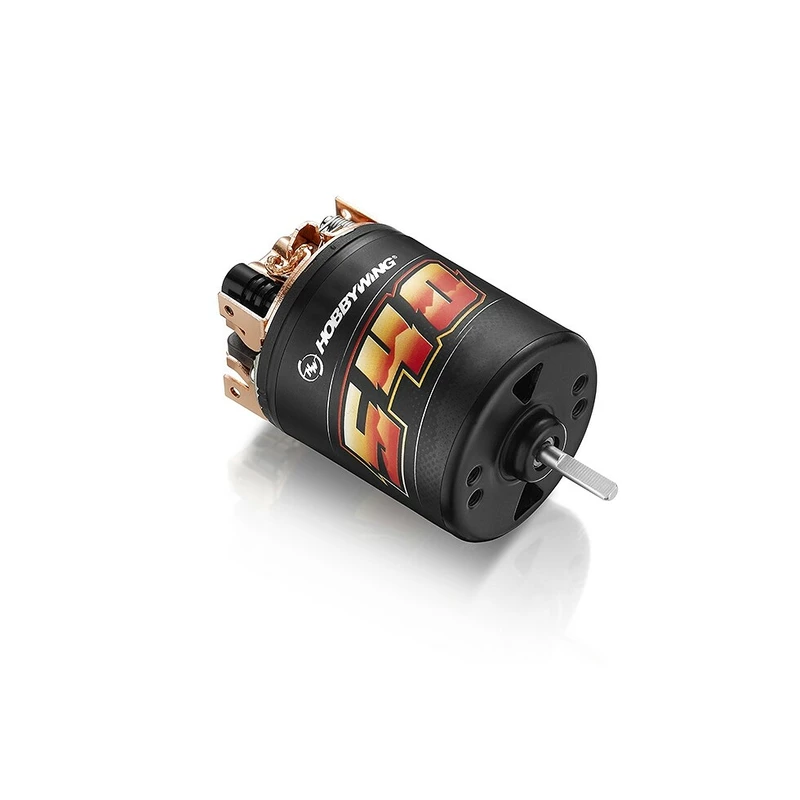

QuicRun Brushed 540 40T

HW30404314
HOBBYWING car
DC QUICRUN motor size 540/40 threads, use for 1:10 road cars, buggies, crawlers and 2WD trucks. Exchangeable carbons, adjustable timing -20° to +20°.
More info
In stock - main warehouse: 8 pcs
Friday 23.10. May with you
Delivery options
Your price with VAT
(PTU PL 23%)
22.00 €
Price without VAT
17.88 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee

    Recommended for you

    Obrázek Obrázek 2
    Last items in stock
    DC

    Traxxas Titan 550 Marine DC motor

    TRAXXAS
    TRA1585,TRX1585
    Traxxas 550 Series 24 Thread Marine DC Motor for Boats. Power supply max. 14V. Without cable and connector.
    In stock - main warehouse
    22.80 €
    In stock - main warehouse
    Obrázek
    Last items in stock
    DC

    Arrma DC motor Mega 28T 380

    ARRMA
    ARA390305
    DC motor Arrma Mega 28T 380. Suitable for RC car models 1:18-1:14 (Arrma Grom). Power supply 2S LiPo.
    In stock - main warehouse
    22.40 €
    In stock - main warehouse
    Obrázek
    Last items in stock
    DC

    Losi DC motor 380 25T

    Losi
    LOS11002
    Losi DC motor, case size 380, 25 turns. Spare part for Losi Mini LMT RC model car.
    In stock - main warehouse
    22.40 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    DC

    QuicRun Brushed 540 30T

    HOBBYWING car
    HW30404313
    DC QUICRUN motor size 540/30 threads, use for 1:10 road cars, buggies, crawlers and 2WD trucks. Exchangeable carbons, adjustable timing -20° to +20°.
    In stock - main warehouse
    22.00 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    DC

    Krick Motor MAX Power 600

    Krick Modelltechnik
    KR-42124
    Krick Motor MAX Power 600 is a DC universal electric motor of the 600 series. Dimensions 37 x 57.3 mm, shaft 3.17 mm, supply voltage 2.4V - 12V, current up to 45A, weight 210 g.
    In stock - main warehouse
    22.00 €
    In stock - main warehouse
    Obrázek
    DC

    KONECT 550 DC motor, 20 turns

    KONECT
    KN-M550-20T
    20 threaded DC motor. Diameter: 36mm, length 57mm, motor shaft 3.175mm, operating voltage: 4.8-9.6V (4-8 NiCd / NiMH or 2S LiPo)
    In stock at the store
    21.20 €
    In stock at the store
    Obrázek
    DC

    FOXY 700 BB Turbo 12V DC motor

    FOXY
    3BD1035
    DC electric motor size "700" with a nominal voltage of 12 V. Operating voltage range 7.2–20 V, speed at a nominal voltage of 11600 rpm. Diameter 42.2 mm, housing length 66 mm, shaft diameter 5.0 mm, weight 350 g.
    In stock - main warehouse
    19.99 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    DC

    RUDDOG CRAWLER 5 slot, 16 thread motor

    RUDDOG
    RP-0274
    RUDDOG DC motors in size 540 are designed for all fans of CRAWLER models. They come in popular 5-slot and 3-slot variants and in six different windings. Double ball bearing motors have specially coated motor heads,
    In stock at the store
    19.99 €
    In stock at the store
    Obrázek Obrázek 2
    Last items in stock
    DC

    RUDDOG CRAWLER 3 slot, 55 thread motor

    RUDDOG
    RP-0272
    RUDDOG DC motors in size 540 are designed for all fans of CRAWLER models. They come in popular 5-slot and 3-slot variants and in six different windings. Double ball bearing motors have specially coated motor heads,
    In stock - main warehouse
    19.99 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    DC

    RUDDOG CRAWLER 5 slot, 13 thread motor

    RP-0273
    RUDDOG DC motors in size 540 are designed for all fans of CRAWLER models. They come in popular 5-slot and 3-slot variants and in six different windings. Double ball bearing motors have specially coated motor heads,
    In stock - main warehouse
    19.99 €
    In stock - main warehouse


    DC electric motors of the QUICRUN Brushed 540 series are ideal for tuning RC cars such as 1:10 road, off-road buggies, crawlers and 2WD trucks. Offering more power, more efficiency, adjustable timing, replaceable carbons, and easy repairability/parts replacement over conventional engines of this size. If you want to treat your model to a more powerful motor with a longer life and more adjustment options, the electric motors of the QUICRUN Brushed 540 series are the right ones for you!

    • More power compared to regular 540 series engines
    • Max. efficiency up to 17% higher compared to regular 540 series motors
    • Stable course of power and torque throughout the entire operating speed range
    • Adjustable timing in the range of -20° to +20° for ideal motor setting for both directions of rotation
    • High-quality replaceable carbons with a long service life
    • Modular design for easy maintenance and repair/parts replacement
    • Built-in anti-interference filter
    • Magnets with high temperature resistance, windings made of high purity copper

    Kit includes: : QUICRUN Brushed 540 motor, instructions.

    Voltage (nominal) [V] 7.4
    Voltage (max.) [V] 12.6
    Number of threads 40
    Number of poles 3
    Speed at rated voltage [rpm] 10500
    Regulator [A] 40 - 60
    Diameter [mm] 36
    Length (case) [mm] 53
    Shaft diameter [mm] 3.175
    Free shaft length [mm] 16.5
    Weight [g] 169
    Počet pólů
    3
    Počet závitů
    40
    Hmotnost [g]
    169
    Průměr [mm]
    36
    Průměr hřídele [mm]
    3.175
    Regulátor [A]
    40 - 60
    Napětí (jmenovité) [V]
    7.4
    Otáčky při jmenovitém napětí [ot./min]
    10500
    Délka (skříně) [mm]
    53
    Volná délka hřídele [mm]
    16.5
    Napětí (max.) [V]
    12.6
