Spectrum DC motor Company 540 35T

Package contents

The package contains a DC motor, manual EN, DE, FR, IT.

Characteristics

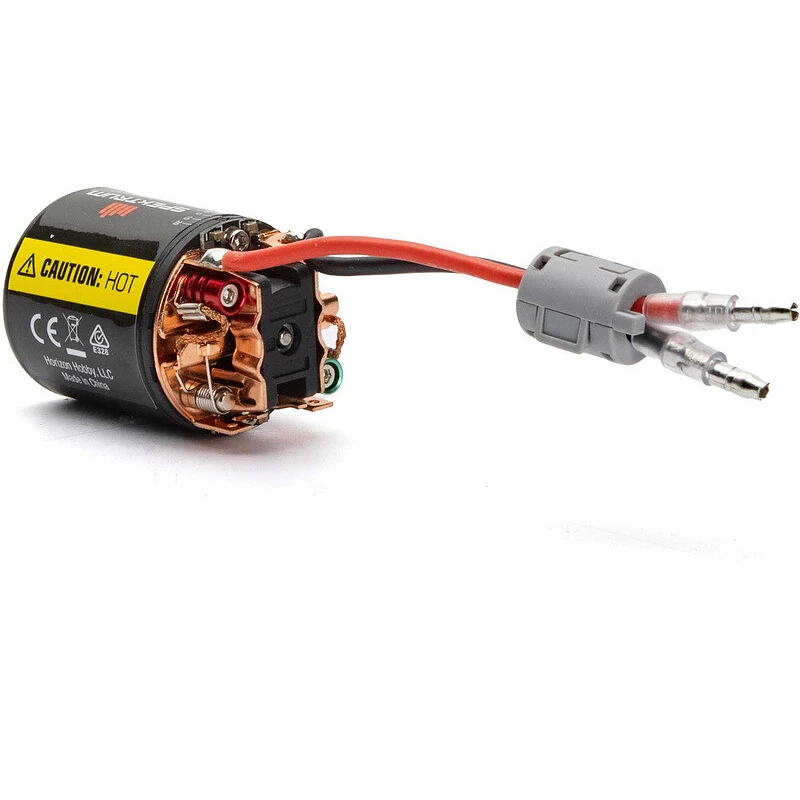

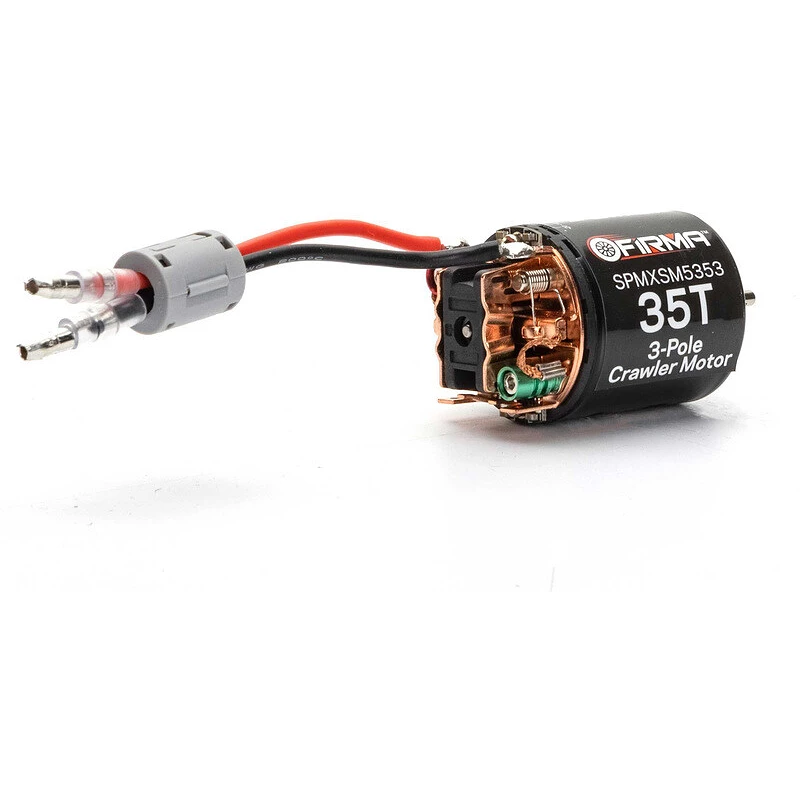

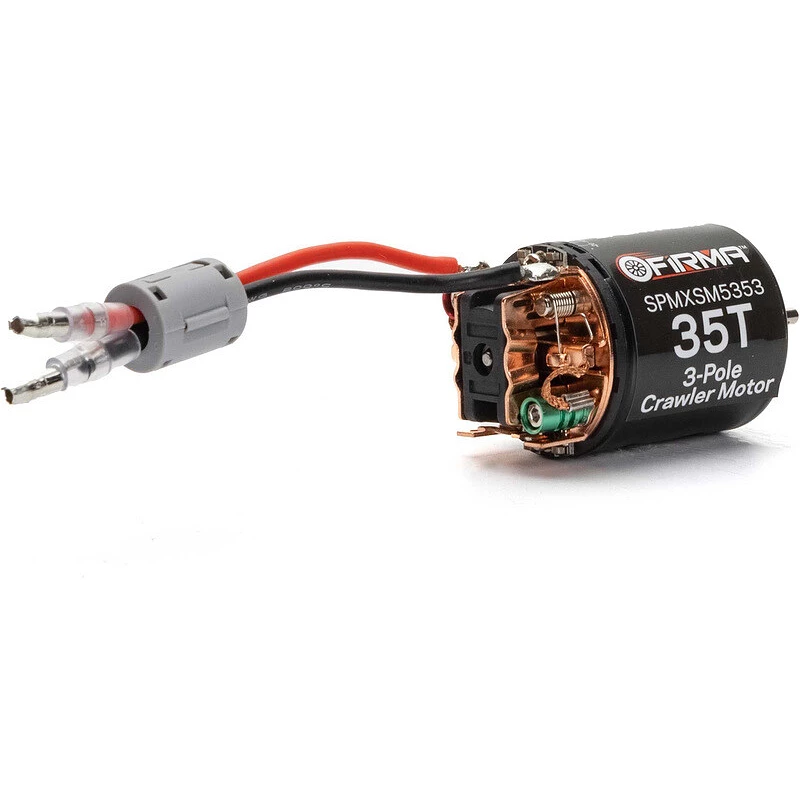

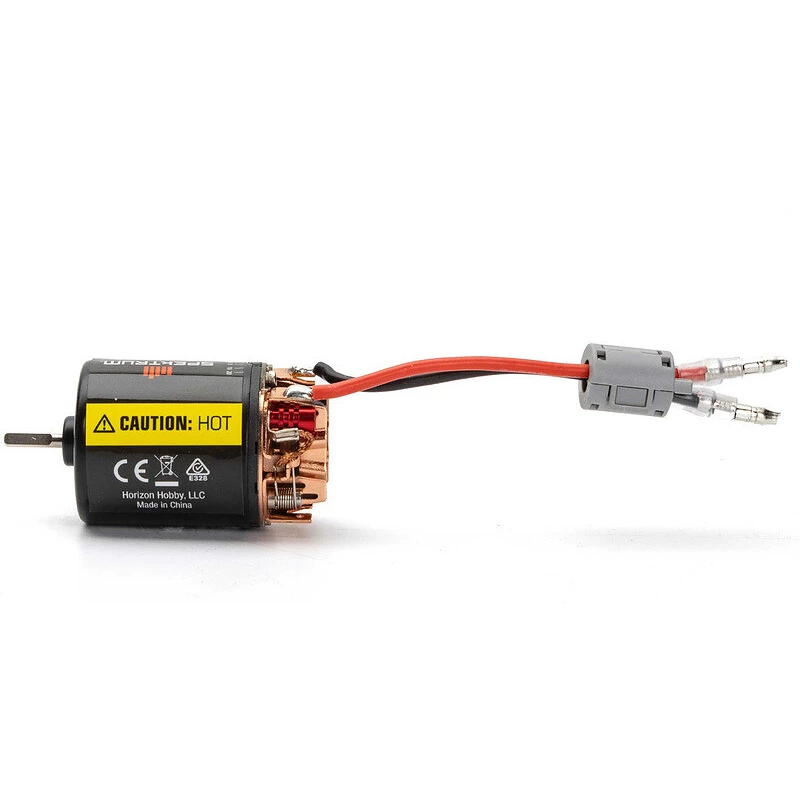

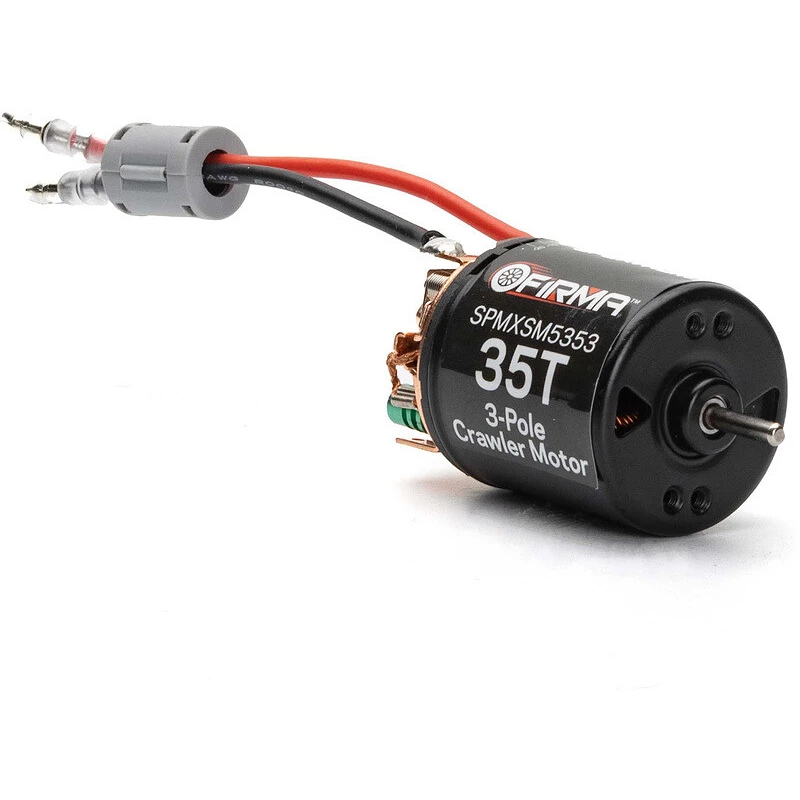

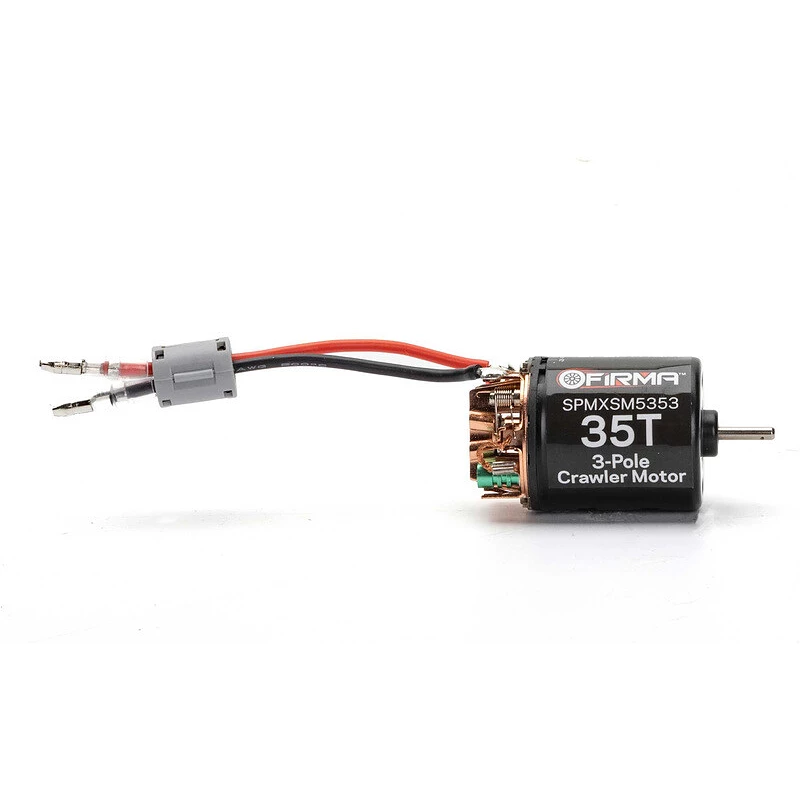

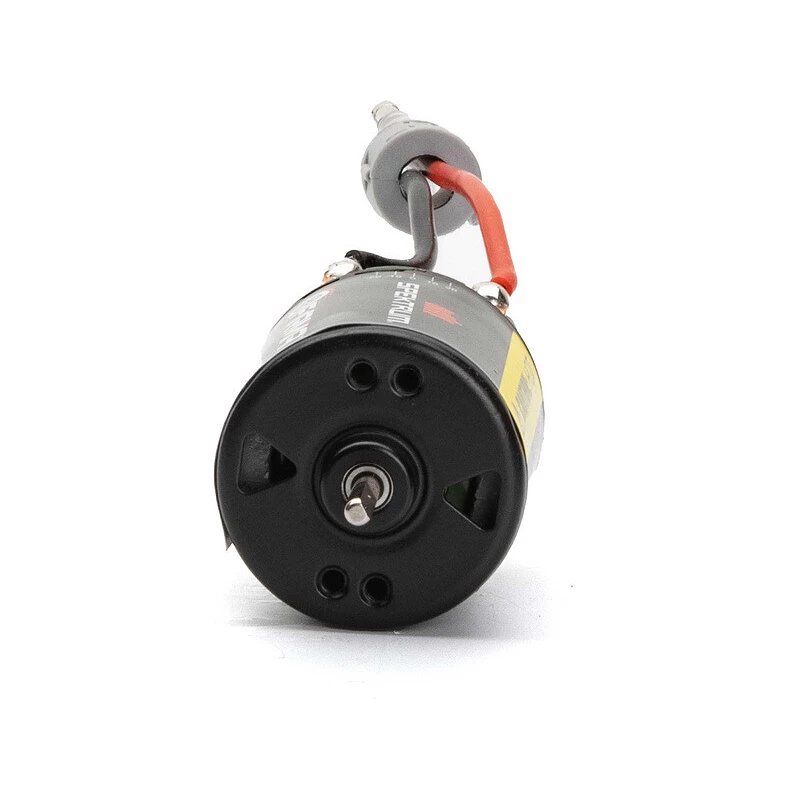

DC Spectrum Motor The 540 Series, 35-threaded motor, has a standard 3-pole design for maximum torque and efficiency. It is designed for RC models of crawler and expedition cars. The motor has a precise design with encapsulated ball bearings and replaceable brushes. The brushes are already shaped from the factory. For demanding users, it is possible to change the engine timing settings. We recommend using the motor with a 40A (and more) regulator.

Properties

• 3-pole design for maximum torque and efficiency
• Interchangeable brushes, already molded from the factory
• Adjustable timing of motor rotation clockwise and counterclockwise in the range of 20 °
• Encapsulated ball bearings
• Connectors: 3.5 mm pin without soldering
• Standard size 540
• Number of Threads: 35T ( Explanation: more threads = lower speed )
• Recommended power supply 2S LiPo / 6-7 cell l NiMH
• Shaft diameter 3.12 mm
