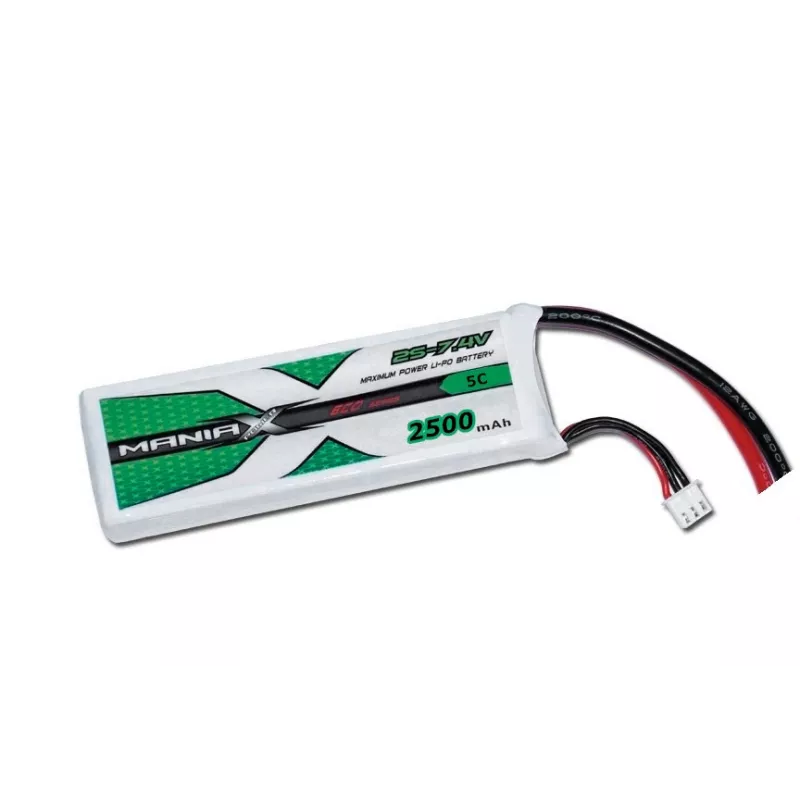

ManiaX Lipol 7.4V 2500mAh 5C RX

MAX1002
ManiaX
ManiaX LiPo receiver battery pack with 5/10C capacity, 1C charging. Two-cell 2S 7.4V 2500 mAh, dimensions: 95x30x16mm, weight: 105g, XT60 + JST-XH service connector.
More info
In stock - main warehouse: > 10 pcs
Monday 12.10. May with you
Recommended retail price
22.73 €
Your price with VAT
(USt. AT 20%)
22.54 €
Price without VAT
18.79 €

  • Did you find a better price?
  • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    Specific operating conditions of receiver batteries require a special type of LiPo cells - a particularly high current capacity is not needed, but low self-discharge and resistance to irregular discharge and "long-term stay" in a fully or partially charged state. We are now pleased to introduce a special line of ManiaX LiPo batteries optimized for powering on-board RC equipment with a discharge capacity of 5/10C, or 15/30C and a max. charging current of 2C.

    Do not charge ManiaX Rx batteries with a current greater than 2C, for normal operation we recommend using a current of 1C. We recommend using a balancer with each charge. ManiaX Rx batteries do not require initial formation, but we recommend not exceeding a current of 0.5C for the first three charging cycles. There is no need to discharge them before charging - for example, you can safely charge batteries that are 50% discharged.

    The set is supplied in a version designed to power the onboard electronics of models with powerful and fast servos. It is equipped with silicone power (charging) cables with a cross-section dimensioned with regard to the expected current load with an XT60 connector. The service connector is of the standard JST-XH system type, which can be connected directly to the balancer sockets on many KAVAN, SkyRC, GT Power, etc. chargers without using any adapter.

    The set includes: ManiaX battery, instructions.


    Capacity [mAh]2500
    Voltage [V]7.4
    Charging current [A]1.2 - 2.5
    Max. charging current [A]5
    Discharging current [A]12.5
    Max. discharge current [A]25
    Energy [Wh]18.5
    Length [mm]95
    Width [mm]30
    Height [mm]16
    Weight [g]105
    Délka [mm]
    95
    Hmotnost [g]
    105
    Nabíjecí proud [A]
    1.2 - 2.5
    Vybíjecí proud [A]
    12.5
    Šířka [mm]
    30
    Výška [mm]
    16
    Kapacita [mAh]
    2500
    Napětí [V]
    7.4
    Max. nabíjecí proud [A]
    5
    Max. vybíjecí proud [A]
    25
    Energie [Wh]
    18.5
