61" Raven SLE ARF - red/black

Sports semi-model of aerobatic aircraft for propulsion by AC electric motor 1400-1600 W and 5-6S LiPo for experienced pilots for flying classic precise and extreme 3D acrobatics.

The fuselage of the model is a classic construction of plywood and balsa laser cut parts reinforced with Kevlar® and carbon with a removable laminate engine cover and a removable upper fuselage with a cabin for perfect access to the propulsion system and RC equipment. The engine is fixed in the rear assembly on a plywood box bed.

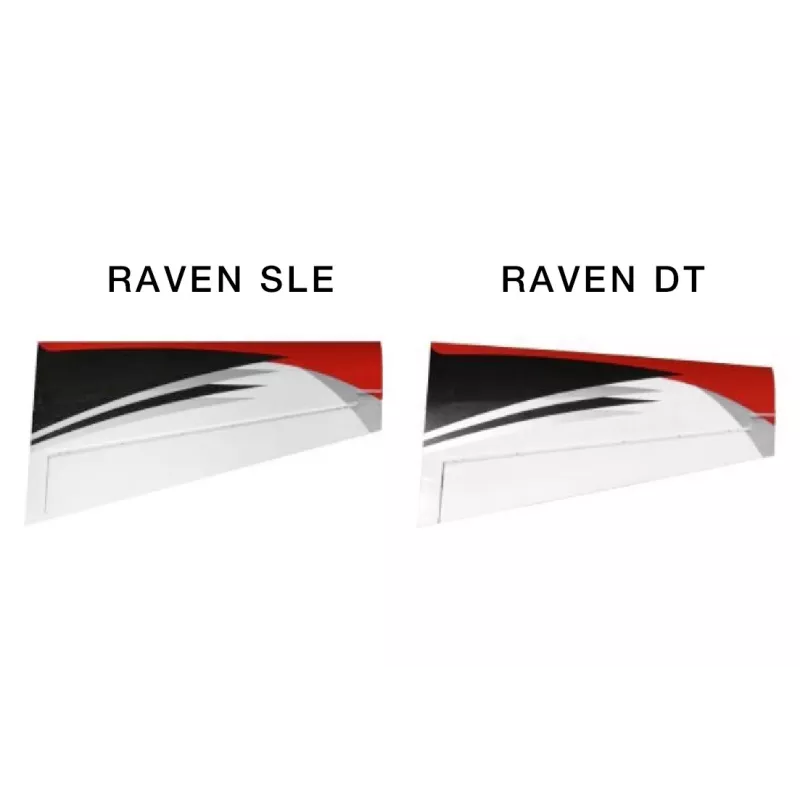

The two-piece wing with symmetrical profile and vertical leading edge (the halves slide from the side onto the carbon tube coupler and secure with screws) is also a classic all-balsa rigid skin design. The wings with a large area are controlled by 2 independent servos. You can equip the ends of the wings with the supplied SFG winglets.

The tail surfaces are all-balsa construction, the VOP is one-piece with a stabilizer glued to the fuselage. The elevator and rudder are controlled by a servo located in the tail part of the fuselage with a short straight rod.

The entire model is coated with ULTRACOTE iron-on foil (this is the brand name used in the USA for the well-known Oracover foils).

The chassis is a spur type with carbon main legs, lightweight wheels with laminate covers and a wire spur with a carbon bracket mated to the turn signal.

For the drive, you will need an AC electric motor 1400-1600 W (e.g. KAVAN PRO 5050-515) with an 80-100 A speed controller powered by a 5-6S LiPo battery 3300-4000 mAh with a load capacity of at least 40C.

At least a four-channel computer RC set is suitable for controlling the model - the possibility of programming double and exponential deflections in the right size is essential for flying acrobatics - classic precision and extreme 3D.

Servos are fast and powerful in a mini size - e.g. KAVAN GO-1035MG etc.

Kit includes: iron-on foil covered fuselage, wing and tail surfaces, sprayed laminate engine cover, complete accessory kit, carbon undercarriage, spur, light wheels and instructions.
