Climate rocket engine C6-P EL (30pcs)

Package contents

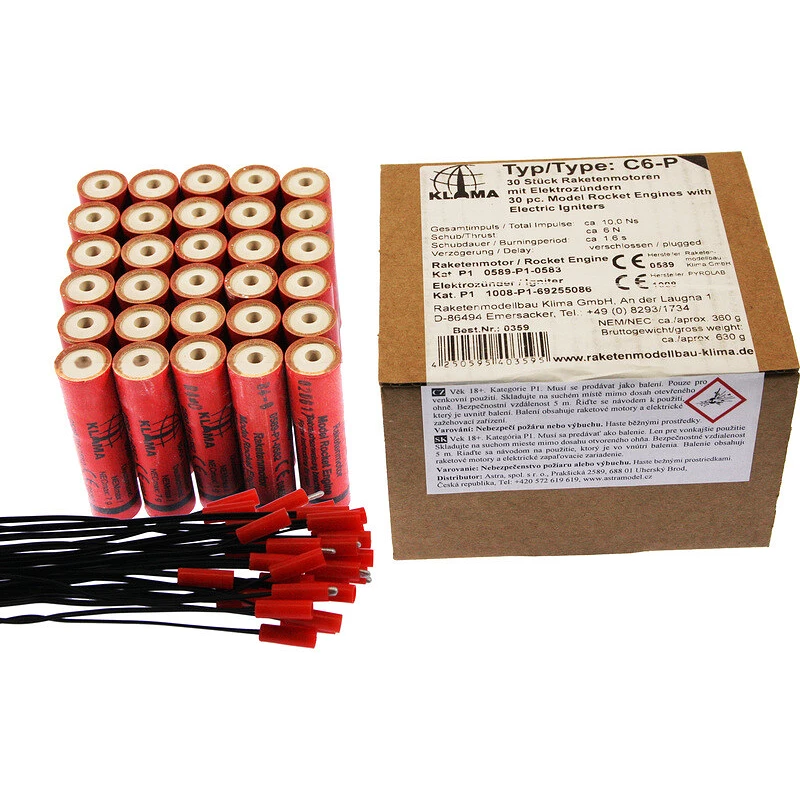

The package contains 30 pcs of Klima C6-7 rocket motors, including el. torches, instructions for use.

Characteristics

Klima C6-P rocket engine for gliders (engine has no throw). Dimensions of the rocket motor o18 x 70 mm, impulse 10 N · s, average thrust E2 N, burning time 1.6 s, ejection delay 7 s. Motor weight 22 g, charge weight 11 g. The maximum recommended weight of the rocket model is 140 g.

Additional information and markings

• CE mark 0589
• Age limit for the Czech Republic and Slovakia 18+
• Pyrotechnics category P1
• It must be sold only in the specified complete package
• The engines are supplied with fuses, which can ignite the engine in the classic way (matches, lighter)
• Instructions for use are inside the package
• Optional electric torches can be purchased (order number KL-7001), so Klima rocket engines can also be ignited with electric current.
• Use only outdoors. Safety distance: 5 m
• The expiration date is indicated on the engines
• The net weight of explosives is stated on the packaging
• Warning: Risk of fire or explosion. Extinguish the fire by standard means from a reasonable distance.

Instructions for starting the engine with the optional electric torch

Insert the starter (torch) into the engine so that the flammable mixture on the torch touches the inner wall of the propellant mixture. We recommend bending the torch wires so that the flammable mixture on the torch is springed to the inner wall of the propellant mixture. Secure the torch and wires in the engine with a motor seal.

A detailed overview of rocket engines, including explanations, can be found here.

Use high-quality alkaline batteries to power the starter. Conventional zinc-chloride is not able to supply sufficient current for reliable ignition of the torch. A current of approx. 2 A is required to ignite the torch!
