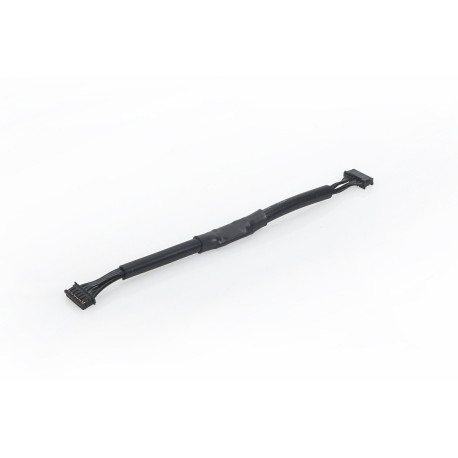

LRP Hall Sensor Level Converter - 100 mm

LRP SENSOR LEVEL CONVERTER - 70 mm

Due to non-standard Hall sensor signals, there are some motors that may not work properly with the Flow X. This is because the Hall sensors on these motors boost the signals to a higher level than the Flow X can properly process.

Connecting such a motor to the Flow X may interrupt its start sequence, which cannot be completed properly, resulting in ESC misbehavior such as:

• The regulator does not respond to gas input at all.
• blue LED freezes (constantly lit)
• Pressing the SET or MODE button is confirmed by a green LED, but the transmitter settings or mode programming cannot be entered.
• Engine not working

We recommend proceeding as follows:

• 1. Use the desired motor with Flow X with a common Hall sensor lead. If the motor is working properly, continue to use the regular wire with the Hall sensor.
• 2. Only use the Hall sensor level converter if your desired motor does not work properly with the Flow X with a common Hall sensor lead.
