High performance LED lighting - 3W

High-intensity 5mm LED light kit for RC models of helicopters, helicopters and multi-pilot, also applicable to ships; total 3W. The basic setting simulates the operation of the positioning, anti-collision and landing lights of real aircraft and helicopters - giving the RC model a more realistic look. Includes 8 LEDs with extremely high brightness: anticlock flashing red beacon, 3 white flash beacons, red and green position light, 2 white landing lights.

The set offers 9 remote mode switching modes on the transmitter - in addition to the initial "model aircraft" mode, you can get your airplane, helicopter or multi-kicker to provide a colorful and glamorous range of lights. The control unit detects and signals a low power voltage - if the power supply voltage is less than 6.8 V, all lights flash.

The set of lights is powered from a 2S LiPo battery (7.4V) or UBEC power stabilizer 6-8.4V (JST-XH power cable allows you to directly connect the 2S kit service connector). The signal cable of the control unit is connected to the channel on the receiver, which assigns a button or torque switch to the transmitter with programmed -100% and + 100% positions.

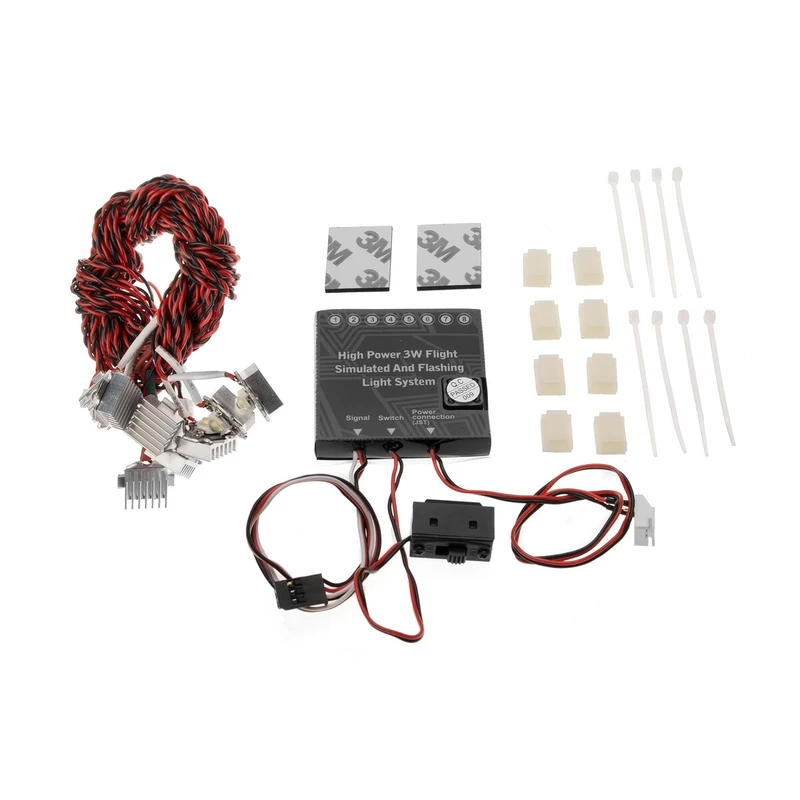

Set includes: control unit, 8 LED lights with heat sinks and cables, 8 self-adhesive LED holders with tightening straps, instructions

Operating modes

After connecting all cables and switching on the control unit circuit breaker, you can switch the individual operating modes with the switch assigned to the transmitter:

• Mode 1: Standard Civil Aircraft Mode; the left red and green green position lights are constantly on, the white flash beacons flashing at the highest speed, the red flashing beacon flashes at the highest speed, the landing lights slowly flashing and quenching.
• Mode 2: The left red and right green position lights flash with white flash beacons, the red flashing beacon blinks at the top speed, the landing lights slowly turn on and quench. <" / li>
• Mode 3: The left red and green green light alternately blink twice, the flashing beacon is constantly on, the left and right beacon blink alternately twice, the red flashing beacon blinks at the top speed, the landing lights slowly turn on and off.
• Mode 4: The left red and green green light alternately blink three times, the flashing beacon is constantly on, the left and right beacon blink alternately three times, the red flashing beacon blinks at the top speed, the landing lights slowly turn on and quench.
• Mode 5: The left red and green green position lights are constantly on, the white flash beacons are constantly on, the red flashing beacon blinks at the highest speed, the landing lights slowly turn on and off.
• Mode 6: Emergency landing mode - all lights flash rapidly.
• Mode 7: All lights are flashing slowly.
• Mode 8: All lights are constantly on.
• Mode 9: All lights are off.
