AXI 2820/12 Cyclone KV990

Cyclone series motors are totally new concept - although based on AXI V2 Long, but the rotary shell is enclosed in an outer casing, so there are no problems associated with the installation in the limited space in the bow hull motor gliders. Completely eliminated the risk of contact with the rotating jacket with cables or other parts of the model. As with the AXI V2 Long, a special internal structure with an integrated cooling system for the turbine principle effect of the air flow which keeps the windings of the motor cooler. The front face is conically extended for easy installation into hulls of small diameter glider nose.

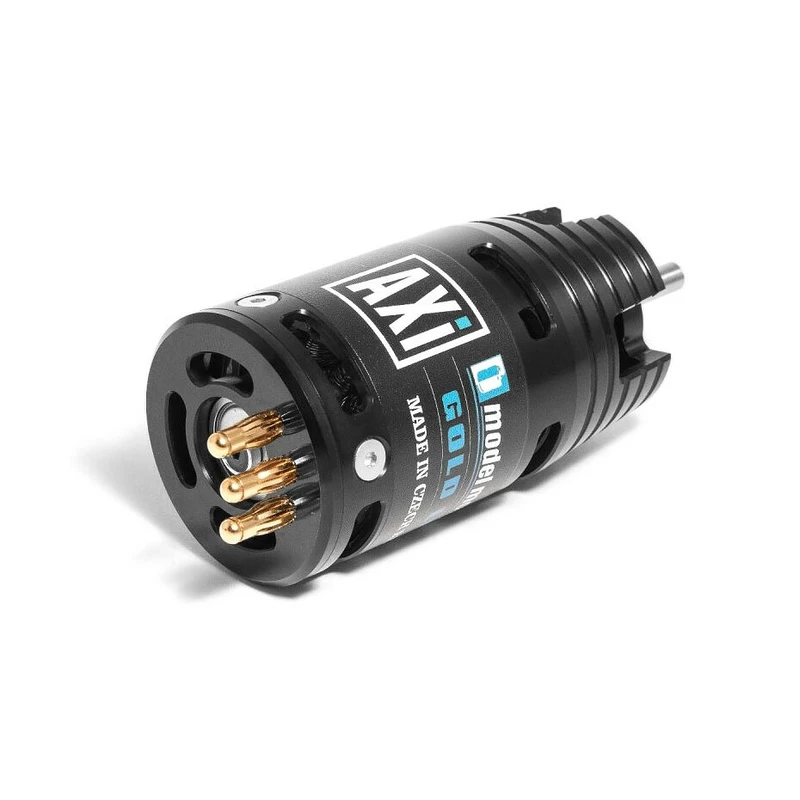

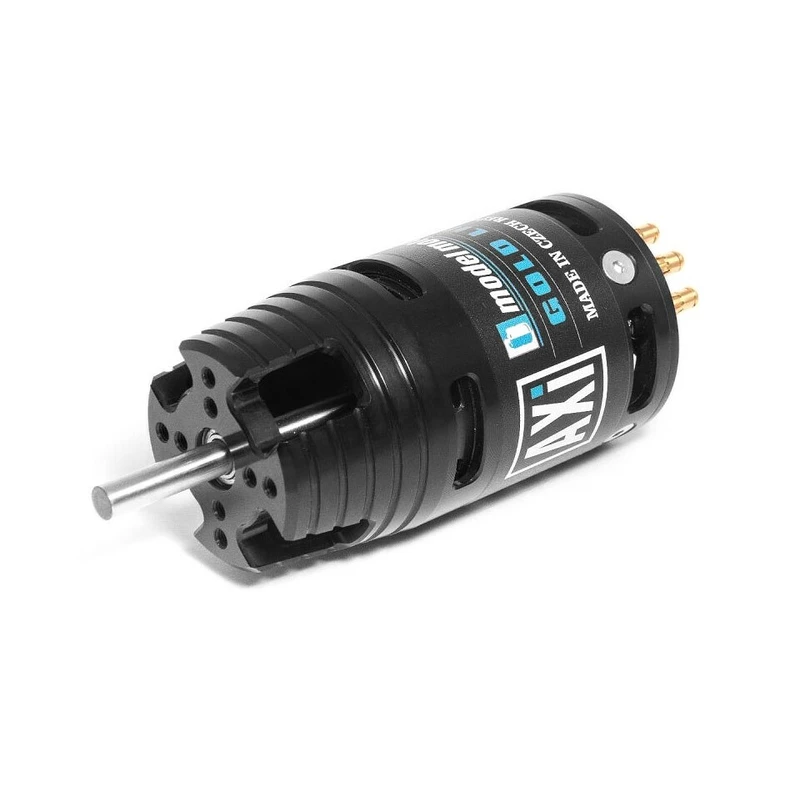

Robust and reliable high performance brushless motors AXI 2820 / xx Cyclone with rotating drum and the neodymium magnets are hardened shafts with a diameter of 5 mm disposed in four ball bearings, which ensures very good mechanical stability at both normal and reverse installation and allows high dynamic loads common in aerobatic flying and guarantee a long service life. Rotors engines of AXI 2820 / xx Cyclone are exported to most modern dynamic balancing equipment from a reputable company Schenck. Quality Japanese bearings supplied to a Cyclone series engines exhibit improved durability and quiet operation.

Series motors AXI 2820 / xx Cyclone, thanks to its large torque suitable for large propellers without the need for a gearbox, which ensures excellent efficiency of the drive.

AXI 2820/12 Cyclone is a brushless motor for driving the learned models with flying weight to 2600 g with power from three or čtyřčlánkového Li-poly. Perfect for 2-3 m Thermal motor glider like.

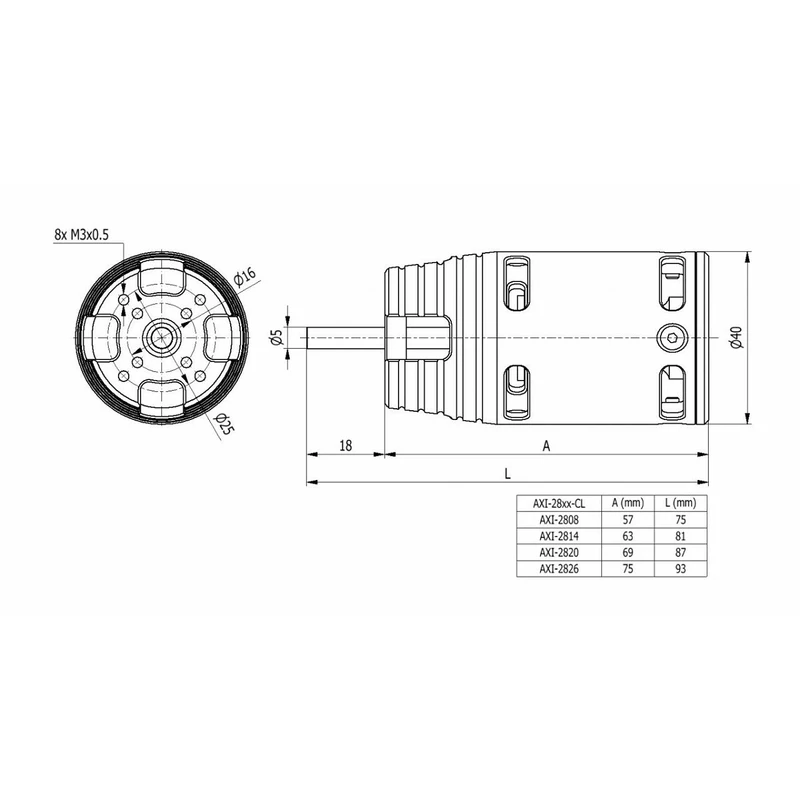

Motor mounting: AXI 2820/12 Cyclone is designed for front mounting. For mounting, use four M3 screws that extend into the front of the engine in the range of 4-5 mm. Motor bulkhead should be 5 mm plywood air.

Set engine comprising: a brushless motor AXI 2820/12 Cyclone instructions.
