KAVAN Brushless engine C2836-915

KAVAN C motors are powerful brushless fourteen-pole electric motors with a rotating casing ("outrunner") with excellent electrical properties, sophisticated construction and excellent production processing. They represent a very good choice for driving your recreational sports models with excellent performance parameters, good efficiency and a favorable price. They are low-speed, high-torque engines that can handle large-diameter propellers and climb without the need for a gearbox.

KAVAN C2836-915 is an AC motor designed to drive smaller models with a flight weight of up to 1050 g and powered by a two-cell to four-cell Li-poly battery. Great for size models like Multiplex Easy Glider, etc.

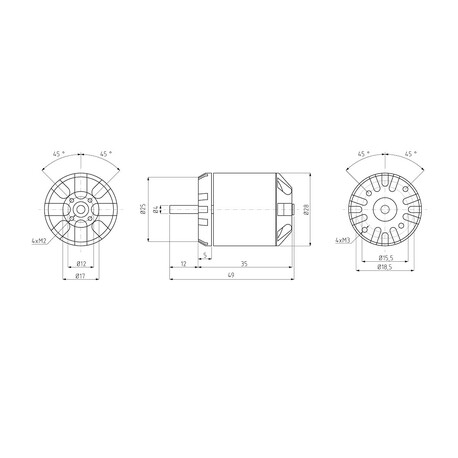

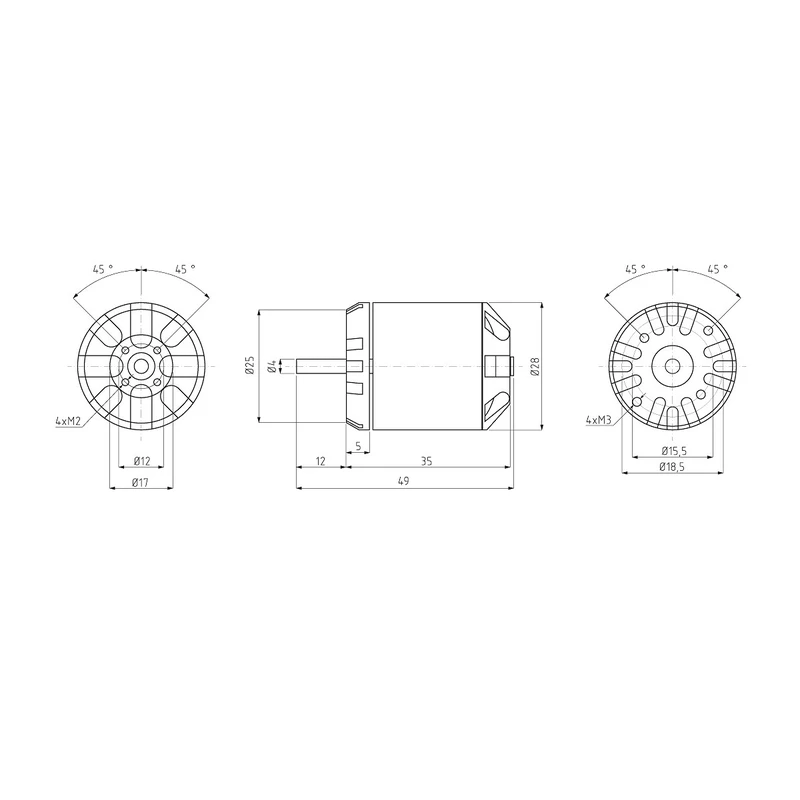

Engine mounting: KAVAN C2836-915 is designed for front and rear mounting. For front mounting behind the front of the engine, use at least two (opposite) or four M3 bolts that extend into the front of the engine within 3 - 4 mm. The pairs of holes for the fastening screws at the front of the engine are regularly spaced 180 ° on circles with a diameter of 16 and 19 mm. The engine bulkhead should be made of 3 mm plywood. The rear mounting kit (mounting cross, propeller carrier for rear assembly) is supplied with the engine.

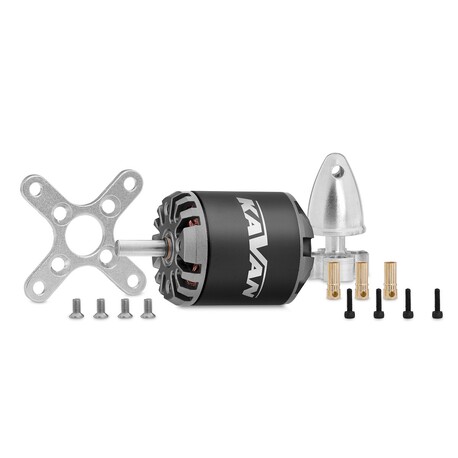

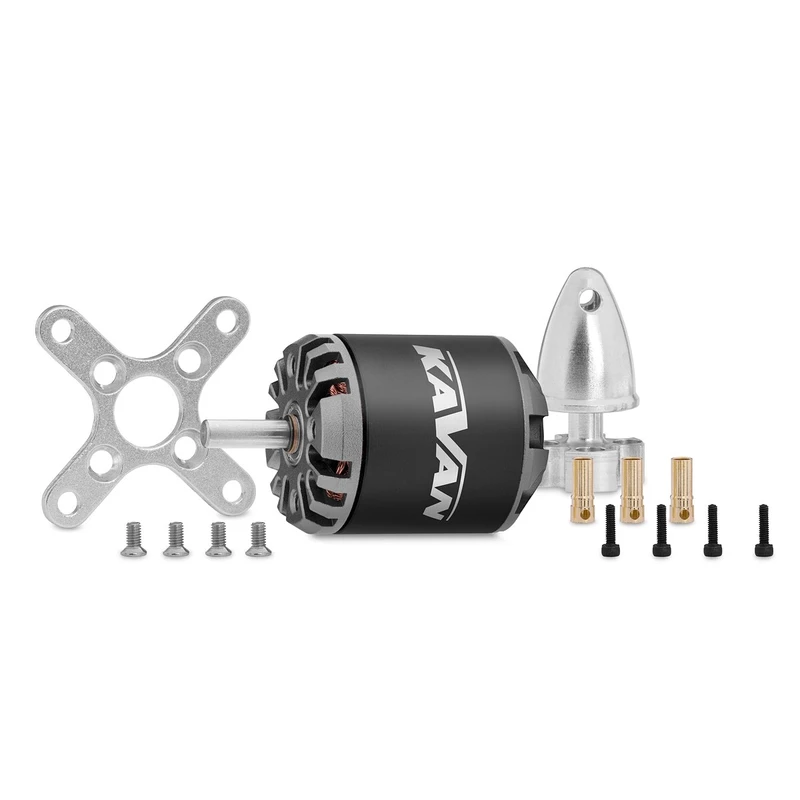

Engine set includes: C2836-915 motor with cables with soldered 3.5 mm gold-plated connectors, rear mounting kit, instructions.
