AXI 5345 / 16HD V2 AC motor
Express delivery
Large selection of carriers
Satisfaction guarantee
The new generation of AXI 5345 / xx V2 has higher performance thanks to its sophisticated design, which in conjunction with an integrated cooling system based on the principle of a turbine effect of the air flow keeps the engine cooler winding up to 20%.

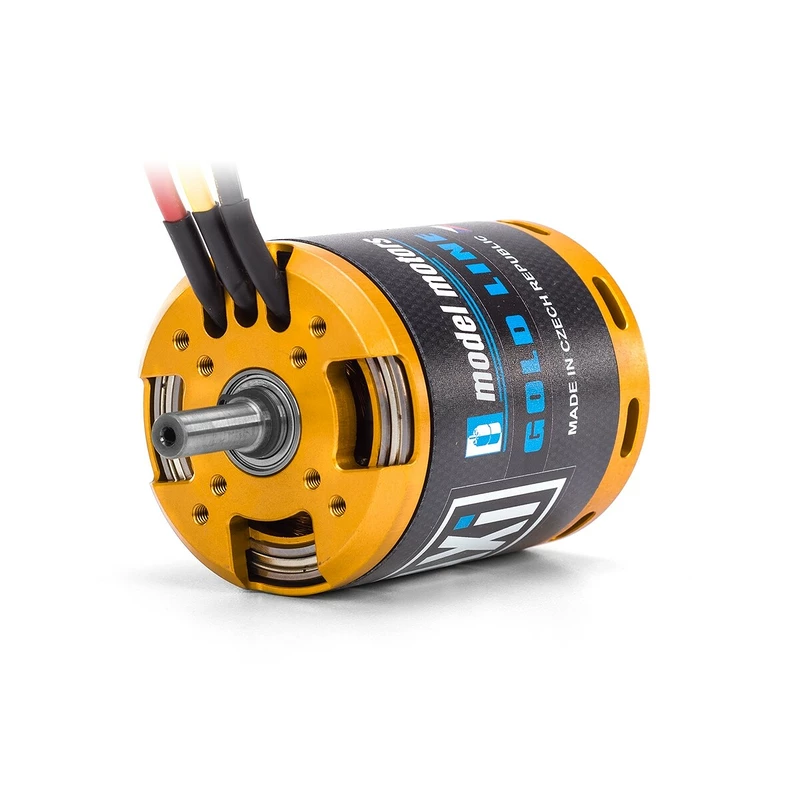

Robust and reliable high performance brushless motors AXI 5345 / xx V2 with rotating drum and the neodymium magnets are hardened shaft diameter of 10 mm (with a standard 8 mm end of the yoke) mounted three ball bearings, which ensures a very good mechanical stability at both normal and inverted assembly and allows high dynamic loads common in aerobatic flying and guarantee a long service life. Rotors engines of AXI 5345 / xx V2 are balanced on most modern dynamic balancing equipment from a reputable company Schenck. Quality Japanese bearings supplied to the engines of the V2 exhibit improved durability and quiet operation.
Series motors AXI 5345 / xx V2 are due to its large torque suitable for large propellers without the need for a gearbox, which ensures excellent efficiency of the drive.
The labeling system of motors: AXI xxyy / zz |
xx - stator diameter in mm |
YY - stator length in mm |
zz - number of threads |
AXI 5345 / 16HD V2 is large AC motor for driving the learned models with giant flying weight to 15,000 g with power from eight- to dvanáctičlánkového Li-poly. Ideal for electrification of models designed to drive 60-80 cc petrol engines, such as aerobatic models up to 12,000 grams or 3D aerobatic up to 8000 g.

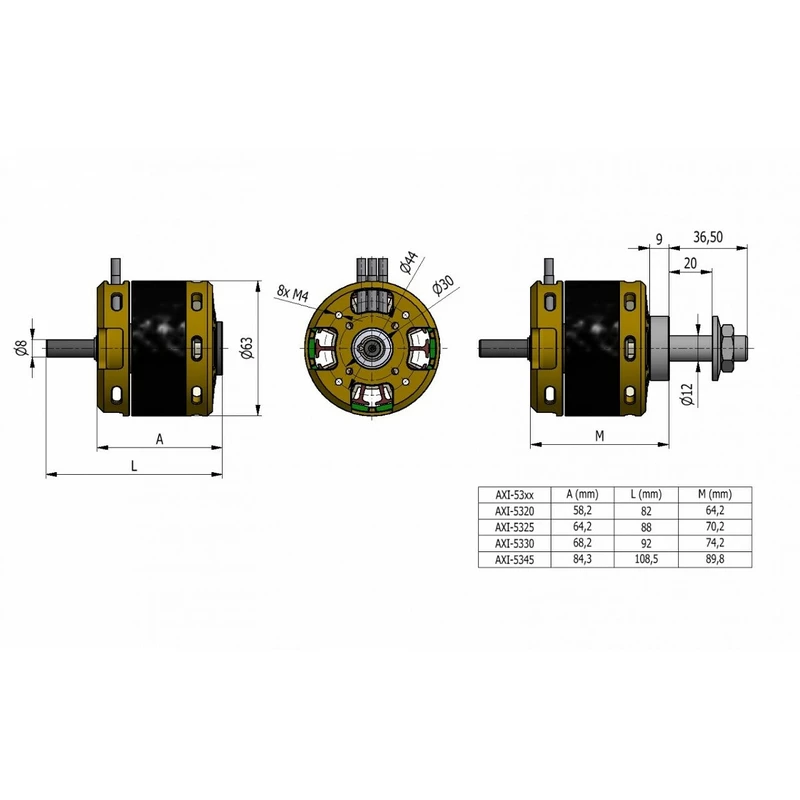

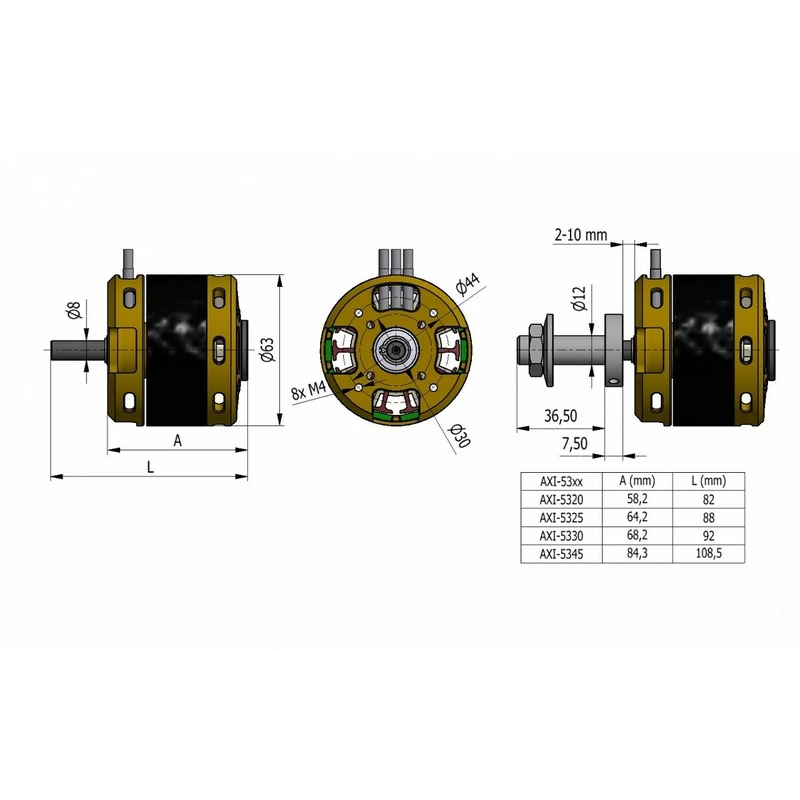

Motor mounting: AXI 5345 / 16HD V2 is designed for front and rear mounting. When installing the front face of the engine for use at least four M4 screws that extend into the front of the engine in the range of 5-6 mm. Motor bulkhead should be 10 mm plywood air.

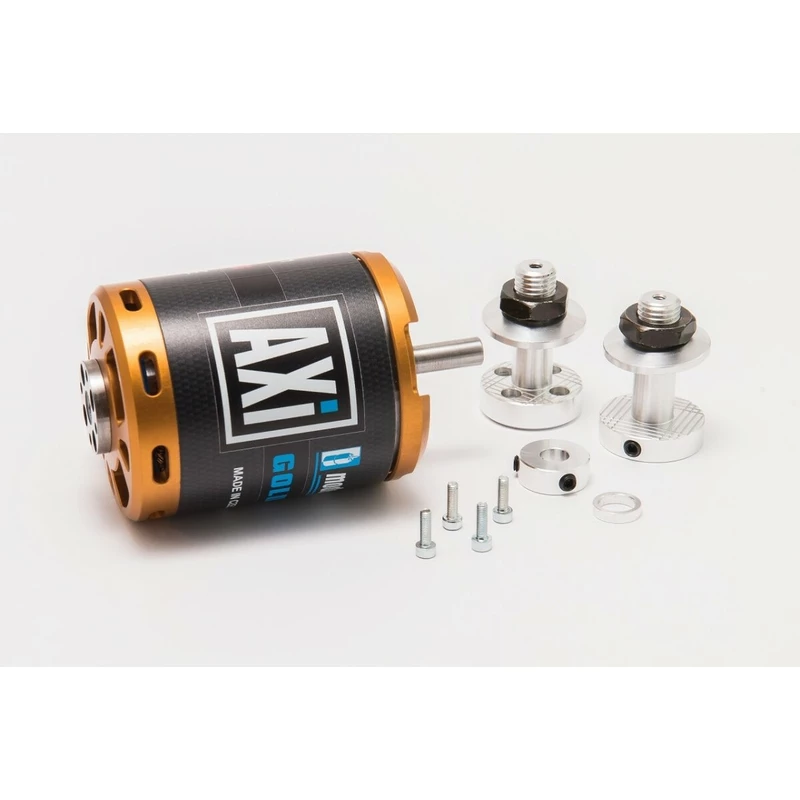

Set engine includes: brushless motor AXI 5345 / 16HD V2 with cables for fixed propeller driver, set for rear mounting instructions.
Power LiXX Articles | 8-12 |
Revolutions per volt [ot./min/V] | 195 |
Internal resistance [mOhm] | 34 |
No-load current [A] | 2 |
max. efficiency [%] | 95 |
Current at Max. Efficiency (?> 85%) [A] | 30-75 |
Max. peak current (60) [A] | 92 |
Max. power [W] | 4195 |
Diameter [mm] | 63 |
Length [mm] | 84.3 |
Shaft diameter [mm] | 8 |
Weight [g] | 995 |
number of poles | 14 |
Timing [°] | 15-25 |
Controller [A] | 120-160 |
Gliders weight [g] | 16000 |
Coach to weight [g] | 10000 |
Acrobat to weight [g] | 8500 |
3D to weight [g] | 7000 |
Recommended propeller | 10S: 22x10-12 "24x12" |
