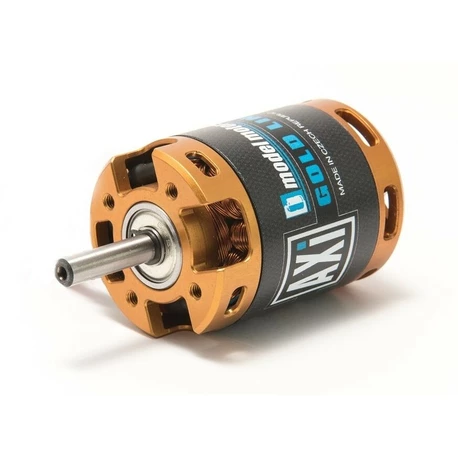

AXI 2826/8 V2 AC motor

The new generation of AXI 2826 / xx V2 has higher performance thanks to its sophisticated design, which in conjunction with an integrated cooling system based on the principle of a turbine effect airflow keeps the motor windings cooler by up to 20%.

Robust and reliable high-performance brushless motors AXI 2826 / xx V2 with rotating drum and neodymium magnets have a hardened steel shaft with a diameter of 5 mm mounted in three ball bearings, which ensure very good mechanical stability under normal and inverted mounting and allows high dynamic loads common in aerobatic flying and ensuring a very high durability. Rotors AXI 2826 / xx V2 are exported to most modern dynamic balancing equipment from a reputable company Schenck. High-quality Japanese bearings supplied to the engines of the V2 is characterized by higher durability and quiet operation.

AXI 2826 / xx V2, thanks to its great to torque suitable for large propellers without the need for a gearbox, which ensures high efficiency of the entire drive.

AXI 2826/8 V2 brushless motor is learned to drive models with a flying weight to 2500 g with power from two or tříčlánkového Li-poly battery. Perfect for models, such as our EPP "warbird" and aerobatic models span of 1300-1400 mm EP Spitfire and Mustang EP from Phoenix, HOTLINER to 2 kg etc.

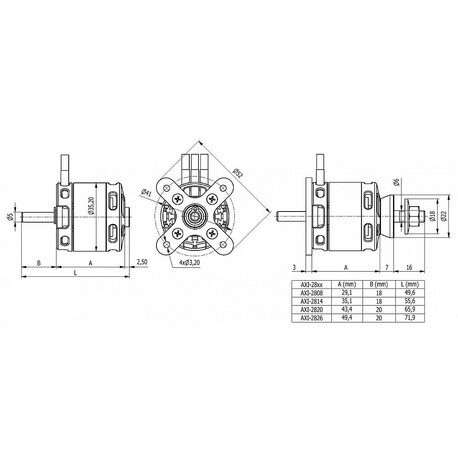

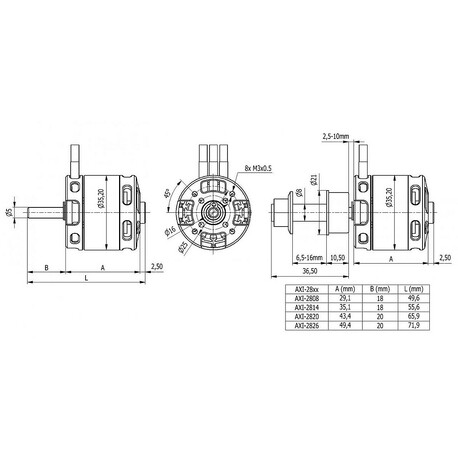

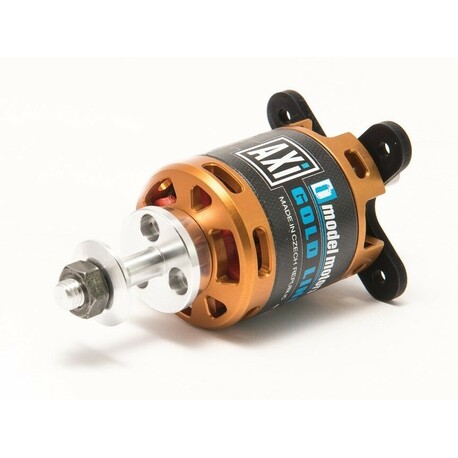

Motor mounting: AXI 2826/8 V2 is designed for front and rear mounting. When front mounted behind the front motor using four M3 screws that extend into the front of the engine in the range of 3.5-4 mm. Motor bulkhead should be from 5 mm air plywood. < / P>

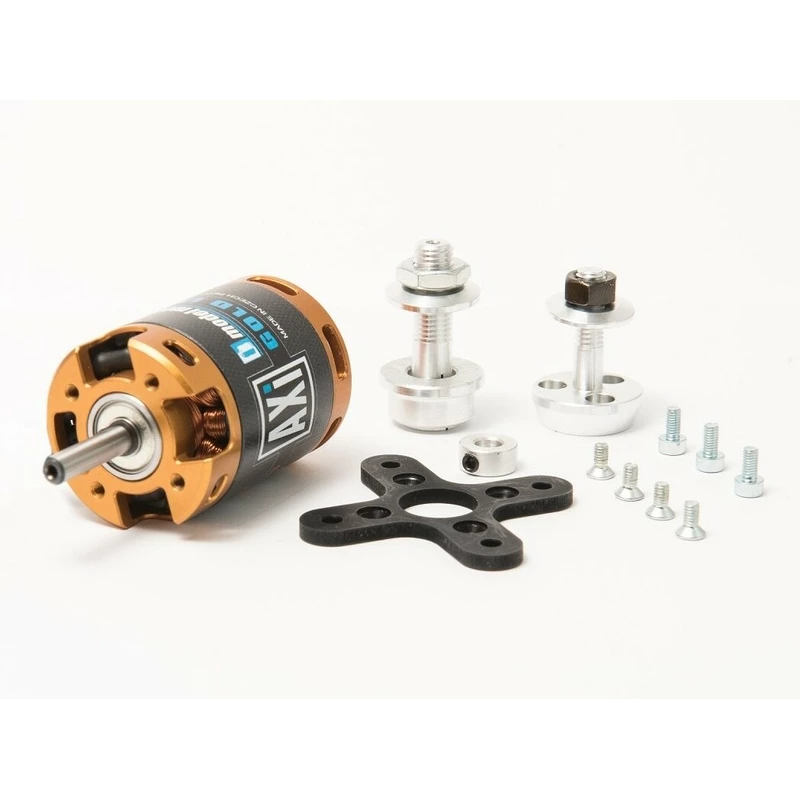

Set engine comprising: a brushless motor AXI 2826/8 V2 cables, collet carrier for fixed pitch propeller, set for rear assembly instructions.
