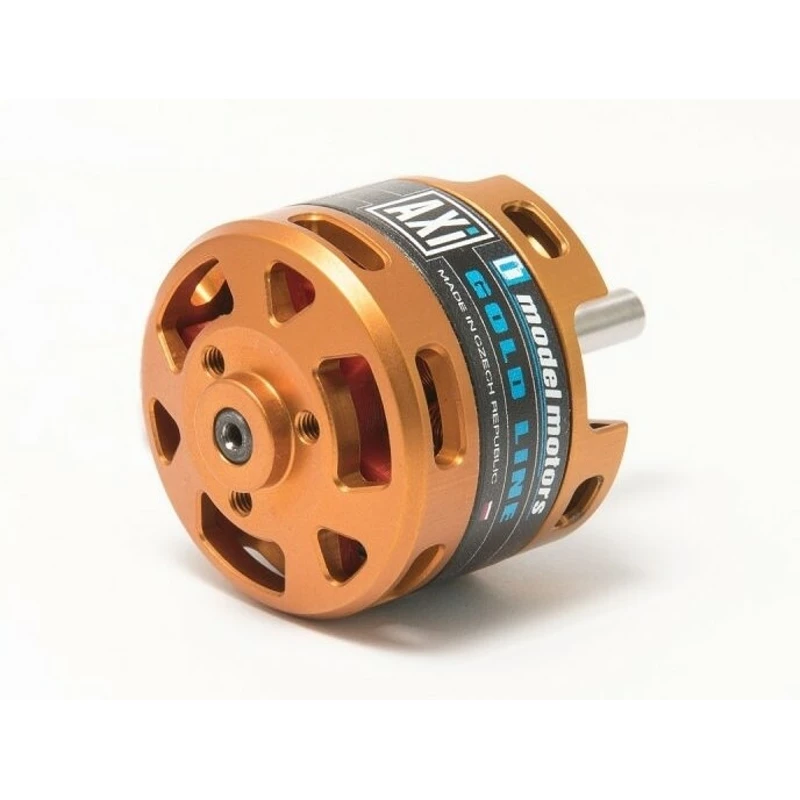

AXI 2808/16 V2 AC motor

The new generation of AXI V2 has higher performance thanks to its sophisticated design, which in conjunction with an integrated cooling system based on the principle of a turbine effect airflow keeps the motor windings cooler by up to 20%.

Robust and reliable high-performance brushless motors AXI 2808 / xx V2 with rotating drum and neodymium magnets have a hardened steel shaft with a diameter of 5 mm is a two ball bearings, which ensure very good mechanical stability under normal and inverted mounting. Rotors AXI 2808 / xx V2 are exported to most modern dynamic balancing equipment from a reputable company Schenck. High-quality Japanese bearings supplied to the engines of the V2 is characterized by higher durability and quiet operation.

AXI 2808 / xx V2, thanks to its great to torque suitable for large propellers without the need for a gearbox, which ensures high efficiency of the entire drive.

AXI 2808/16 brushless motor V2 is learned to drive the smaller models with a flying weight to 1000 g with power from dvoučlánkového tříčlánkového or Li-poly battery. Excellent for smaller Hotliner and fast aerobatic models which better indicates the smaller diameter propeller with a higher number of revolutions.

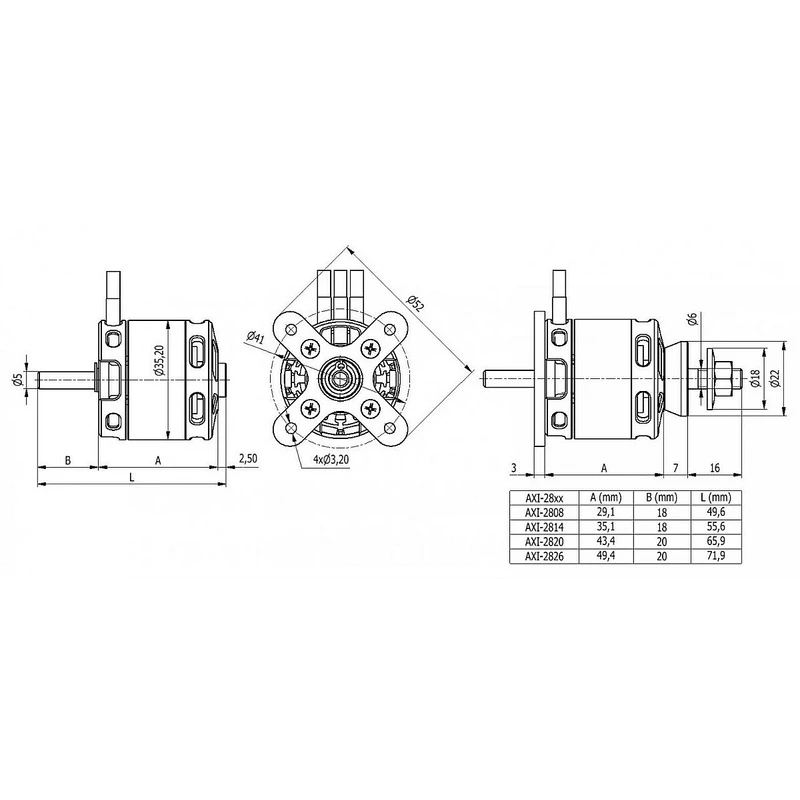

Motor mounting: AXI 2808/16 V2 is designed for front and rear mounting. When mounted behind the front face of the engine, use of at least two (opposite) or four M3 screws which extend into the head of the motor in the range of 3.5-4 mm. Motor bulkhead should be from 3 mm air plywood.

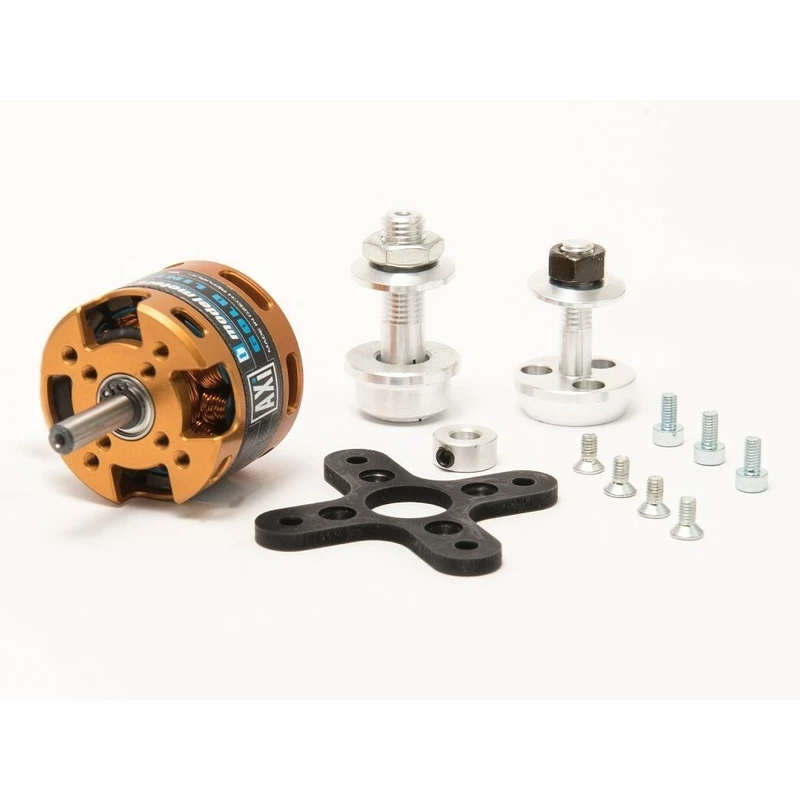

Set engine comprising: a brushless motor AXI 2808/16 V2 with cables carrier for fixed pitch propeller, set for rear assembly instructions. < / P>
