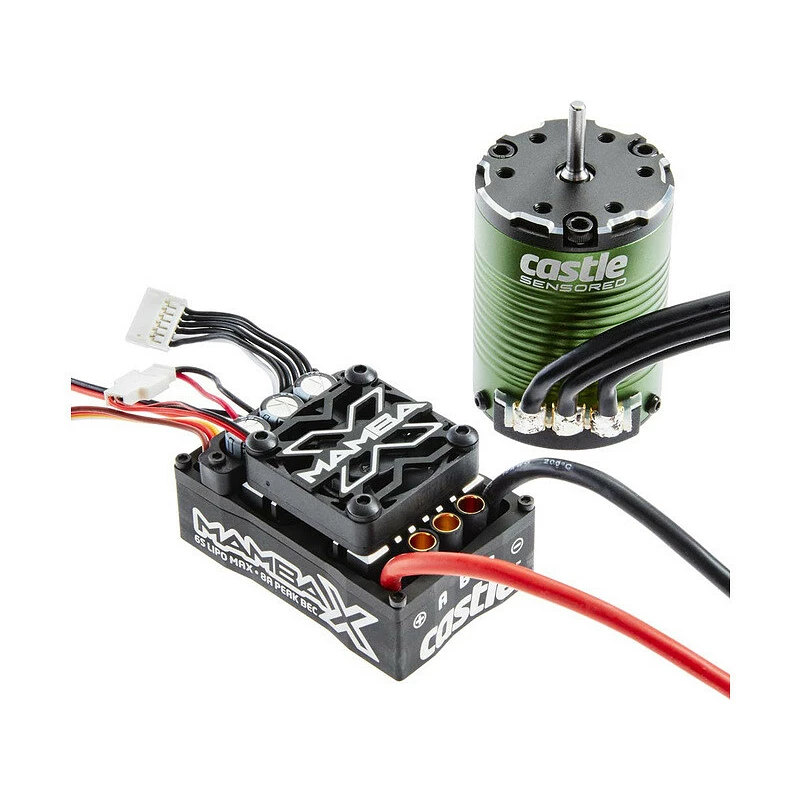

Castle engine 1406 7700ot / V senzored, reg. Mamba X

The Castle Creations 1406 7700 rpm / V 4-pole sensor motor for 1:10 2WD RC models is part of the latest Castle Creations engine series. Speed 4600 rpm, power supply 2 cell LiPo, high efficiency, sensor design.

Recommended engine use in conjunction with Castle Mamba X

1:10 on-road 2WD / 4WD drive, such as Traxxas 4-Tec. Power supply 2 LiPo cells, 6 cells NiMH.

AC Motor Design 1406

Castle introduces a completely new range of sensor motors. Especially high efficiency and advantageous use of sensor regulator from zero speed is an advantage . Sensor motors can also be recommended for slow-moving models, such as crawlers or expedition RC models.

The stator (fixed outer part of the engine) is composed of mutually isolated 0.2 mm thick iron sheets. The stator winding is impregnated against moisture and is defined by a special potting compound. The winding outlets are made up of massive tapes to which you can solder outlets in the optimum direction - depending on the model.

The rotor (rotating internal part of the motor) is made of hardened steel shaft, in which neodymium magnets are glued. To increase strength, the rotor is embedded with a Kevlar fabric and a two-component adhesive. An additional set of 4 magnets is used to measure the rotor position. The rotor is defined between the bearings by a leaf spring in the form of a ring.

There are high-quality ball bearings in the aluminum fronts, the Hall sensor of the rotor sensing and the temperature sensor for measuring the internal temperature of the motor in the rear face.

Key features of Castle 1406 AC motors

• Castle 1406 motors are dimensionally identical to the 540 series DC motors
• Due to the absence of a commutator, the life of the AC motor is only due to bearings that can be replaced
• Sensor design, integrated temperature sensor
• Moisture-proof impregnated winding, sensors encapsulated in special encapsulation compound
• Very thin stator surfaces for high efficiency
• Large solder pads for easy soldering
• The rotor is woven with Kevlar fabric / li>

Castle Mamba X Controller

Electronic Controller Castle Mamba X Castle Mamba is a controller designed for RC car models 1:10 or lighter models 1: 8. Power can be in the range of 2 to 6 cells LiPo, of course there is a waterproof construction. The controller can be used for both hobby and professional use. A novelty is the possibility of connecting a sensor motor, an additional input to change the controller settings during the race or when riding from a crawler or shipping models.

The controller allows to record measured data - current consumption, supply voltage, ripple of supply voltage, voltage BEC, temperature and speed to memory. After the race or during test rides, you can view this data on your computer and evaluate it.

The Castle Mamba X controller features an integrated BEC source capable of delivering up to 8 A of current, and can be adjusted in the range of 5.25 to 8.0 V.

Possibilities of using secondary input AUX2 - white wire

• Gas output limitation - you can limit the maximum engine power. An ideal choice for when an RC car is driven by children or less experienced riders.
• Reverse Power Limit - You can limit the maximum reverse power.
• Brake Performance Reduction - With the transmitter you can limit the maximum braking power - the ideal choice for Crawler races
• Brake Power in Neutral - With the transmitter you can reduce the brake power in neutral - the ideal choice for Crawlers
• Reverse on / off
• Maximum Engine Torque Limit - If you need to avoid wheel slippage, you can reduce the maximum engine torque at any time during the race. Get an advantage over your competitors!
• Deleting Measured Data - You can remotely delete the measurement data during the race, eg before the race starts

Removable cables to sensor and sensor motor sensors

The cables leading into the receiver and into the sensor are connected to the gilded connector. This solution offers the possibility to customize the cabling for your RC car exactly to your liking. If the cables are damaged in an accident, you simply replace them. Cables to both the receiver and the sensor can be purchased as a spare part. The sensor motor connector is fitted with a blanking plug. If you choose to use sensor motors, you need to remove the plug from the connector. Simple and most reliable solution!

The replacement cable for the receiver has the order number CC-011-0106-00, the cable for connecting the sensors of the sensor AC motors to the RC cars has the order number CC-011-0108-00.

Key Features of Castle Creations Controller Mamba X

• Waterproof construction of the controller - electronics is embedded in a special potting compound
• Recovering sensor motor support that is important in the increasingly popular crawlers
• Adjustable BEC voltage - you can fully use both standard and high voltage servos
• New waterproof switch for reliable switching off and on of the controller
• The use of a more powerful microcontroller makes the engine even better, and data logging is newly enabled
• The controller is equipped with a secondary input that allows you to change any of these parameters while driving with the free channel of the transmitter, see below.
• Of course there is the possibility of programming the basic controller parameters using a transmitter or programming card. Complete programming options are available in Castle Link for PC.
• More powerful BEC source for reliable powering of powerful servos in the model
• Controllers can record the most important measured data - voltage waveform, speed and so on. You can then view the measured data from the plant on your computer and evaluate it.
• Castle Live Link Support - The controller can also be recommended for industrial applications where speed, temperature and so on are required.
