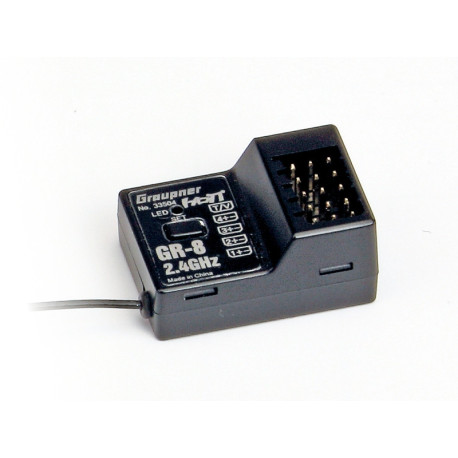

GR-8 RACE HoTT receiver - telemetry

Attention! The receiver can only be operated with the X-8N and X-8E transmitters!
Graupner HOTT technology. Only suitable for X-8N and X-8E car transmitters, adapted faster response time (1.5 ms). With GRAUPNER HoTT 2.4 GHz technology, the receiver has a new hopping telemetry transmission high-frequency unit with state-of-the-art components and the latest software.
The receiver operates even at voltages of about 2.5 volts ensuring full functionality even when voltage fluctuates.
Size and weight have been reduced. The receiver input sensitivity and thus the range have been increased further. Horizontal Servo connections support installation in tight spaces.

Technical details
Number of antennas: 1
Antenna length [mm]: 1 x wire 145 (antenna 30)
Operating voltage neutral [V]: (2,5) 3,6 ... 8,4
Width [mm] 21
Frequency: 2400 ... 2483.5
Total weight [g]:
Height [mm]:
Channels: 4
Overall Length [mm]: 30
Modulation: 2.4 GHz FHSS
Range approx. [m]: 1000
Current consumption [mA]: 70
Temperature range [° C]: -15 ... 70
