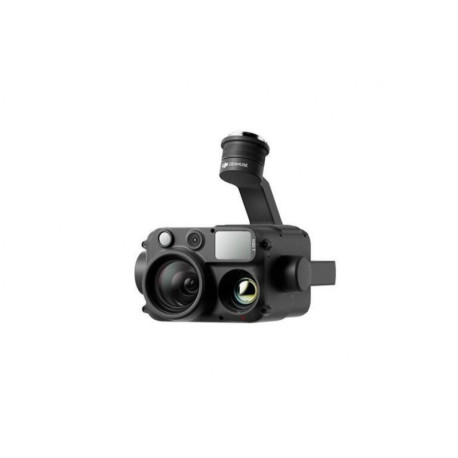

Zenmuse H30T - complete (2y)

DJI Zenmuse H30 Series

Unbeatable Vision Day and Night

A versatile multi-sensor flagship, the Zenmuse H30 Series integrates five main modules: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser rangefinder, and a NIR assist light. With cutting-edge intelligent algorithms, it revolutionizes the standards of perception and imaging, and overcomes the limitations of day and night vision. This makes it ideal for a wide range of operations, including public safety, energy inspection, water management and forestry.

Versatile performance day and night

Zoom camera
Up to 34x optical zoom and 400x digital zoom
40MP 1/1.8" CMOS sensor
Maximum video resolution: 3840 x 2160 @ 30 fps

Wide-angle camera
Equivalent focal length: 24 mm, DFOV: 82.1°
48MP 1/1.3" CMOS sensor
Maximum video resolution: 3840 x 2160 at 30 fps

Laser rangefinder
Measurement range: 3 to 3000 m
Measurement accuracy:
up to 500 m: ±(0.2 m + measured distance × 0.15%)
over 500 m: ±1.0 m

Infrared thermal camera (H30T model only)
Equivalent focal length: 52 mm, DFOV: 45.2°
Uncooled VOx microbolometer
Photo resolution: 1280 × 1024
Video resolution: 1280 × 1024 at 30 fps
Temperature measurement range: from -20 °C to 1600 °C (with infrared filter)

Additional NIR illumination
Wavelength: 850 nm
Field of view: 4.6 ± 0.6° (circular)
Safety class: Class 1
Illumination range: circle with a diameter of approximately 8 m at a distance of 100 m

Better and clearer vision

Up to 34x optical zoom and 400x digital zoom
The Zenmuse H30 Series is equipped with a high-resolution 40MP zoom camera that supports up to 34x optical zoom and an incredible 400x digital zoom. Compared to the previous generation, it not only allows you to track objects at a greater distance, but also captures more details.

Stabler image from the zoom camera
Thanks to the latest image stabilization algorithm from DJI, the Zenmuse H30 Series can effectively eliminate shake in the telephoto lens and provide a stable and sharp image, which is crucial for power line inspections, for example.

Maximum range of the laser rangefinder 3000 m
The laser rangefinder has a measuring range up to 2.5 times greater than the previous generation and accurately captures information about the position of objects at a distance of 3 m to 3000 m, including linear distance from the camera, altitude and GPS coordinates.

Enhanced Night Vision

Support full-color night vision
Both the zoom camera and the wide-angle camera can switch to night mode in low-light conditions, which improves the quality of live view and recording. This ensures efficient operation even at night and allows continuous operation from day to night.

Support black and white night vision and NIR illumination
In night mode, the zoom camera supports IR light for infrared enhancement and NIR illumination. Switching the live view to grayscale by removing the IR filter increases the contrast between light and dark areas, making it easier to find objects. When the NIR auxiliary illumination is activated, the zoom camera gains additional infrared light, which is useful for covert night surveillance and rescue operations.

More powerful infrared imaging

1280 × 1024 resolution infrared camera

The thermal camera has a resolution of 1280 × 1024, which is 4x more than the previous generation, and supports up to 32x digital zoom. At higher zoom levels, the UHR (Ultra-High Resolution) feature is automatically activated to ensure a sharp infrared image. High-Resolution Mode for Precise Observation The Zenmuse H30T supports three infrared gain modes: High-Gain for precise temperature measurements Low-Gain for a wider temperature measurement range New High-Resolution Mode for tracking objects, people or animals with small temperature differences, ideal for security, emergency and rescue operations. Simultaneous Zoom of Visual and Infrared Cameras The zoom camera and infrared thermal camera support synchronized zooming, allowing operators to compare visible and thermally displayed details side by side, which speeds up object localization and increases efficiency.

Temperature range from -20° to 1600° C
Thanks to the installation of an infrared density filter, the thermal camera can measure temperatures up to 1600°C, which is 3x more than the previous generation. This is especially useful for firefighting and high-temperature cleaning.

Smart operations in various scenarios

Intelligent capture for better viewing
Smart Capture mode automatically evaluates ambient light brightness and dynamic range to ensure natural transitions between light and dark areas and rich details even in difficult lighting conditions.

Electronic fog reduction
The zoom camera uses a new electronic fog reduction function to improve image clarity in smog or high humidity conditions.

High environmental resistance

IP54 water and dust resistance

The Zenmuse H30 Series is protected against dust and water according to the IP54 standard, which allows safe operation even in harsh conditions.

Operating temperature from -20° to 50° C

Secure synchronization and data storage

Support for pre-recording
All cameras support pre-recording, saving up to 30 seconds before the official start of recording.

Transmission encryption and data security
Support for microSD card encryption and data transfer with AES-256 technology.

Cloud information synchronization
Support for connection with DJI FlightHub 2 for coordination of operations.

Compatibility
Matrix 300 RTK (with DJI RC Plus controller)
Matrix 350 RTK
