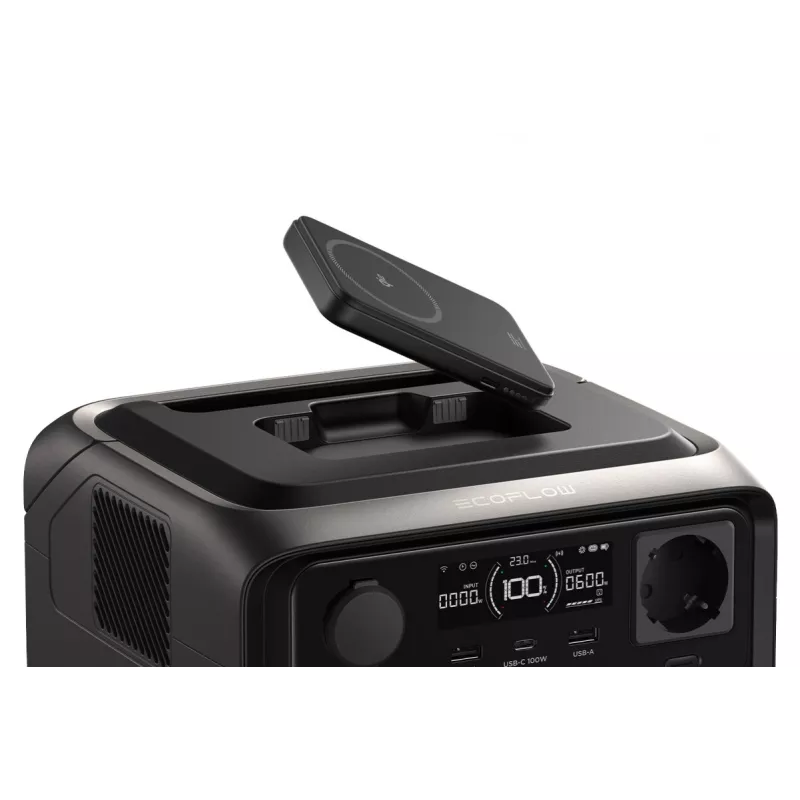

EcoFlow RIVER 3 Max Plus Wireless

The RIVER 3 Max Plus Wireless battery station combines the RIVER 3 Plus battery station, the EB600 additional battery and the RAPID magnetic power bank (10000 mAh). The station and the additional battery represent a combined capacity to power common appliances, while the separately usable power bank offers wireless and traditional powering of portable devices.

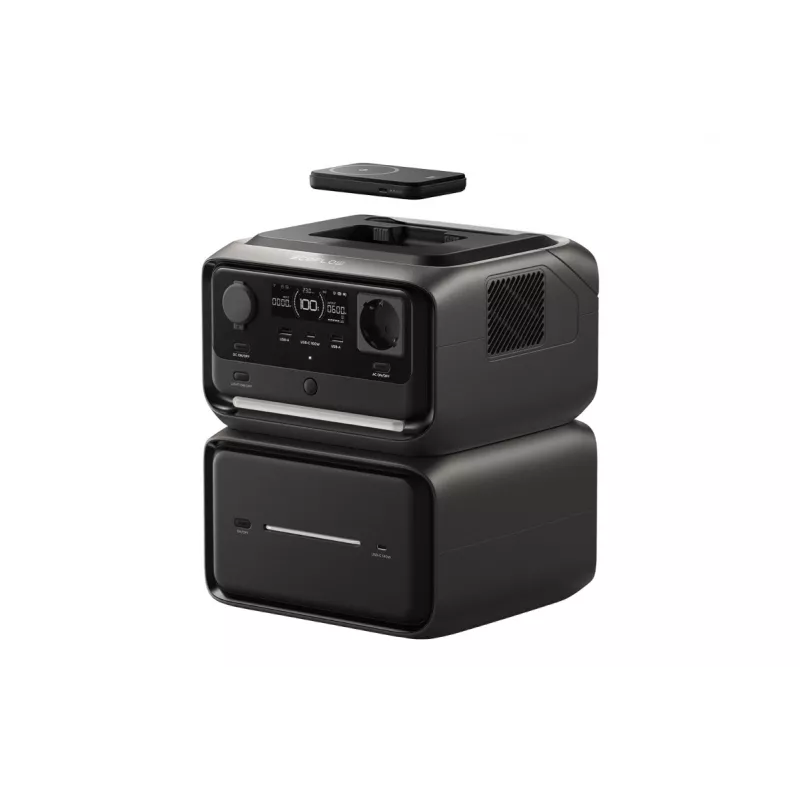

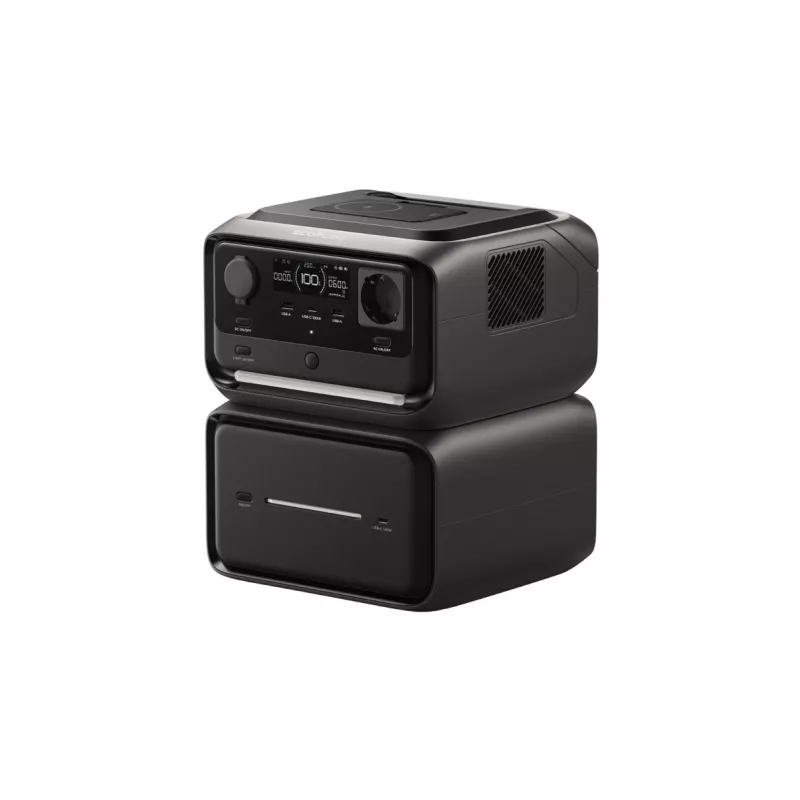

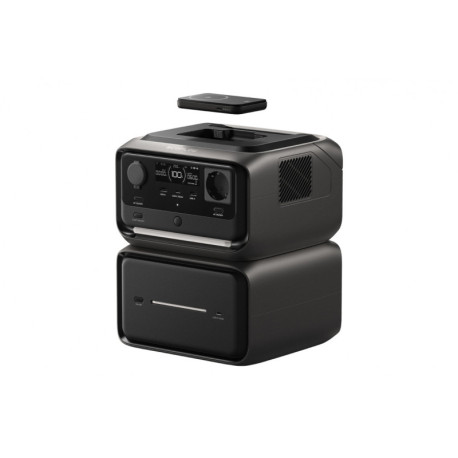

RIVER 3 Max Plus (RIVER 3 Plus + EB600)

It stands out for its high charging speed and quiet operation. Like the entire River 3 product line, it uses groundbreaking X-GaNPower technology, which minimizes heat loss and excels in high efficiency. RIVER 3 Max Plus Wireless brings significantly increased performance, a professional UPS with a switching speed of up to 10 ms and the possibility of expanding capacity thanks to an additional battery, which is part of the set. Charging is possible from the mains, a car socket or using solar panels.

Powering appliances

The ability to continuously power appliances up to 600 W. Thanks to the X-Boost function, it can also continuously power heaters up to 1200 W.

Professional UPS for uninterrupted power supply

The station also offers a backup power supply function for appliances with truly professional parameters. Its automatic switching speed of 10 ms in the event of a power outage allows the station to be used in a UPS system even for sensitive devices that require an uninterrupted power source.

Expandable station capacity

This package contains the highest possible variant - RIVER 3 Plus together with the additional Smart Extra Battery EB600 (572 Wh), which together provides a maximum capacity of 858 Wh.

Quiet operation

Thanks to X-GaNPower technology with improved heat dissipation, the station operates with less than 30 dB of noise at a distance of 45 cm, so its operation does not disturb the peace of day or night.

Phone control

Using the EcoFlow app, you can manage the operation of the RIVER 3 Max Plus from anywhere with an internet connection. The battery station supports both Wi-Fi and Bluetooth, so it can easily adapt to current conditions.

Technical specifications

(valid for the EU)

In general

Model:
RIVER 3 Max Plus: EF-RV-H02-1 + EF-RV-E02-1

Weight:
Approximately 10.5 kg

Dimensions (W × D × H):
Approximately 234 × 224 × 304 mm

Exit

AC wave form:
Pure sine wave

AC output (load only):
230 V ~ 50 Hz, 600 W max.

AC output (bypass mode):
220-240 V ~ 50/60 Hz, 600 W max.

USB-A output:
5V? 2.4 A, 12 W max. per port, 24 W max.

USB-C output:
Main battery:
PD3.0, QC3.0
5/9/12/15 V = 3 A max., 20 V = 5 A max., 100 W max.
Additional battery:
5/9/12/15 V = 3 A max., 20 V / 28 V = 5 A max., 140 W max.

DC output:
12.6 V - 10 A, 126 W max.

Input

AC input:
220-240 V ~ 50/60 Hz, 6 A max.

Solar input:
11-55 V - 13 A, 220 W max.

Car socket input:
11-55 V ? 8 A max., 220 W max.

Battery

Capacity:
858 Wh

Type:
LFP (LiFePO4)

Lifespan:
3,000 charge cycles to 80% capacity (SoH) at 25°C

Protection type:
Overvoltage protection, overload protection, overheating protection, short circuit protection, low temperature protection, undervoltage protection, overcurrent protection

Ambient temperature

Optimal operating temperature:
20°C to 30°C

Charging temperature:
0°C to 45°C

Discharge temperature:
–10°C to 45°C

Storage temperature:
–10°C to 45°C (optimal 20°C to 30°C)

Communications

Ways:
CAN, Wi-Fi, Bluetooth

Wi-Fi (2.4G):
Frequency 2412-2472 MHz / 2422-2462 MHz, maximum output power 17.5 dBm

Bluetooth:
Frequency 2402-2480 MHz, maximum output power 9.50 dBm

Other

Operating altitude:
Up to 2,000 m above sea level

.

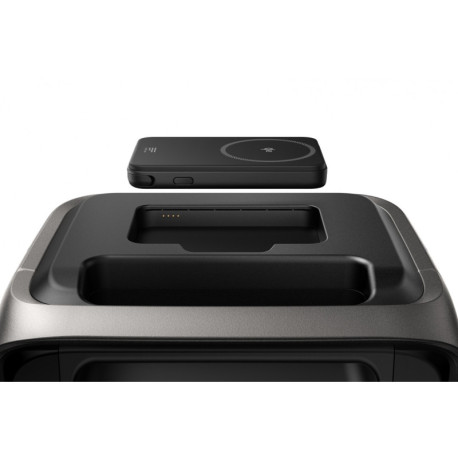

RAPID Powerbank (10000 mAh)

It brings truly cutting-edge technology to the segment of commonly used devices. A Qi2-compatible mobile phone can be charged wirelessly, and other devices can be charged using the built-in USB-C cable. The N52's strong magnets and anti-slip elements keep the power bank securely in place on the phone, so charging your phone doesn't have to restrict your movement.

Fast charging of the power bank and connected devices

The RAPID power bank uses patented EcoFlow X-Stream technology to ensure its extremely fast and safe 30W charging: From 0% to 70% in just 33 minutes. It also works with the PD3.0 protocol for lightning-fast charging of phones and laptops and can power two devices simultaneously if necessary. Thanks to its high output power and compatibility with multiple charging protocols, the EcoFlow RAPID power bank can easily power most portable devices, including MacBooks, iPads, Kindles, fitness bands and headphones.

Rapid enables ultra-fast charging up to 65 W. For example, you can charge a 13" MacBook Air for an additional 8 hours. The power bank includes a built-in 65 W cable, so you don't have to carry an extra cable. Qi2 wireless charging features 15 W charging. Enjoy easy 15 W wireless charging, which is twice as fast as 7.5 W Qi1 charging.

Smart digital display

Experience ultimate control with the power bank's dynamic display. With smart app control, you can view charging speed, output power, and add a personal touch by customizing the screen.

Built-in stand

This power bank also perfectly combines elegant design with practicality. This is also demonstrated by an interesting and practical detail: The strong magnetic attachment of the mobile phone using N52 magnets and the built-in stand allow it to be used as a stand that ensures the mobile phone is attached to the pad, in a horizontal or vertical position. It will then be ready for comfortable watching videos or reading messages, for example.

Intelligent application control

In addition to viewing more detailed charging information, you can also turn on "healthy charging mode" to protect the battery for longer life, and find the power bank with the built-in buzzer if you lose it.

Safety

Sensitive sensors monitor the power bank's temperature fifty times per second, preventing it and your phone from overheating.

Technical parameters

Model: EFPB503-10K

General specifications
Dimensions: 70 x 108 x 23.4 mm
Weight: 273g

Optimal environment
Charging temperature: 0°C to 40°C
Discharge temperature: -10°C to 40°C
Storage temperature: -20°C to 40°C
Altitude: ? 3,000 m above sea level

Battery information
Type: Secondary lithium-ion battery
Capacity: 10,000 mAh (2500 mAh x 4 pcs)
Lithium battery energy: 2,500mAh 15.48V / 38.7Wh
Rated capacity: 6,200 mAh 5 V ? 3 A

Input/output
USB-C/C cable (input/output): 5 V ? 3 A, 9 V ? 3 A, 12 V ? 3 A, 15 V ? 3 A, 20 V ? 3.25A
Wireless output: max. 15W
Total output: 60W

Communications
Bluetooth: Bluetooth 5.3, frequency 2400 - 2483.5 MHz, maximum power 0.78 dBm

Package contents

1. RIVER 3 Max Plus (= River 3 Plus + additional battery RIVER 3 Plus EB600)
2. EcoFlow RAPID Magnetic Power Bank (10000mAh)
3. AC charging cable
4. Charging cable for car socket
5. USB-B to USB-A UPS communication cable
6. User manual + warranty card
