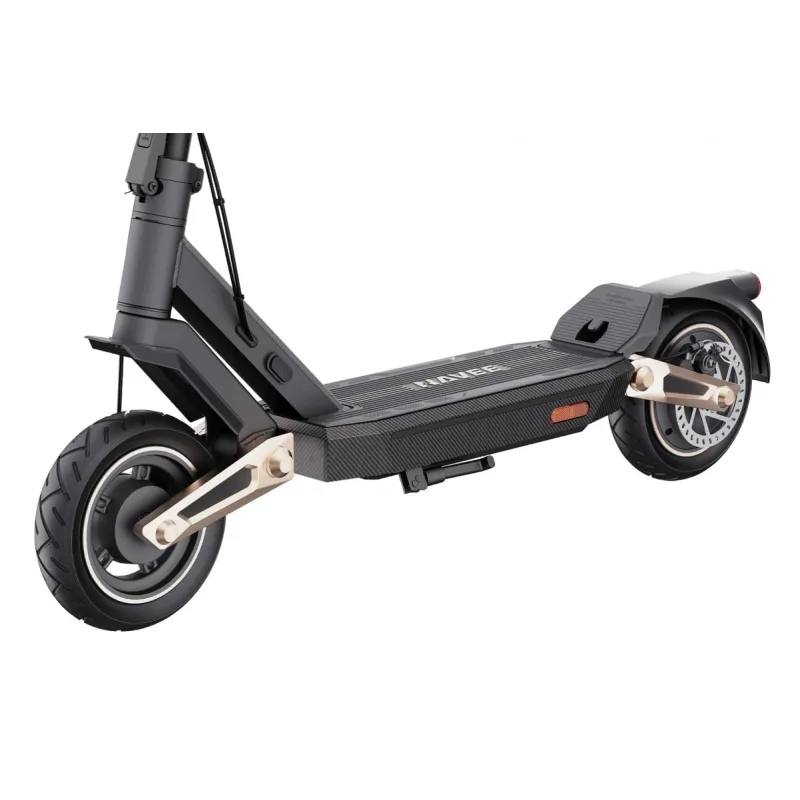

NAVEE ST3 electric scooter

The NAVEE ST3 electric scooter is a comfortable and reliable means of transportation for riding on paved surfaces. Thanks to its performance, long range, effective suspension system and practical folding design, it is the ideal choice for anyone looking for a fast, stable, ecological and comfortable way of transportation even in a city with a hillier profile.

Sufficient power for city traffic

The scooter is equipped with an electric motor with a rated power of 500 W, which ensures brisk acceleration and trouble-free riding even on slopes of up to 24%. Its maximum speed of 25 km/h complies with current regulations and is optimal for fast, yet safe movement on city roads.

Comfortable range

The integrated battery allows a range of approximately 60 km on a single charge (depending on riding style, rider weight and terrain), which more than meets the more demanding needs of regular urban traffic.

Comfortable ride

The front and rear hydraulic shock absorbers form a very effective suspension system that reliably absorbs vibrations from uneven surfaces. At the same time, the scooter is equipped with proven tubeless tires, which also absorb minor bumps well and contribute to stable movement. Thanks to the clear display, the user has operational information about the ride and the status of the scooter.

Safety first

High-quality brakes ensure that the scooter can safely slow down or stop even when driving fast. Of course, there is also front and rear lighting, which increases visibility at dusk or at night. The safety of this model is also increased by integrated direction indicators, which warn other road users of changes in direction.

Practical folding design

NAVEE ST3 is designed with an emphasis on practicality. Thanks to the quick folding mechanism, it can be folded in a few seconds and placed in the storage space of an apartment, office or car trunk.

Durable for everyday use

The scooter has splash protection (IPX5), so it can handle riding in bad weather or on wet roads. The high-quality materials used and the solid construction ensure a long service life even with regular use.

Technical specifications

General
Model:  NAVEE ST3 electric scooter
Dimensions (L × W × H): 1200 × 600 × 1305 [1], folded 1200 × 600 × 596 mm
Net weight: 24 kg
Rated motor power: 500 W
Range [1]: approx. 60 km
Max. speed: 25 km/h
Max. slope angle: approx. 24%
Max. load: 120 kg
Suitable surfaces: cement or asphalt roads with unevennesses lower than 1 cm or with cracks narrower than 3 cm
Operating temperature: -10 to 40 °C
Storage temperature: -20 to 45 °C
IP protection level: IPX5
Charging time: approx. 8 hours
Tires: 10" tubeless
Bluetooth: frequency band 2.4000–2.4835 GHz
Max. RF power: 8 dBm
Max. load of the suspension hook: 5 kg
Load range: 25–120 kg

Rider
Age: 16–50 years
Height: 120–200 cm

Battery
Model: T2326-BD4A
Nominal voltage: 46.8 VDC
Max. charging voltage: 54.6 VDC
Capacity: 477.36 Wh
Intelligent battery management system: protection against overheating, short circuit, overcurrent, overdischarge and overcharge
Charging temperature: 0 to 40 °C
Nominal capacity: 10.2 Ah

Battery charger
Model [3]: NBW54D601D3D
Output power: 70 W
Input: 100-240 V ~ 50/60 Hz
Max. output voltage: 54.6 VDC
Nominal output: 53.6 VDC; 1.3 A

[1] Vehicle height: From the ground to the highest part of the scooter.
[2] General range: Measured in still air and at a temperature of 25°C, scooter fully charged, riding at a steady speed of 15 km/h on a flat surface with a load of 75 kg.
[3] Only use the charger included in the package to charge the battery. The charger parameters can be found in the Technical Specifications section.

Package Contents

NAVEE ST3 Electric Scooter
User Manual
Battery Charger
4x Screw
Allen Key
