D956WP Waterproof (29kg 0.12s)

Hitec D series servos
The Hitec D series digital servos combine the ultra-fast response, accuracy and high resolution of 4096 steps of the HS-8xxx servo series with the programming capabilities of the HS-7xxx series servos. In fact, they far outperform existing servos thanks to a 32-bit processor and 12-bit ADC converter. In addition, they offer a "Wide Voltage" function that allows the use of power from batteries in a wide range of nominal voltages from 4.8 to 7.4 V.

32-bit MCU/12-bit ADC
The new Hitec 32-bit processor coupled with a 12-bit analog-to-digital converter converting the signal from the feedback potentiometer offers the best response yet achieved among RC model servos. You can also use the DPC-11 universal PC interface (applicable to all Hitec programmable servos) to tune your D series servos for maximum performance (deflection size, resolution, fail-safe, soft start, etc.) in a wide range of applications.

Wide Voltage
Hitec "Wide Voltage" technology supports all types of receiver batteries with a nominal voltage of 4.8-7.4 V. This means that you can directly power the servos, e.g. from a four- to six-cell NiMH or NiCd battery, two-cell LiFe, LiPo or Li-ion - of course, it must be remembered that the thrust and speed of the servo depend on the size of the supply voltage.

Output shaft with 25-tooth helix
The output shaft of the D-series servos has a 25-tooth helix as standard (among other things, it allows more accurate lever adjustment perpendicular to the longitudinal axis of the servo) and new levers with a corresponding helix are used (not compatible with older Hitec servos).

Soft start
The soft start protects the servo and the rudder control mechanism when the on-board electronics are switched on - after switching on the servo slowly moves to the neutral position - there is no sudden jerking.

Smart
A new control algorithm preventing self-oscillation of the servo during a "sharp" setting of the servo deadband, saving transmissions and reducing current consumption.

Programmable functions
With the help of the new DPC-11 programmer/USB interface, you can set a number of parameters on the D series servos to perfectly adapt the servo to your application. D series servos have consistently high resolution; with the help of the "deflection size (EPA)" function, you can set the servo deflection range up to 180° (with a control signal with pulses of 0.9-2.1 ms width). Programmable values are:

• reset to factory defaults
• deadband width (adjustable in 10 steps) >
• sense of rotation
• rotation speed
• neutral
• soft start
• deflection size (up to 180°)
• enable or disable fail-safe
• fail-safe emergency deflection setting
• overload protection (power limitation 0-50% in case of overload)

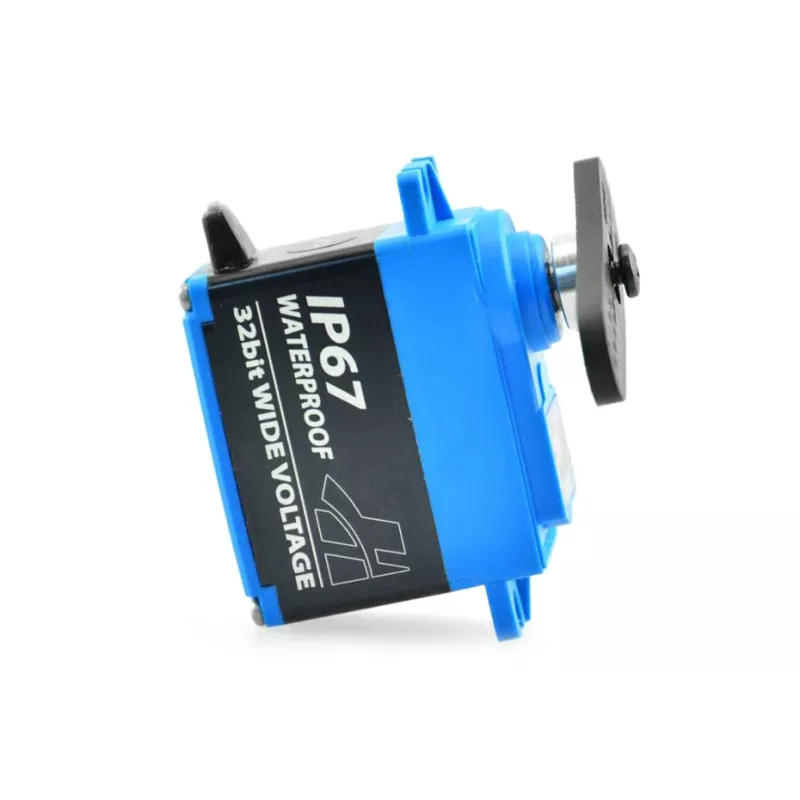

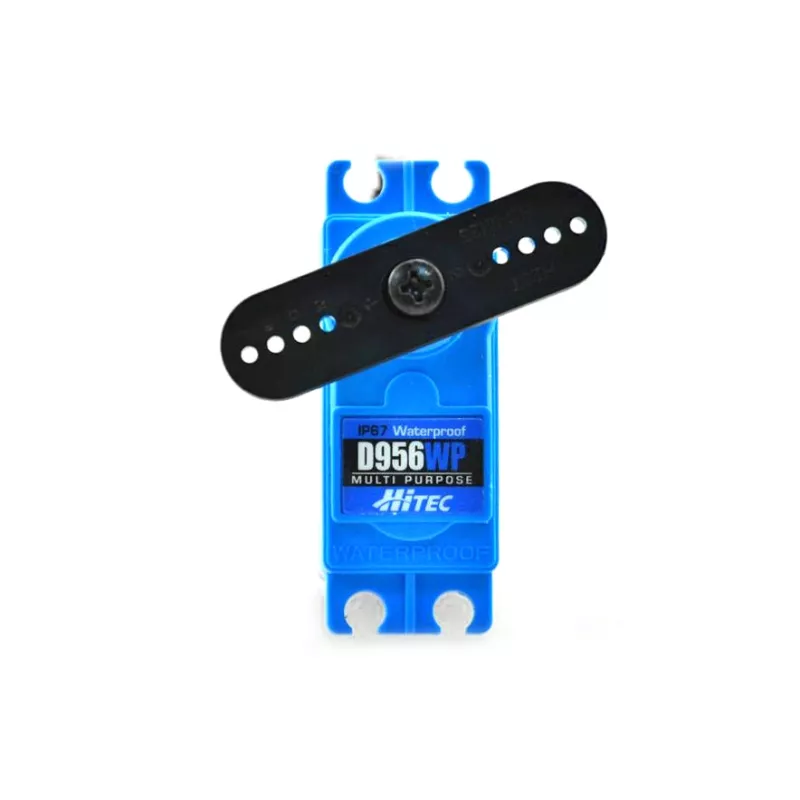

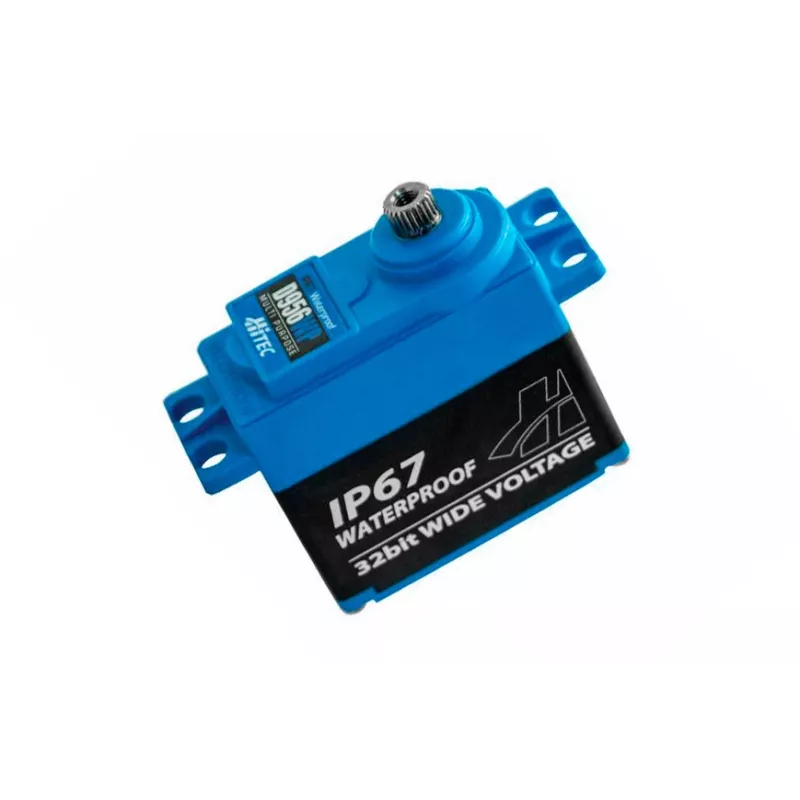

D956WP
Very strong waterproof and dustproof servo with steel gears with output shaft mounted on two ball bearings. Especially suitable for off-road RC cars 1:8 and 1:10, including trucks and rock crawlers, seaplanes, model ships and similar applications with high demands on tensile strength and long-term resistance to adverse environmental and environmental influences.

Waterproof and dustproof box (resistance according to International Protection Code IP-67 - completely prevents contact with dust, withstands immersion in water to a depth of 1 m for 30 min of test run) with a metal middle part to guarantee excellent cooling even under high load.

Thanks to the increased supply voltage (up to 7.4 V, 2s LiPo/LiFe), it enables a very simple implementation of on-board electronics (with corresponding 2.4 GHz receivers) when powered from a Li-poly or Li-Fe double cell without the need for additional stabilizers or regulators.
