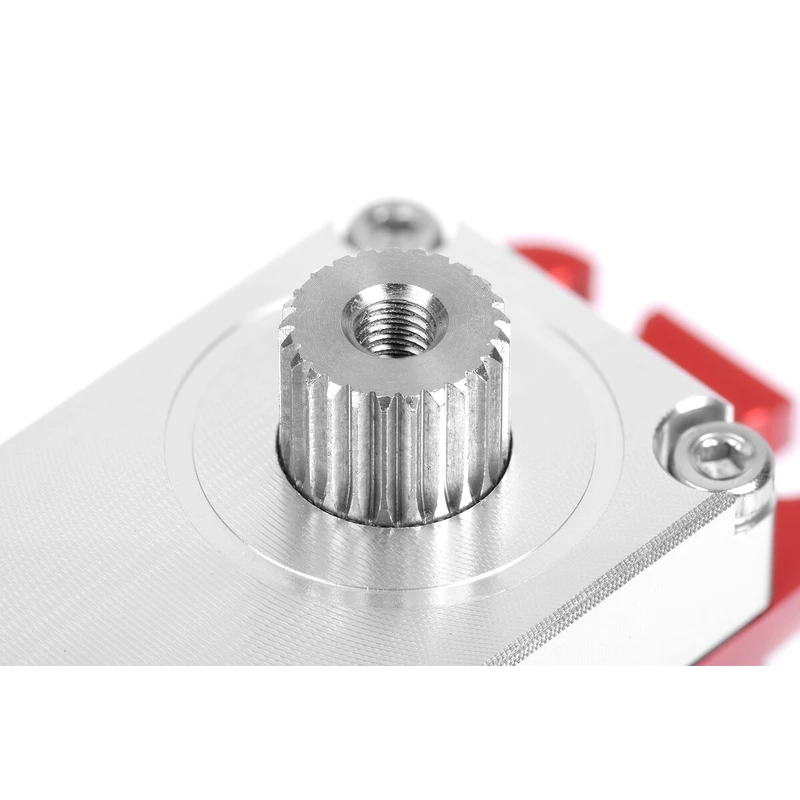

Super strong and super fast programmable digital standard servo with AC motor, metal gears and output shaft mounted on two ball bearings. Ideal for cyclic helicopters size 700-800. For perfect cooling even at very high loads, the servo is housed in an aluminum box with a ribbed middle part.
Increased supply voltage 6.0-7.4 V (nominal).
With the help of the USB programmer/interface for DSP-1 servos and the operating PC program, you can program a wide range of servo parameters:
Dead Band: The width of the dead band indicates the amount of change in the width of the control signal pulses at which the position of the output shaft/servo lever has not yet changed. MKS default setting = 1 µs or 1.1 µs
Lock: Setting the behavior of the servo if it does not receive a control signal - Maintains the position corresponding to the last received signal / The motor is free, the servo does not maintain any position.
Max. Duty (Max. engagement): The degree of engagement of the motor will be limited by this value - it limits the max. output of the servo motor.
Pulse Lower (Min. pulse width): The lower limit of the control pulse width and the corresponding servo deviation size will be limited by this value.
Neutral: Adjusts the width of the control pulses in the neutral/center position of the servo.
Pulse Upper (Max. pulse width): The upper limit of the control pulse width and the corresponding servo deviation size will be limited by this value.
Boost: Engine power when starting from rest. The larger the value, the more force the motor starts.
| Servo size | Standard |
| Servo type | Digital |
| Programmable | Yes |
| Thrust at 6.0 V [kg•cm] | 18.2 |
| Thrust at 7.4 V [kg•cm] | 22.5 |
| Thrust at 8.2 V [kg•cm] | 24.9 |
| Speed at 6.0 V [s/60°] | 0.1 |
| Speed at 7.4 V [s/60°] | 0.079 |
| Speed at 8.2 V [s/60°] | 0.071 |
| Control pulse width in neutral [µs] | 1520 |
| Repetition frequency [Hz] | 333 |
| Deadband [ms] | 0.0008 |
| Servo transmissions | Metal |
| Ball bearings | 2× |
| High voltage | Yes |
| Power supply [V] | 6 - 8.4 |
| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 38.5 |
| Weight [g] | 73 |
| Intended for | Airplanes, Helicopters |
