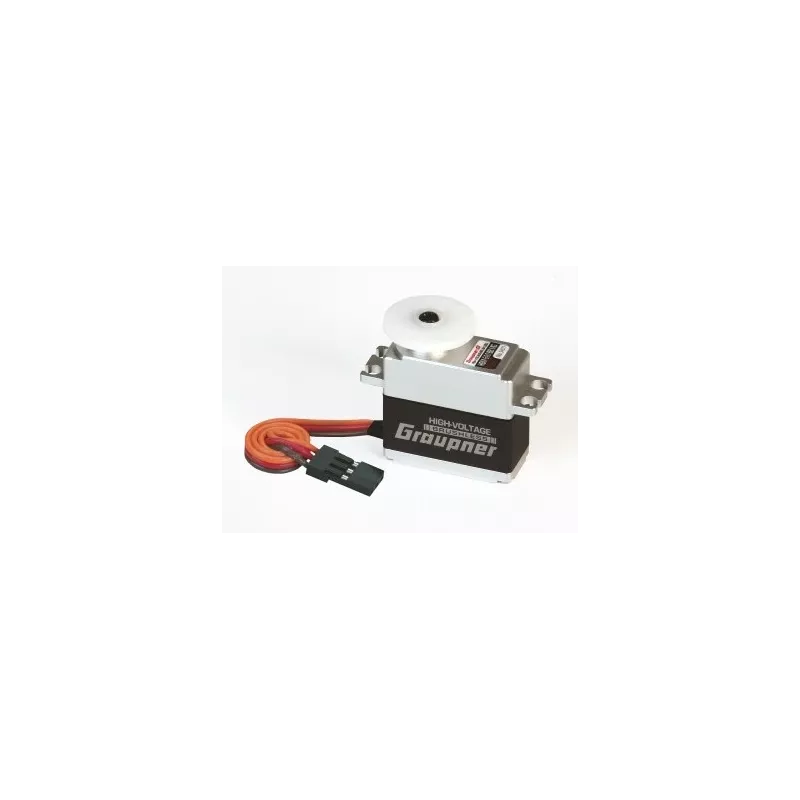

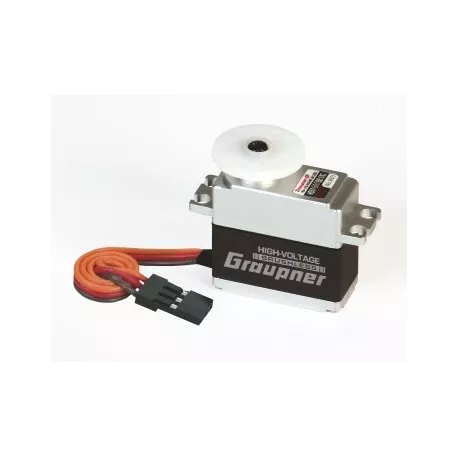

The new Hi-Volt digital, all-metal Hi-Volt servo-optimized 7.4V (2S Li-Pol) powered AC motor, metal gears, aluminum cooler and two ball bearings provide the best performance even under the most demanding conditions. The servos are fully programmable and have excellent heat dissipation thanks to the all-metal package and can also work with longer load times.
High-quality AC motors give the servo a long service life (avoiding carbon wear problems) and ensure fast and accurate start-up and high efficiency. The servos are designed for direct supply of Li-Pol with a 7.4V battery but can also be powered by 4-5 Nixx cells.
Servos are ideal for use in large aircraft models, helicopters, cars and boats.
Servo features:
| Servos size | Mini |
| Servo type | digital |
| Stroke at 4.8V [kg / cm] | 3 |
| Stroke at 6.0V [kg / cm] | 5 |
| Tension at 7.4V [kg / cm] | 6 |
| Speed \u200b\u200bat 4.8V [s / 60h.] | 0.12 |
| Speed \u200b\u200bat 6.0V [s / 60h.] | 0.1 |
| Speed \u200b\u200bat 7.4V [s / 60h.] | 0.06 |
| Servo gears | metal |
| Ball bearings | 2xBB |
| Highvoltage | Yes |
| Power [V] | 4.8 - 8.4 |
| Length [mm] | 35 |
| Width [mm] | 16 |
| Height [mm] | 34.5 |
| Weight [g] | 43 |
