for servos installed in RC Cars

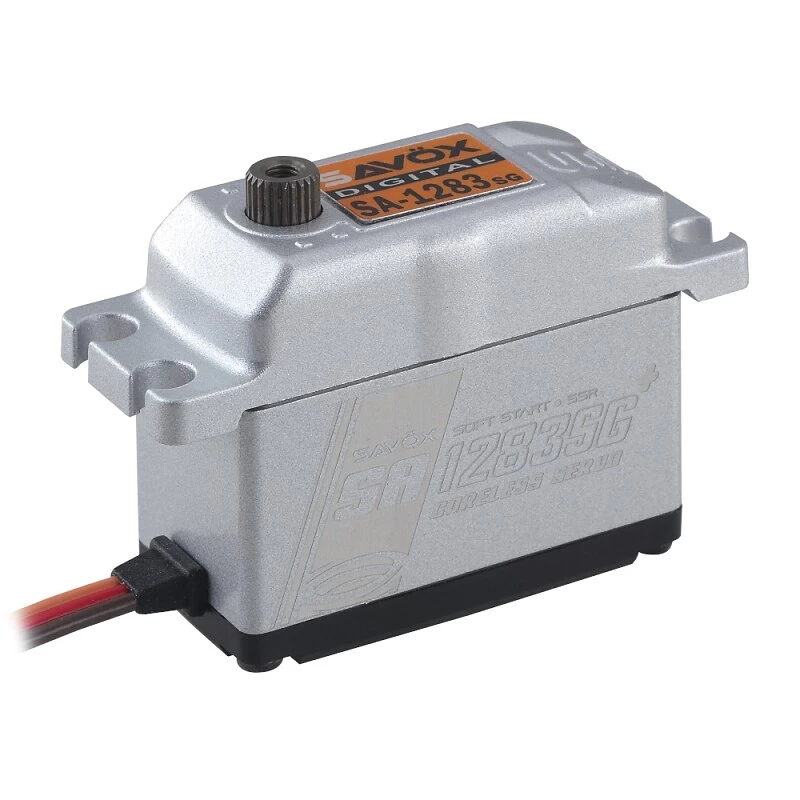

SA-1283SG+ Digital Servo (30kg-0.13s/60°)
SAVOX-SA1283SG
SAVOX
Digital standard servo with Coreless (coreless) motor and metal gears and casing, 2x ball bearing, 25.0/30.0kg at 4.8/6.0V and 0.16/0.13s at 4.8/6.0V, weight 80.0g, 40.8x20.2x37.4mm. Operating voltage 4.8 - 6.0V.
Express delivery
Large selection of carriers
Satisfaction guarantee
A completely redesigned servo with these features
- SSR compatible (enables ONLY in connection with SANWA RC kits type M-17, M-12S, M12RS, MT-44, MT-5 maximum transmission speed and precision)
- SOFT START : Soft start (protects the servo and the rudder control mechanism when the on-board electronics are switched on)
This is a Savox SA-1283SG+ digital servo that combines cutting-edge technology with super high 12-bit (4096) resolution. The servo is fitted with a Coreless motor and steel gears.
Function:
- Extremely strong steel gears ensure long life and durability.
- All-aluminum case
- Coreless motor for smooth operation and efficiency.
- Ideal for 1/8 and 1/10 Buggy. Truggy and Monster and others
- for large scale aircraft
Specifications:
- Torque/force at 4.8V - 25.0kg
- Torque/force at 6.0V - 30.0kg
- Speed @ 4.8V - 0.16s/60 degrees
- Speed @ 6.0V - 0.13s/60 degrees
- Dimensions L x W x H (mm): 40.3 x 20.2 x 36.4
- Operating voltage 4.8 - 6.0V
- Weight: 80g
Specifications
- Operating temperature: -10 ° - 50 °C
- Operating current (no load): 100 mA at 4.8 V, 120 mA at 6.0 V
- Continuous Current (Latching): 4800mA at 4.8V, 6000mA at 6.0V
- Quiescent current: 5mA @ 4.8V, 5mA @ 6.0V
- Wire length: 300 +/- 5 mm
- Output gear: 25 teeth
- Bearings: BB
- Operating range: 90° (1000 › 2000 µs)
- Neutral position: 1,500 µs
- Pulse width range: 950 › 2050 µs
- Maximum range: Appx 130 ° (900 › 2100 µs)
- Refresh rate: 333 Hz
- Engine type: Coreless engine
Professional servo lever for servos with 25-tooth output thousand (Hitec Dxxx / HS-8xxx / HSB-9xxx, Savöx and Futaba). Made of aluminum with M2 threads for the use of ball joints. Distance of holes from the servo axis: 32mm; 25.5mm.
