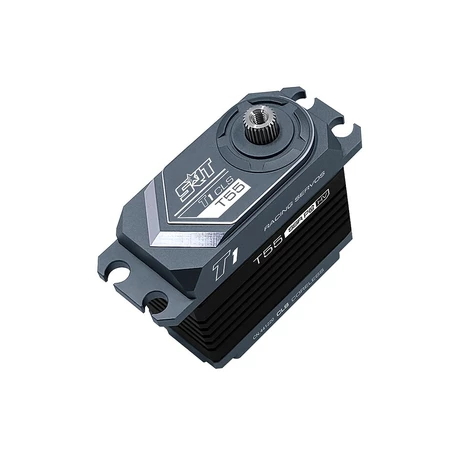

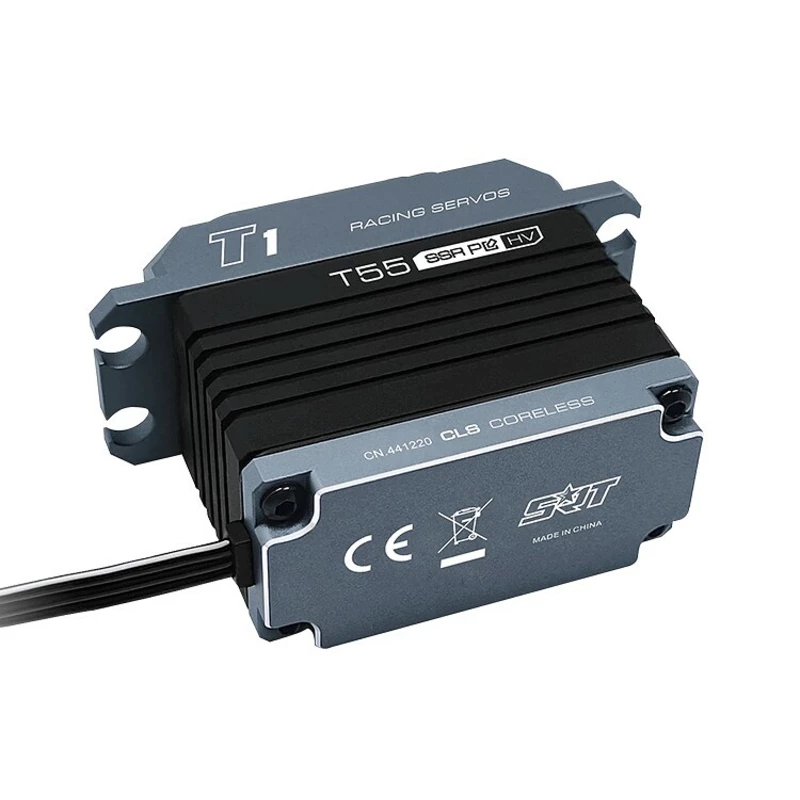

T55 HiVOLT CORELESS Digital servo (55 kg-0.19s/60°)

SRT-T55
SRT
Programmable digital HiVolt servo with Coreless motor including STEEL gears.
More info
In stock - main warehouse: 3 pcs
Dates of delivery
Your price with VAT
(MwSt. DE 19%)
83.31 €
Price without VAT
70.01 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    SRT T55

    A NEW generation of programmable CORELESS servos T 55HV specially designed for 1/8 On/Off-Road models with a reaction speed of up to 0.19s and 55kg/cm thrust/torque. The servo uses an all-aluminum housing to achieve optimal temperatures as well as rigidity, while the AC motor and steel gears ensure high performance and durability. The servo is equipped with a JR connector with a length of 300 mm in black color.

    Properties

    • Programmable thanks to the Programming Box
    • Ideal for 1/8 scale On-Off-Road models
    • Excellent torque
    • SSR compatible (enables ONLY in connection with SANWA RC kits type M-17, M-12S, M12RS, MT-44 maximum transmission speed and precision)
    • Incredible efficiency and low energy consumption
    • The standard size is ideal for RC models where you want to use a high quality servo
    • Aluminum/steel gear mix for higher precision and longer durability
    • CNC aluminum case for improved cooling
    • NMB two main bearings
    • 25 tooth output shaft
    • 2 µsec Dead-band

    SPECIFICATIONS

    • Type: Digital - HiVOLT
    • Bearing: 2BB
    • Box: CNC all-aluminum
    • Engine type: Coreless
    • Gearbox type: metal
    • Gearbox material: aluminum and steel
    • Control system: pulse width regulation
    • Operating frequency: 1520µs / 330hz
    • Operating voltage: DC 6 - 8.4V
    • Operating temperature range: -10 to +60 degrees
    • Operating speed (6.0V): 0.22s / 60 degrees without load
    • Operating speed (7.4V): 0.20s / 60 degrees without load
    • Operating speed (8.4V): 0.19s / 60 degrees without load
    • Thrust/Torque (6.0V): 43.0kg.cm
    • Thrust/Torque (7.4V): 50.0kg.cm
    • Thrust/Torque (8.4V): 55.0kg.cm
    • Potentiometer drive: direct drive
    • Dimensions: 40.7x20.5x39mm
    • Weight: 81.0g
    • Wire connector length: JR 300mm
