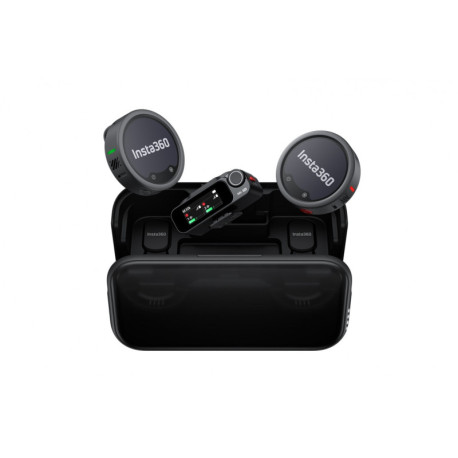

Insta360 Mic Pro (2 TX + 1 RX)

Insta360 Mic Pro is a modern wireless microphone kit designed for vloggers, streamers and professional production. Thanks to its compact size, easy operation, fast charging and high recording quality, it is an ideal solution for recording videos, interviews, podcasts or online broadcasts.

Professional sound quality and directional shooting modes

Insta360 Mic Pro is equipped with three built-in microphones that ensure professional sound quality. Intelligent algorithms enable directional sensing and adapt to any environment.

Two-level noise cancellation

A cutting-edge NPU chip with high-performance AI ensures the microphone records clear and natural sound in high quality.

Easy connection

Without the need for an additional receiver, the Mic Pro pairs with Insta360 cameras (X5, Ace Pro 2, GO Ultra, and more) and records audio in high quality 48 kHz. It can be paired with up to four cameras simultaneously and the recorded, perfectly synchronized audio can then be easily edited.

Automatic Gain Control

Automatically adjusts the volume level based on the intensity of the voice. No manual tuning is required, and there are two modes for different environments.

32-bit internal recording

The microphone can record audio internally using its built-in memory, and its 32-bit internal floating-point recording captures a wide dynamic range and reduces the risk of unwanted audio clipping.

30-hour battery life

Despite being powered by so many advanced features, it offers up to 30 hours of operation when using the charging base.

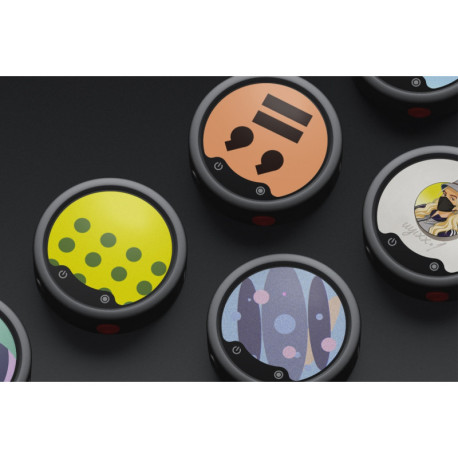

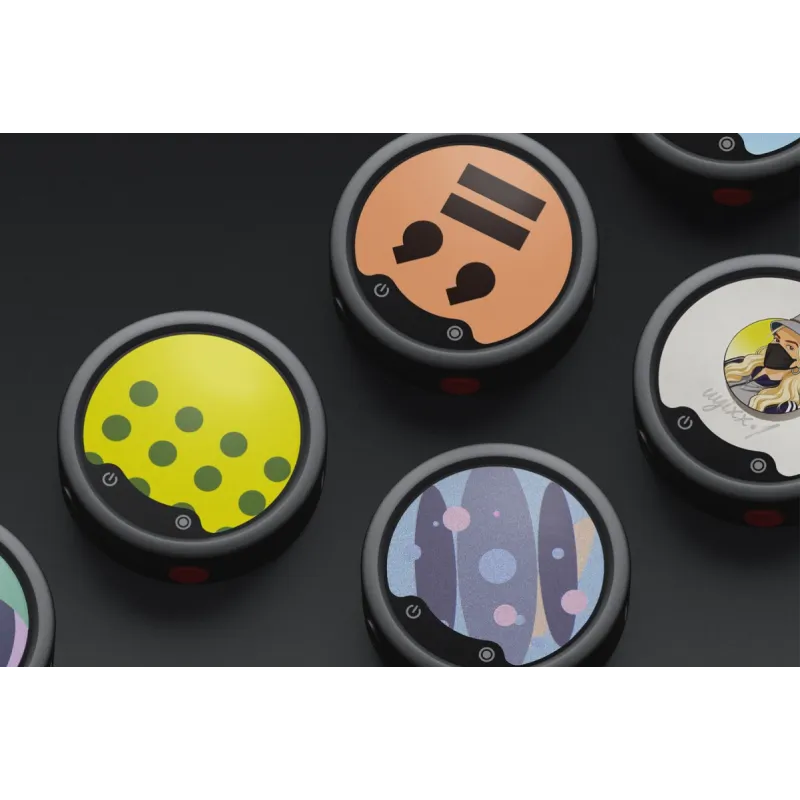

E-Ink display

Allows you to brand the microphone by uploading your own image, logo, or graphic via the Insta360 app.

Technical specifications

General
Directional pattern: Omnidirectional
Selectable pickup modes: Omnidirectional/Super-directional/Cardioid/Figure-8
Frequency range: Low cut 20 Hz–20 kHz, low cut 100 Hz–20 kHz
Microphone sensitivity: Microphone capsule -38 ± 1 dBV @ 1 kHz, 94 dB SPL
Signal-to-noise ratio (SNR): 72 dB (A-weighted)
Maximum sound pressure level (SPL): 130 dB SPL @ 10% THD
Sampling frequency: 48 kHz
Bit depth: 32-bit floating/24-bit (32-bit floating applies only to internal transmitter recordings)
Maximum input level (3.5 mm): -8 dBV
Equivalent noise: 22 dB (A-weighted)
Monitoring interface output power: maximum power 20 mW @ 1 kHz, 32 ?
Maximum transmission range: 400 m
(The 400-meter distance was measured when the transmitter was connected to the receiver in an open, unobstructed, and interference-free environment. When the transmitter was connected to the Insta360 X5 via Bluetooth in an open, unobstructed, and interference-free environment, the transmission range was approximately 100 meters, which may be affected by device orientation, camera shooting modes, and other factors)

Transmitter
Dimensions: 38 × 12.2 mm (diameter × height)
Weight: 19.7 g (without buckles)
Display: 6-color E-Ink display, size 1.22'', resolution: 240 × 208, PPI 197 (pixels per inch)
Wireless mode: GFSK 1 Mbps and 2 Mbps
Equivalent isotropic radiated power (EIRP) 2.400–2.4835 GHz: ? 20 dBm (FCC/CE/SRRC/MIC)
Wireless mode operating frequency: 2.400–2.4835 GHz
Bluetooth protocol: Bluetooth V5.4
Bluetooth operating frequency: 2.400–2.4835 GHz
Bluetooth transmitter power (EIRP): BLE: ? 20 dBm, BR/EDR: ? 20 dBm
Battery type: Li-ion
Battery capacity: 240 mAh, 0.94 Wh
Battery voltage: 3.89 V
Charging voltage: max. 5 V
Charging temperature: 0 °C to 45 °C
Operating temperature: -10 °C to 45 °C
Charging time: 100% approx. 1 h, 80% approx. 24 min (tested in lab environment with 5V /3A charger)
5-minute quick charge: provides 1.5 hours of operation.
(Tested in lab environment with transmitter battery below 50%, charged with 5V /3A charger. Noise cancellation and internal recording on transmitter were turned off. Short-range recording in interference-free environment, with transmitter connected to receiver and receiver connected to camera using 3.5mm camera audio cable)
Operating time: 10 h
(Measured with Insta360 Mic Pro (2 TX + 1 RX), with noise reduction off and internal recording in interference-free conditions, with both transmitters connected to the receiver and the receiver connected to the camera using a 3.5mm audio cable)
Built-in memory: 32 GB
Available internal recording time 24 bits (mono, internal): 60 h
Available internal recording time 24 bits (stereo, internal): 29.7 h
Available internal recording time 32 bits (mono, internal): 44.8 h
Available internal recording time 32 bits (stereo, internal): 22.2 h

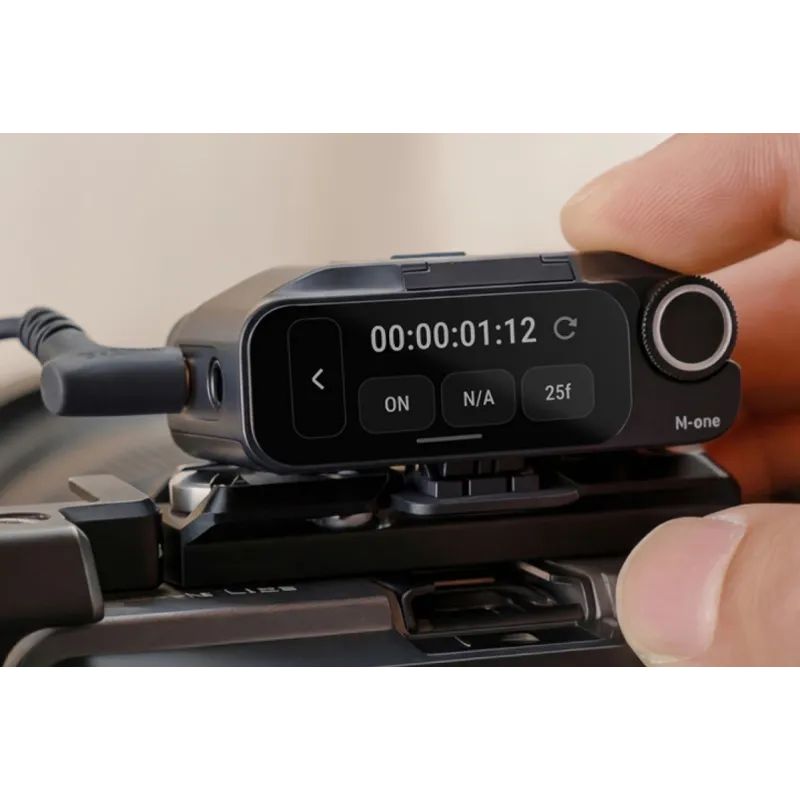

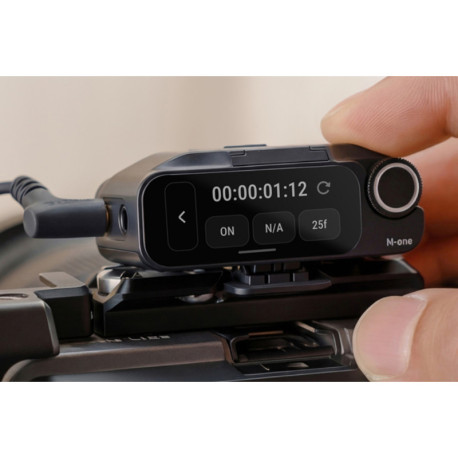

Receiver
Dimensions: 55.80 × 27.65 × 21.00 mm (D × W × H)
Weight: 29.8 g
Wireless mode: GFSK 1 Mbps and 2 Mbps
Equivalent isotropic radiated power (EIRP): 2.400 GHz–2.4835 GHz ? 20 dBm (FCC/CE/SRRC/MIC)
Operating frequency: 2.400 GHz–2.4835 GHz
Bluetooth protocol: Bluetooth V5.4
Bluetooth operating frequency: 2.400 GHz–2.4835 GHz
Bluetooth transmitter power (EIRP) BLE: ? 20 dBm
Battery type: Li-ion
Battery capacity: 410 mAh, 1.60 Wh
Battery voltage: 3.89 V
Charging voltage: max. 5 V
Charging temperature: 0 °C to 45 °C
Operating temperature: -10 °C to 45 °C
Charging time: 100% in approx. 75 min, 80% in approx. 27 min (tested in a laboratory environment with a 5 V/3 A charger)
5-minute quick charge: provides 1.5 hours of operation.
(Tested in a lab environment with the receiver battery below 50%, charged with a 5V/3A charger. Noise cancellation and internal recording on the transmitter are turned off. Short-range recording in an interference-free environment, with the transmitter connected to the receiver and the receiver connected to the camera using a 3.5mm camera audio cable.)
Operating time: 11 h
(Measured with Insta360 Mic Pro (2 TX + 1 RX), with noise cancellation and internal recording turned off in interference-free conditions, with both transmitters connected to the receiver and the receiver connected to the camera using a 3.5mm audio cable.)

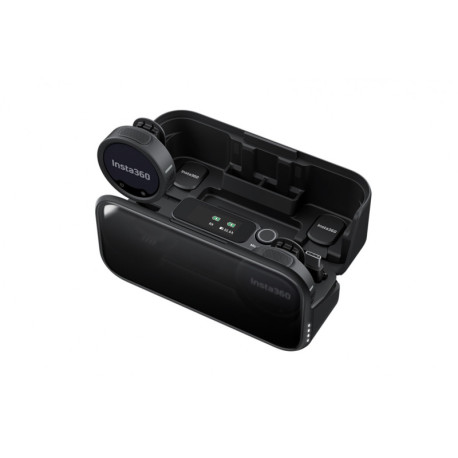

Charging Base
Dimensions: 122.00 × 61.90 × 42.20 mm (L × W × H)
Weight: 174 g (charging case only, no accessories included)
Battery type: Li-ion
Battery capacity: 2815 mAh, 10.951 Wh
Battery voltage: 3.89 V
Charging voltage: max. 5 V
Charging temperature: 0 °C to 45 °C
Operating temperature: -10 °C to 45 °C
Operating time: 30 h
(Measured with Insta360 Mic Pro (2 TX + 1 RX), with fully charged charging case, noise cancellation off, and internal recording on transmitters. Short-distance recording in an interference-free environment, with both transmitters connected to the receiver and the camera connected via a 3.5mm audio cable.)
Charging time: approx. 2 h
Number of charging cycles for TX and RX: two transmitters and one receiver simultaneously charge a fully charged charging case to 100% approximately 2 times.

Package contents

1. Transmitter 2x
2. Receiver 1x
3. Charging base 1x
4. Mobile phone adapter (USB-C) 1x
5. Magnetic mount 2x
6. Clip 2x
7. Protective cover 2x
8. Case 1x
9. 3.5mm audio cable for camera 1x
10. USB-C cable 1x
11. Quick start guide 1x
12. Safety instructions 1x
13. Warranty card 1x
