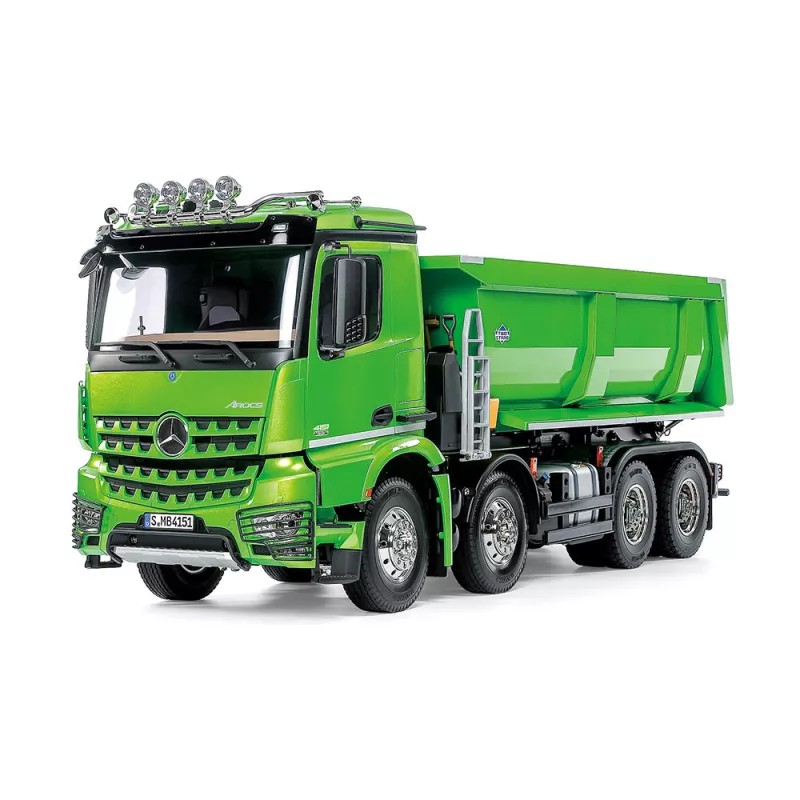

Tamiya 47523 Arocs 4151 Tipper Candy Green 1/14

The Arocs series is a heavy-duty model range introduced in 2013 by the world's leading manufacturer

trucks, Daimler Truck AG (Germany). This RC model kit reproduces a dump truck

Arocs 4151 8x4 (total vehicle weight: 41 t), which is powered by a 12.8-liter turbocharged inline six-cylinder

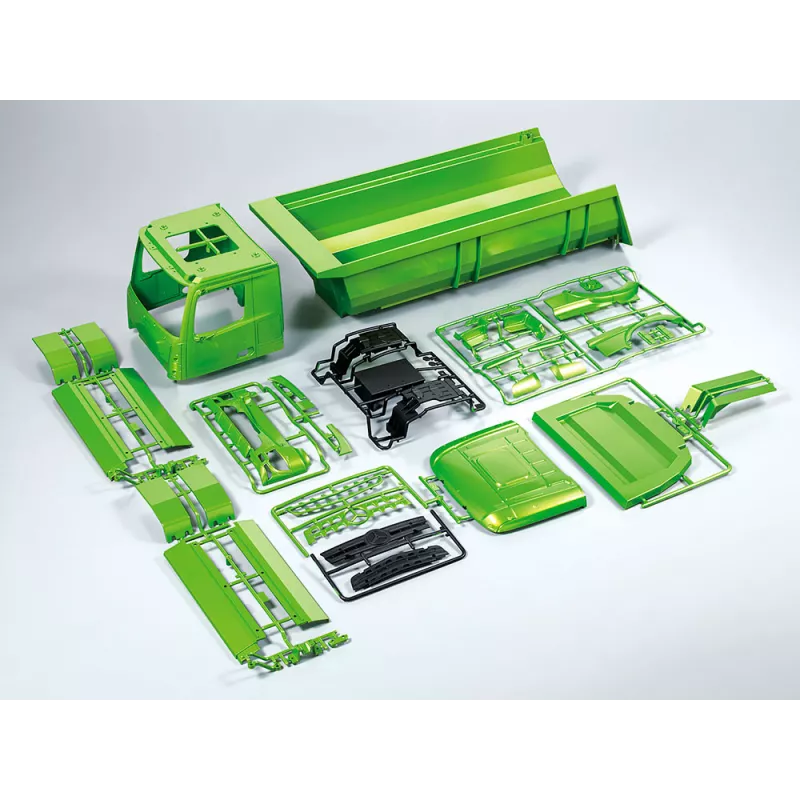

with a power of 510 horsepower. It has a highly detailed body and cabin, which are pre-painted in Candy Lime Green for your convenience

and finished with a gloss urethane topcoat. Air tanks and other parts are pre-painted with a semi-gloss black.

The distinctive front grille in the shape of a shovel tooth is a separate piece. The roof has a front strip with lights and is also shown

interior of the cab. Behind the cab is a realistic one-piece plastic body reinforced with a metal frame, while the ladder frame

The chassis has aluminum side channels with resin crossmembers. The two front axles are controlled by a single servo and the front axle power

The 35T engine is transmitted to the rear axles via a drive shaft, with each rear axle having a built-in differential

for smooth cornering. Highly realistic suspension uses metal leaf springs and friction dampers. Tandem front axles

The die-cast metal axles have separate leaf springs and the reinforced resin rear axles are designed as pivot axles.

The buildable 3-speed gearbox allows shifting using a separately available 4-channel transmitter.

Specifications

?Length: 667 mm, width: 196 mm, height: 268 mm, weight (without optional parts): approximately 5.1 kg

?Wheelbase: 133 mm + 215 mm + 103 mm ?Track: 156 mm (front), 138 mm (rear, dual tires)

?Chassis: Aluminum and polycarbonate ladder frame ?Front/rear rigid leaf spring suspension

?Tilt angle (front/rear): 0°/0° ?Yaw angle (front/rear): 0° ?Toe-in angle: 0° (front and rear)

?Aluminum shock absorber dummies (front and rear) ?Double rear axle drive ?3-speed gearbox (shifting via transmitter)

?Gear ratio: (1st gear) 32.49:1, (2nd gear) 17.76:1, (3rd gear) 10.66:1 ?3 bevel differential gears

?TR Mighty Tuned Motor (35T) ?Tyre width/diameter: 22mm/83mm (front); 22mm/84mm (rear)

Separately required items

?R/C system with ESC (MFC-03 or TBLE-02S recommended) ?R6/AA/UM3 batteries for transmitter ?Battery and charger

Start tipping!

This separately sold kit contains parts that allow you to control the bed of a Tamiya 1/14 R/C dump truck.

using a separately sold transmitter. It includes a gear motor, shaft, connectors and the ACU-01 unit and allows

lift the body with a load of up to 10 kg. It is equipped with a clutch that prevents damage due to overload.

Realistic lights, sounds and vibrations

Tamiya multi-function control units (not included, sold separately) offer lights, sounds and vibrations,

that accompany your RC truck driving experience. The engine sounds were digitally recorded from a real truck and, along with the air

horn, gearshift and many other realistic sounds make you feel like you are driving a real vehicle! Headlights, brake lights,

fog lights, hazard warning lights and turn signals are also at your fingertips. Please note that the taillights require longer

cables (sold separately, items 56549, 56550 and 56551).
